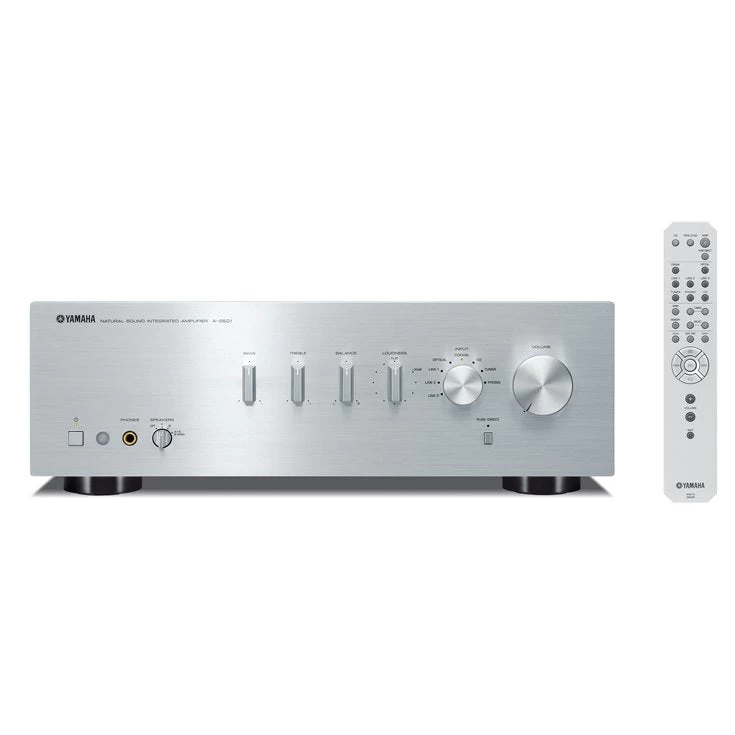

Yamaha A-S501 Integrated Stereo Amplifier

Yamaha, with a long history of over 125 years as a musical instrument maker, also has a high reputation for HiFi components. The A-S501 is created by taking advantage of this rich experience and high technological expertise. Based on the concept of “Natural Sound”, for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound.

The Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.

FEATURES

• 85 W x 2-ch (20 Hz – 20 kHz)
• Digital audio inputs for TV and Blu-ray Disc™ player
• Pure Direct mode for greater sound purity
• ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
• I/O (input to output) direct symmetrical design
• ART (Anti-Resonance and Tough) Base
• Custom-made power transformer / 12,000 µF block capacitors / extruded aluminum heat sinks
• Gold-plated speaker terminals and RCA terminals
• Simple yet sophisticated design (aluminum front panel)
• Continuously Variable Loudness Control

TECHNICAL SPECS

• Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz): 85 W + 85 W (0.019% THD)
• High Dynamic Power/Channel (8/6/4/2 ohms): 130 / 150 / 185 / 220 W
• Frequency Response: 10 Hz -100 kHz +/- 1.0 dB
• Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz): 0.019% (50 W / 8 ohms)
• Signal-to-Noise Ratio (CD): 99 dB (input shorted, 200 mV)
• Damping Factor: 240
• Digital Input: Yes (optical / coaxial)
• Audio In / Out: 8 / 2
• Subwoofer Out: Yes
• Pure Direct: Yes
• ToP-ART: Yes
• DC out: Yes
• Standby Power Consumption: 0.5 W
• Power Management (Auto Power Standby): Yes
• Dimensions (W x H x D): 17-1/8″ x 6″ x 15-1/4″
• Weight: 22.7 lbs.
