UNPARALLELED MUSICAL EXPRESSION
The Yamaha A-S3200 pays homage to unparalleled musical history while embodying the latest in Hi-Fi innovation.
An expressive, dynamic instrument that effortlessly delivers music with all its emotion.
In the unyielding pursuit of innovation and musicality, Yamaha is proud to present its flagship integrated amplifier – the A-S3200. Meticulously designed from the ground up, the A-S3200 realizes the ambitions of the artist and establishes a new benchmark in high-fidelity audio. Fully balanced circuitry to deliver impressively low signal-to-noise ratio and improved channel separation

Emotion
Unparalleled musical expression
Designed from the ground up with high-end components for pure audio enjoyment

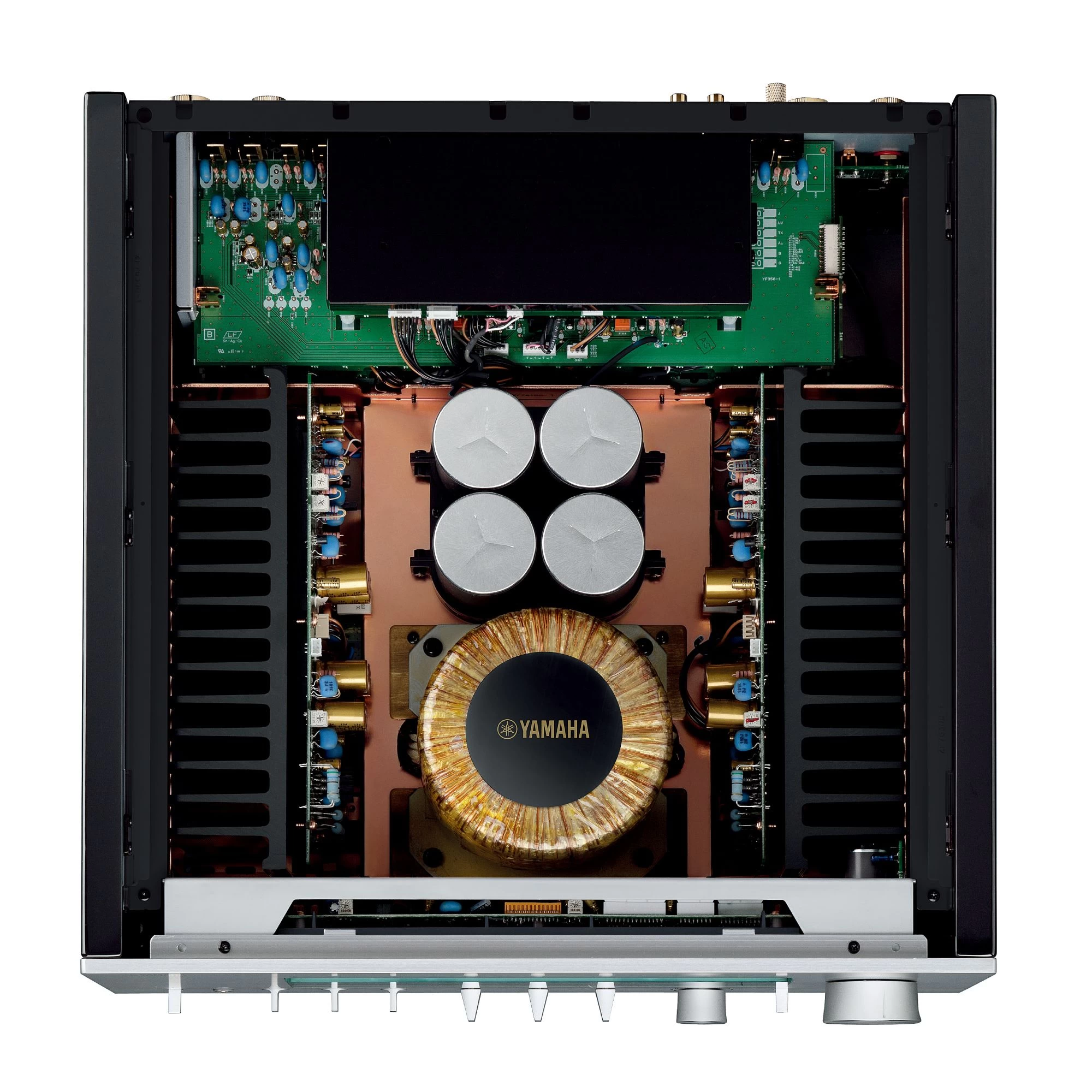

Large toroidal transformer
Openness
Fully balanced circuitry to deliver impressively low signal-to-noise ratio and improved channel separation
Brass screws for block capacitors
Groove
Exquisite level meters visually present the dynamics and pulse of the music
Mechanical Ground Concept maximizes rigidity and reduces unwanted vibration
High-quality PPS capacitors for unmatched musicality

FEATURES

Large toroidal transformer in the pursuit of pure musicality
Mechanical Ground Concept maximizes rigidity and reduces unwanted vibration
High-quality PPS capacitors for delivering an authentically musical sound
Exquisite level meters visually present the dynamics and pulse of the music
Obsessive, meticulous switch design
Heavy-duty brass feet with spikes or scratch-resistant base
Original speaker terminals cut from pure brass with highly secure connection

TECHNICAL SPECS

Rated Output Power: [20 Hz-20 kHz, 0.07 %THD] 100 W ＋ 100 W (8 ohms), 150 W ＋ 150 W (4 ohms）
High Dynamic Power/Channel (8/6/4/2 ohms): High Dynamic Power/Channel (8/6/4/2 ohms) 120/150/200/300 W
Damping Factor: ≧ 250 (1 kHz, 8 ohms)
Frequency Response: +0 /-3 dB (5 Hz-100 kHz) , ＋0 / -0.3 dB (20 Hz-20 kHz)
RIAA Equalization Deviation: ＋/-0.5 dB (PHONO (MM/MC))
Total Harmonic Distortion (20Hz to 20kHz): PHONO MC→LINE2 OUT: 0.02 % (1.2 Vrms), PHONO→LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL1,2 →SP OUT: 0.035 % (50 W/8 ohms)
Signal-to-Noise Ratio: PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL1,2: 114 dB
Input Sensitivity: [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL1,2: 200 mVrms/100 kohms
Transformer
Transformer: 623 VA (Toroidal)
Dimensions (W x H x D): 17-1/8″ x 7-1/8″ x 18-1/4″
Weight: 54.5 lbs
