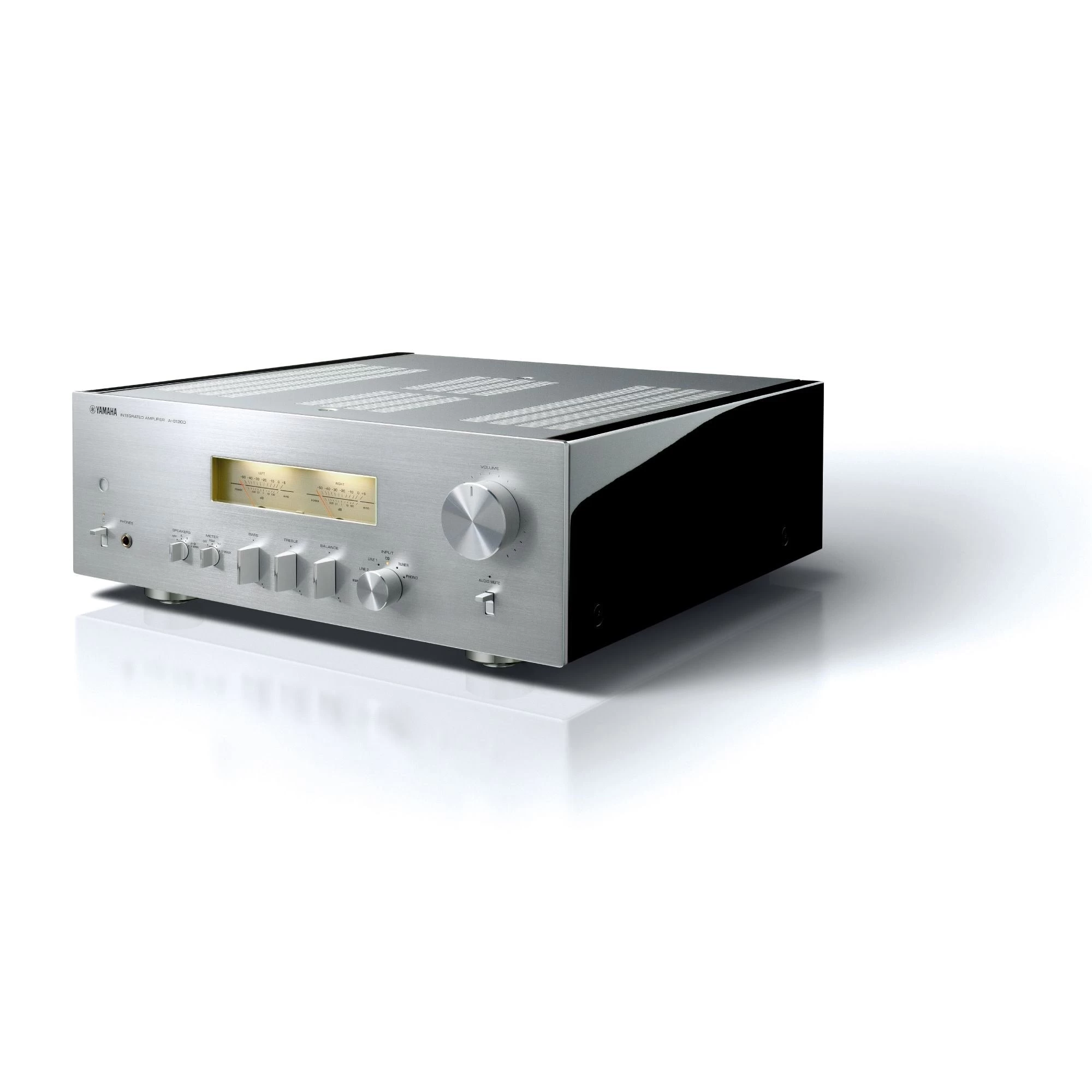

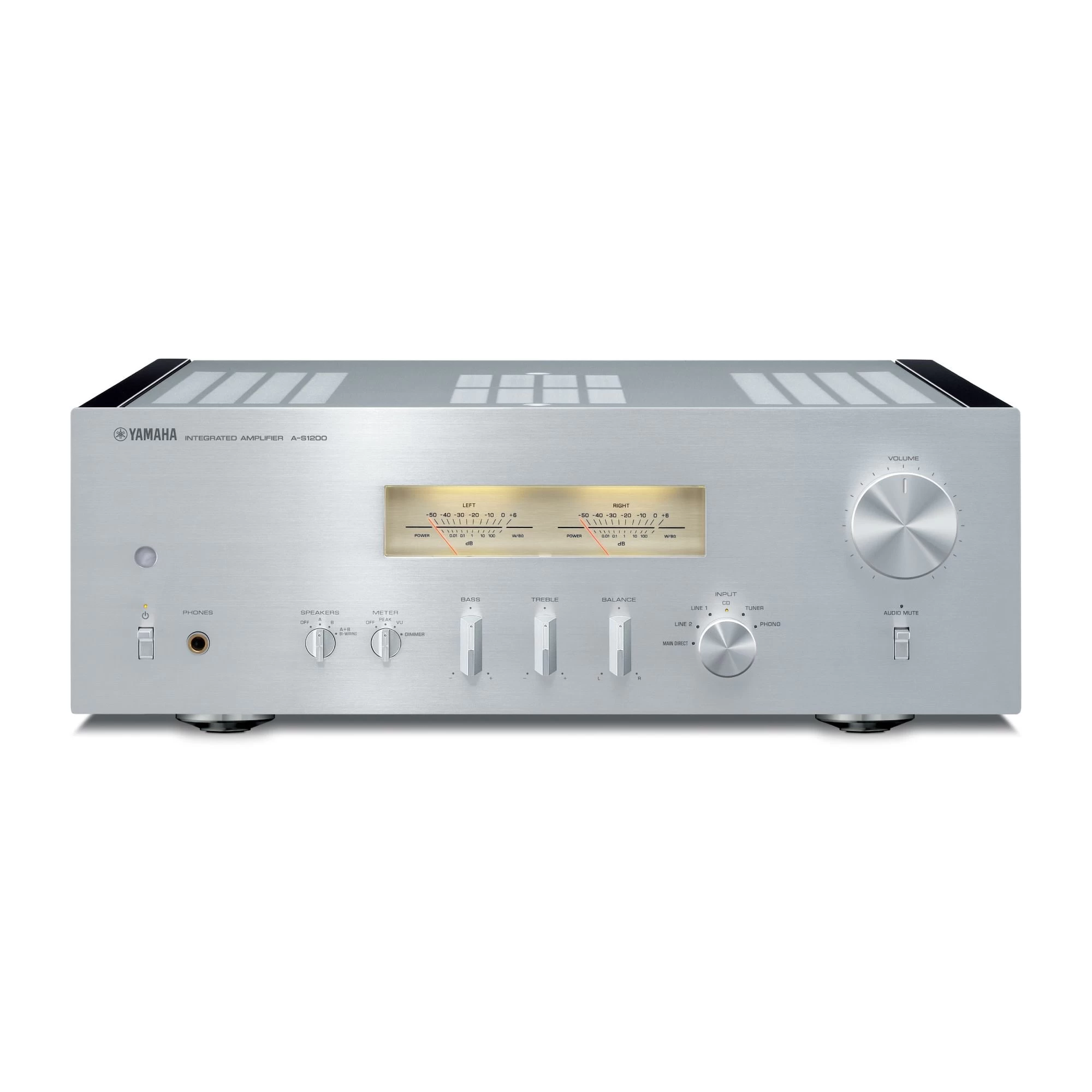

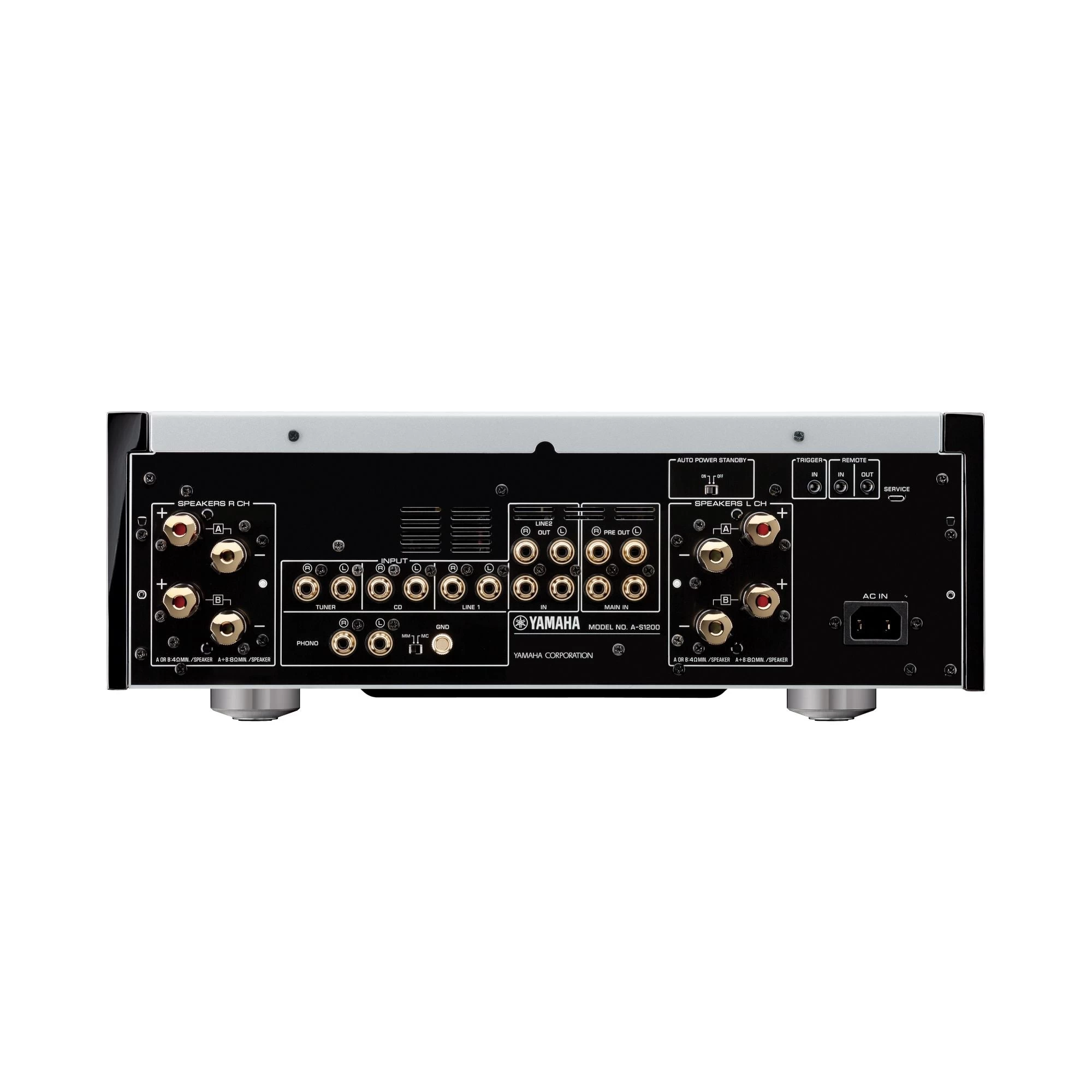

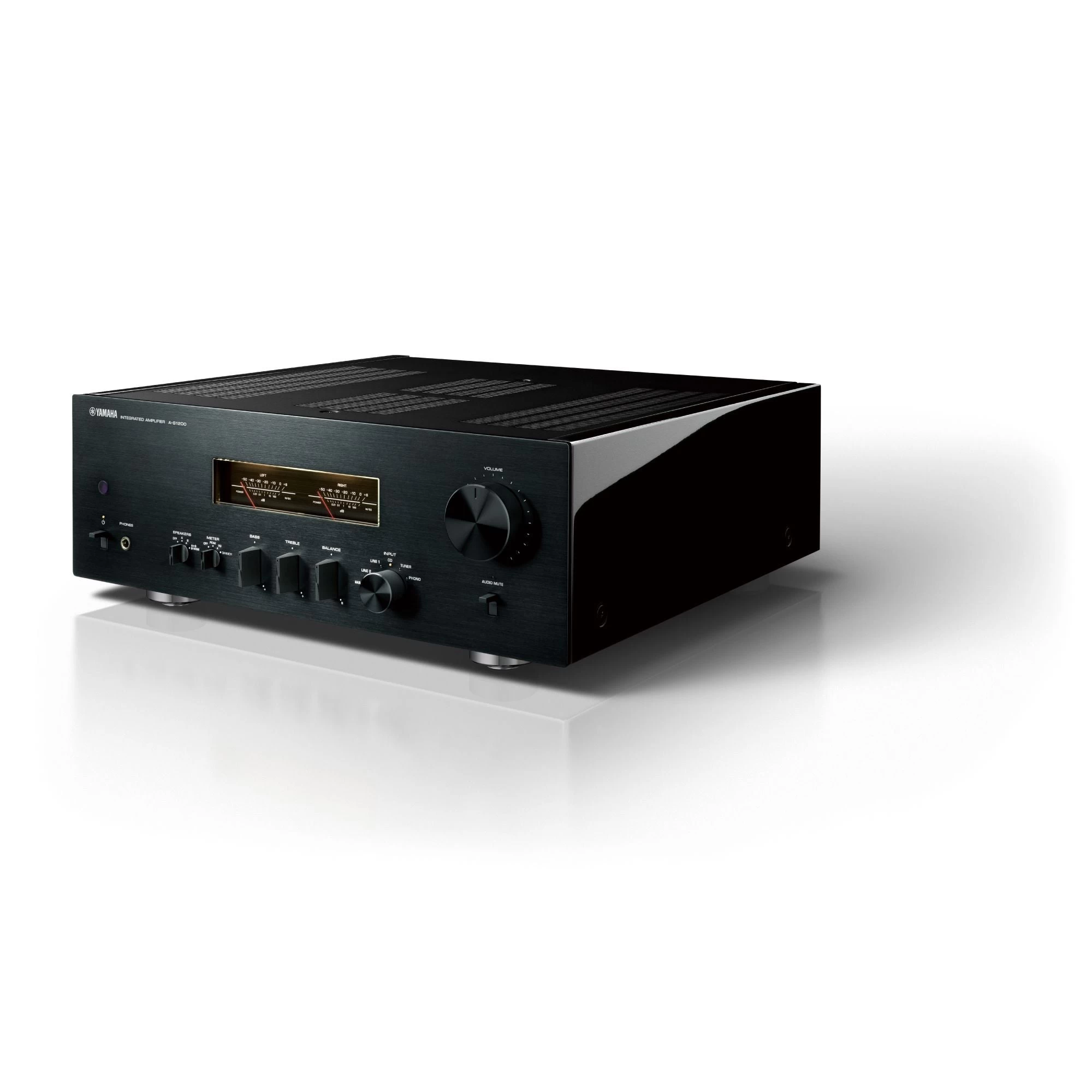

Yamaha A-S1200 Integrated Amplifier

Acknowledging the golden era of Hi-Fi with its beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.

FEATURES

• High-quality components delivering exceptional musical expression
• Toroidal power transformer with enormous energy for a pure musical sound
• Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
• Floating balanced power amplifier

• Mechanical ground concept maximizes rigidity for expressive and rhythmic bass

TECHNICAL SPECS

• Rated Output Power: [20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)
• High Dynamic Power/Channel (8/6/4/2 ohms): ohms) 105/135/190/220 W
• Damping Factor: ≧ 250 (1 kHz, 8 ohms)
• Frequency Response: +0 / -3 dB (5Hz-100kHz) , ＋0 / -0.3 dB (20 Hz-20 kHz)
• RIAA Equalization Deviation: ＋/-0.5 dB (PHONO (MM/MC))
• Total Harmonic Distortion (20Hz to 20kHz): PHONO MC→LINE2 OUT: 0.02% (1.2 Vrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.→SP OUT: 0.035% (50 W/8 ohms）
• Signal-to-Noise Ratio: PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB
• Input Sensitivity: [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms
• Transformer: 625VA (Toroidal)
• Dimensions (W x H x D): 17-1/8″ x 6-1/8″ x 18-1/4″
• Weight: 48.5 lbs
