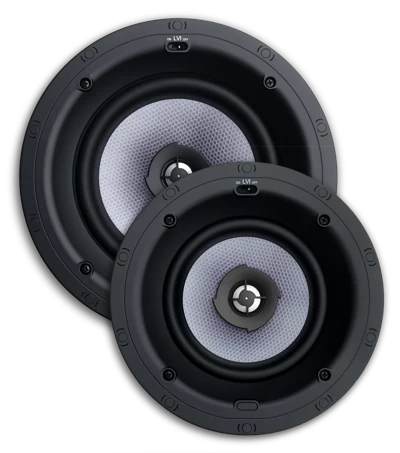

The refinement of the IC62 and IC82 express Totem’s mission is to develop loudspeakers capable of producing an involving performance that is true to the artist’s intention. They energize the area in a manner that faithfully recreates the intimate moment and space of the original recording, yet disappears into the environment.

Exclusive MHEX Phenolic Honeycomb Woven Hybrid woofers in cast baskets synergize perfectly with customized ceramic dome tweeters to provide our characteristic phase linearity and unmatched realism. Dynamics are maintained at any listening level for all acoustic preferences or applications, from a high-powered home theater to low-level ambient music.

Kin Architectural models have stainless steel, magnetic grilles, and hardware so they’re weather resistant and ready for the outdoors under covered areas and soffits with the use of the optional Acoustic Back Can.

Discover your Kin Architectural and expand your musical experiences.

FEATURES

High-torque, Nylon dogs which can accommodate double layers of drywall
75-degree dispersion
Unified framework shield
Paintable neodymium-activated stainless-steel grills
Stainless steel, weather-resistant hardware
Shallow profile
MHEX Phenolic Honeycomb Woven Hybrid woofer
Cast baskets and oversized components
1” Ceramic coated aluminum dome tweeters
Low Volume Intelligibility equalization
Gold-plated terminals

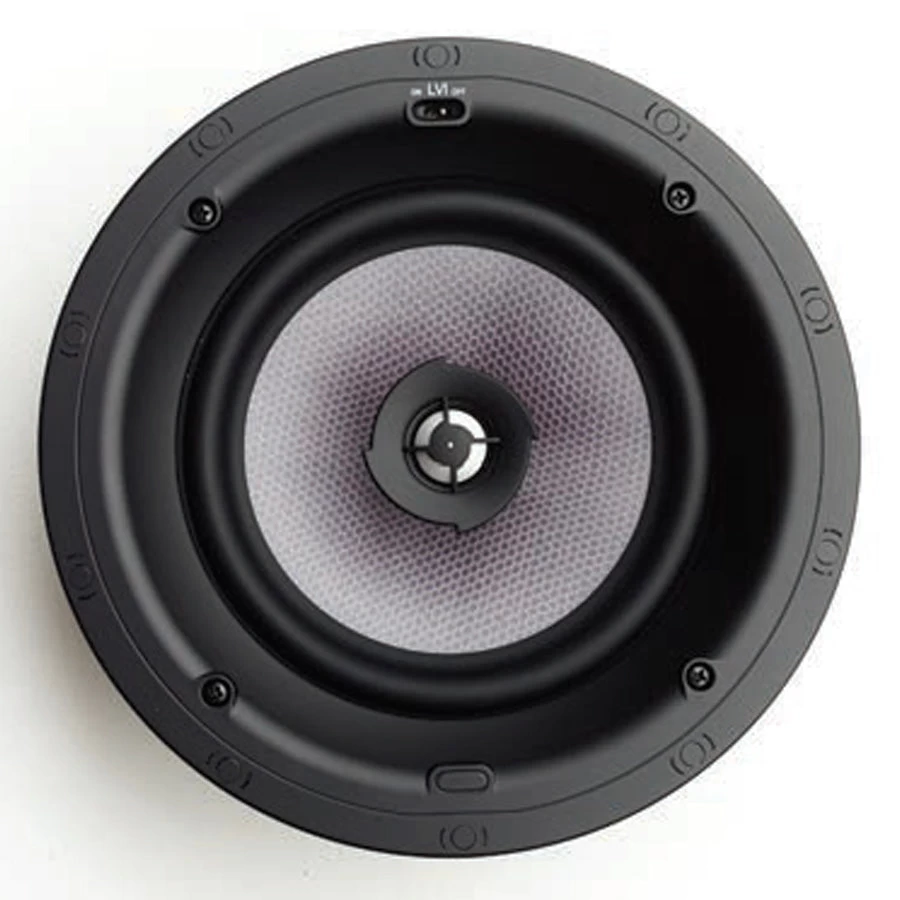

TECHNICAL SPECS – KIN IC82

Design: 8″ In-Ceiling with LVI equalization switch
Frequency Response: 38 Hz – 30 kHz
Recommended Power: 20-150 W
Woofer: 8” MHEX Phenolic Honeycomb Woven Hybrid woofer in die-cast basket
Tweeter: 1” Ceramic coated aluminum dome tweeter
Impedance: 8 ohm
Sensitivity (dB @1W-1M): 91dB
Dimensions (w x h x d): 271 x 169.55mm
Cutout: 246.25mm

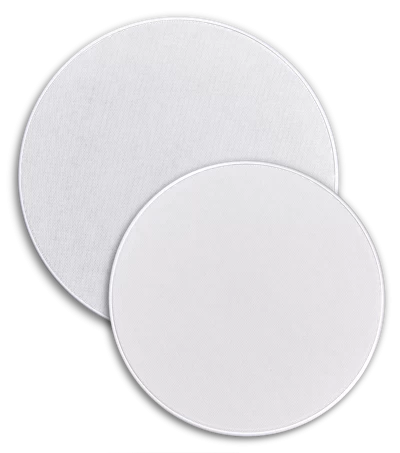

Grille Type: magnetic, paintable, virtually bezel-less white metal
Accessories / Options: Pre-construction brackets, square grilles, acoustic back can
Speaker Terminals: Spring-loaded Gold Plated
Weight: 5.65lb / 2.56kg

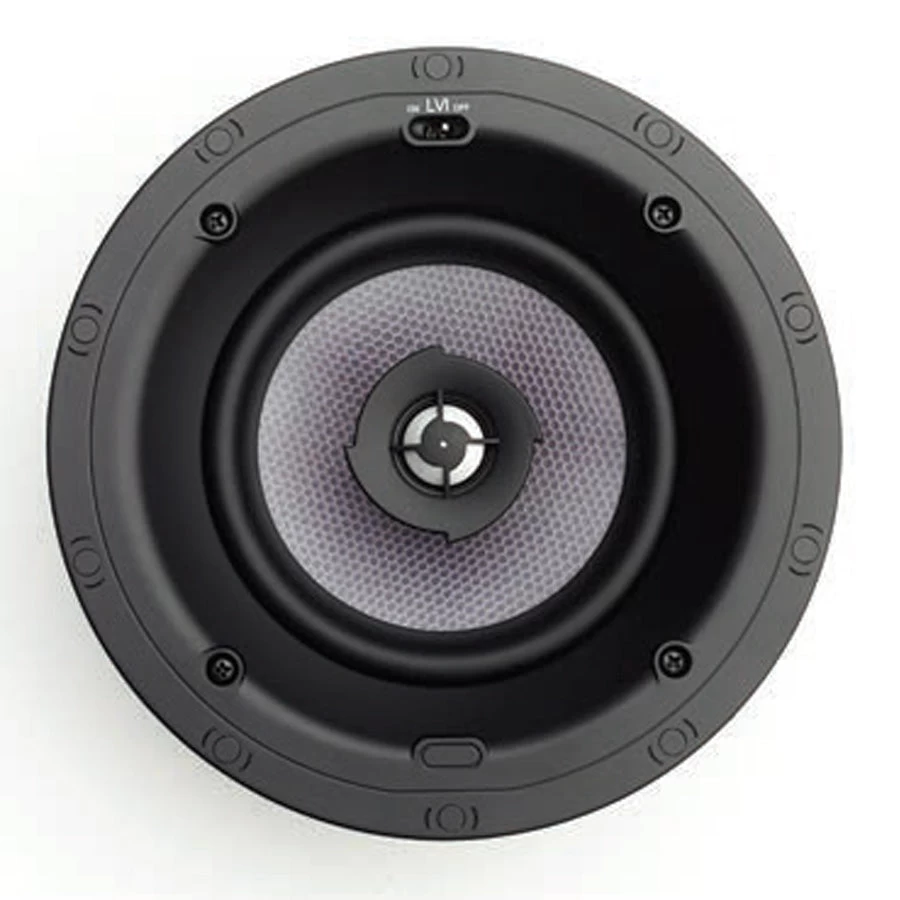

TECHNICAL SPECS – KIN IC62

Design: 6.5″ In-Ceiling with LVI equalization switch
Frequency Response: 46 Hz – 30 kHz
Recommended Power: 20-110 W
Woofer: 6.5” MHEX Phenolic Honeycomb Woven Hybrid woofer in die-cast basket
Tweeter: 1” Ceramic coated aluminum dome tweeter
Impedance: 8 ohm
Sensitivity (dB @1W-1M): 90dB
Dimensions (w x h x d): 234 x 120.65mm / 9.21 x 4.75″ With back can: 157.41 /6.19″
Cutout: 211mm
Grille Type: magnetic, paintable, virtually bezel-less white metal
Accessories / Options: Pre-construction brackets, square grilles, acoustic back can
Speaker Terminals: Spring-loaded Gold Plated
Weight: 4.8lb / 2.18kg
