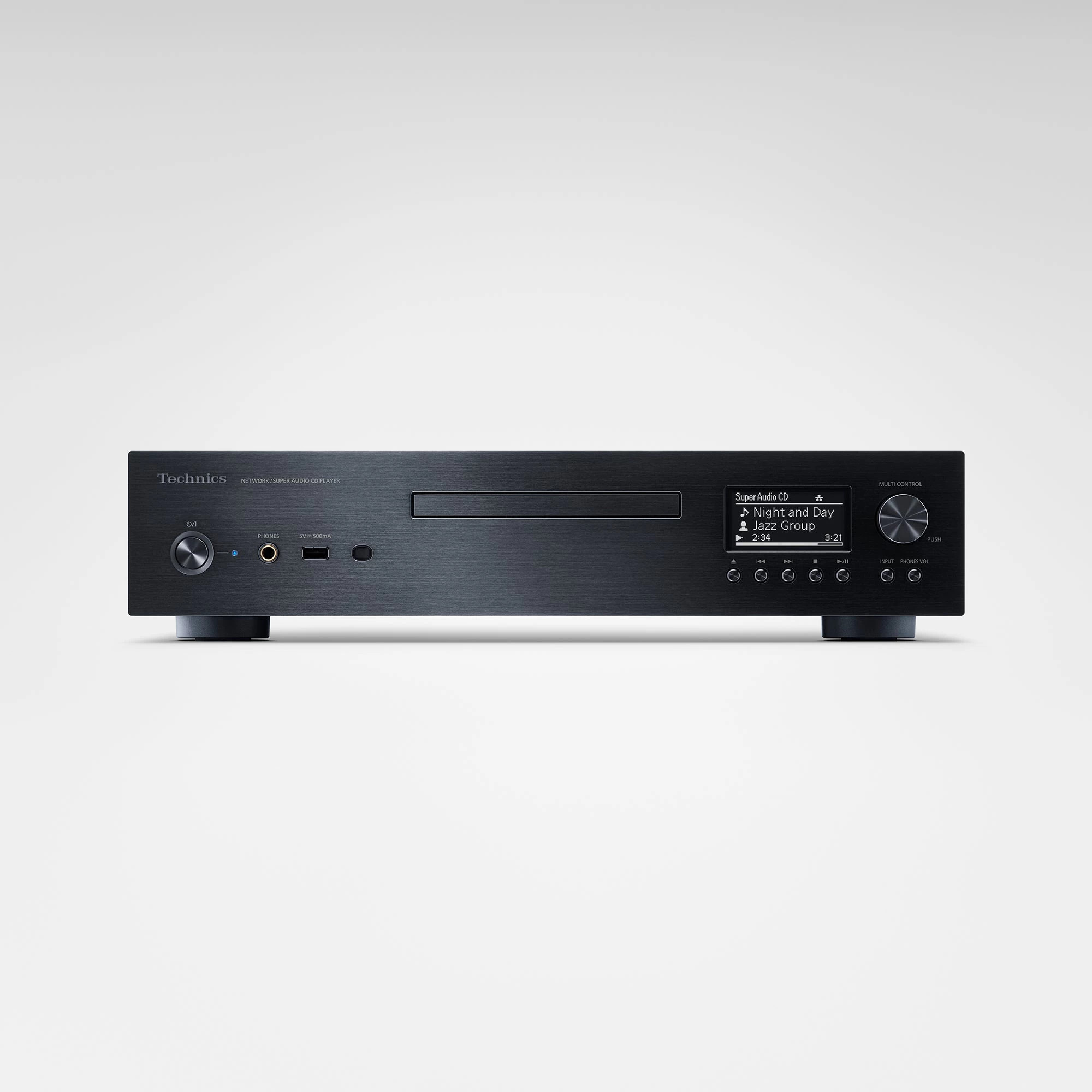

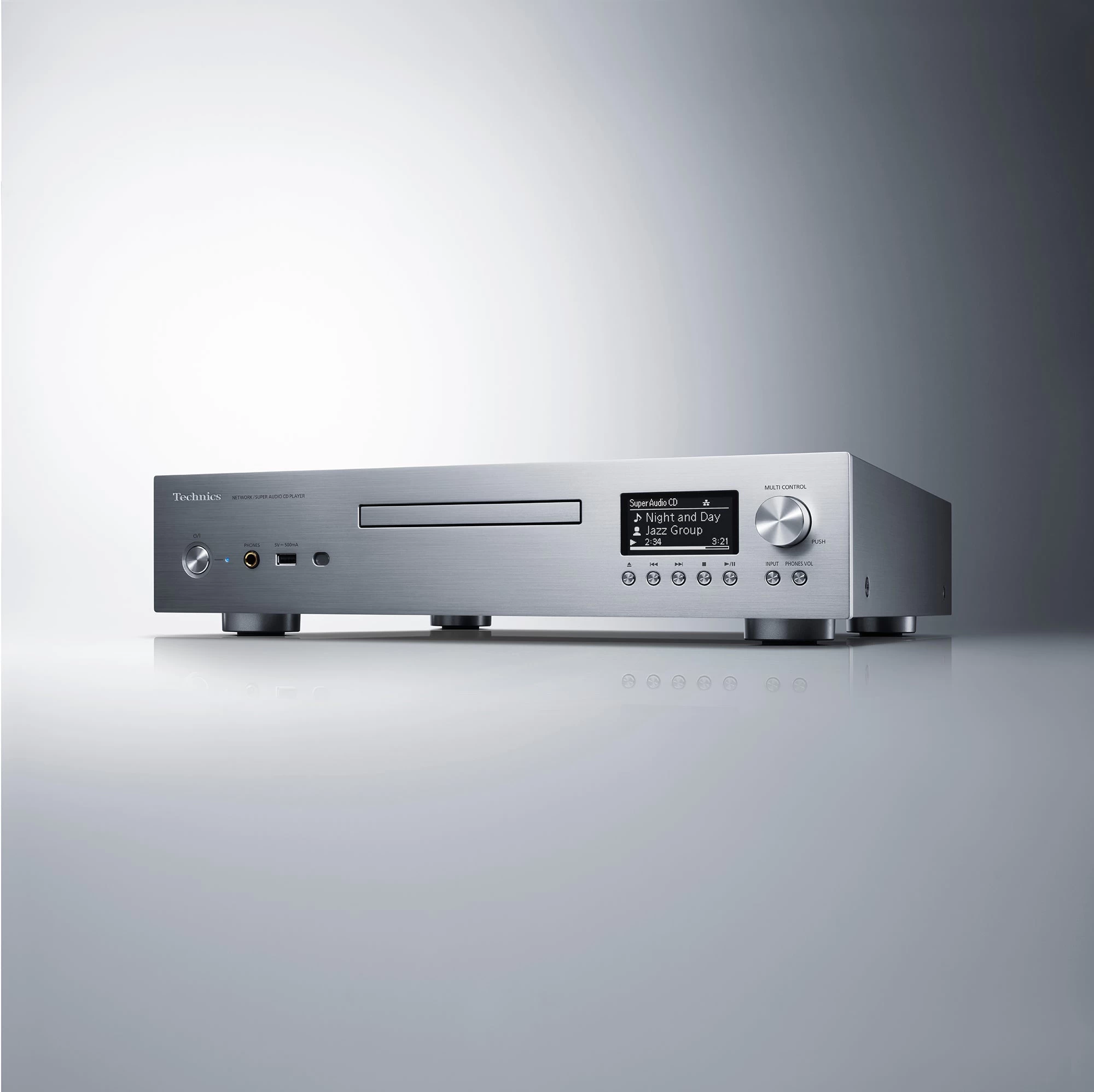

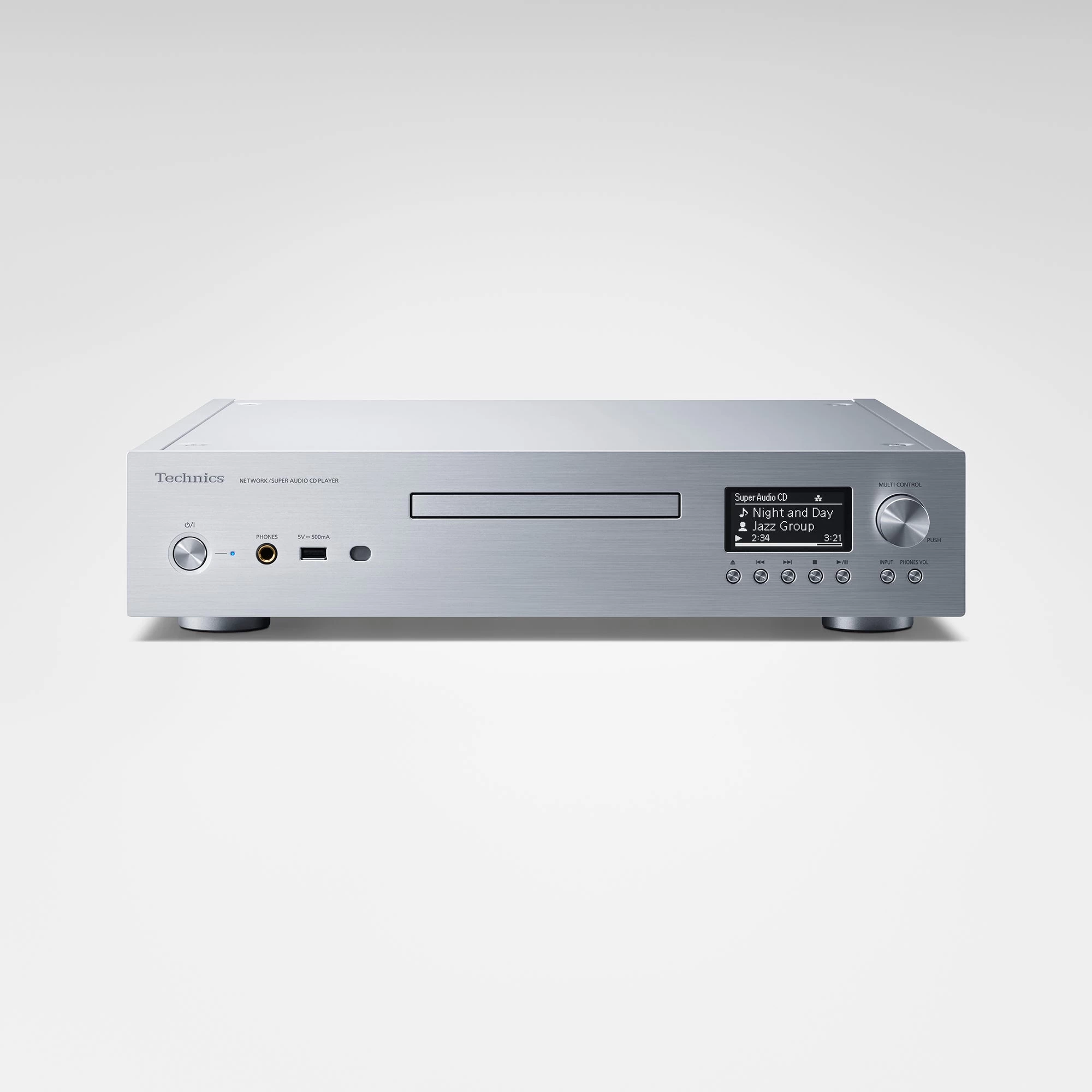

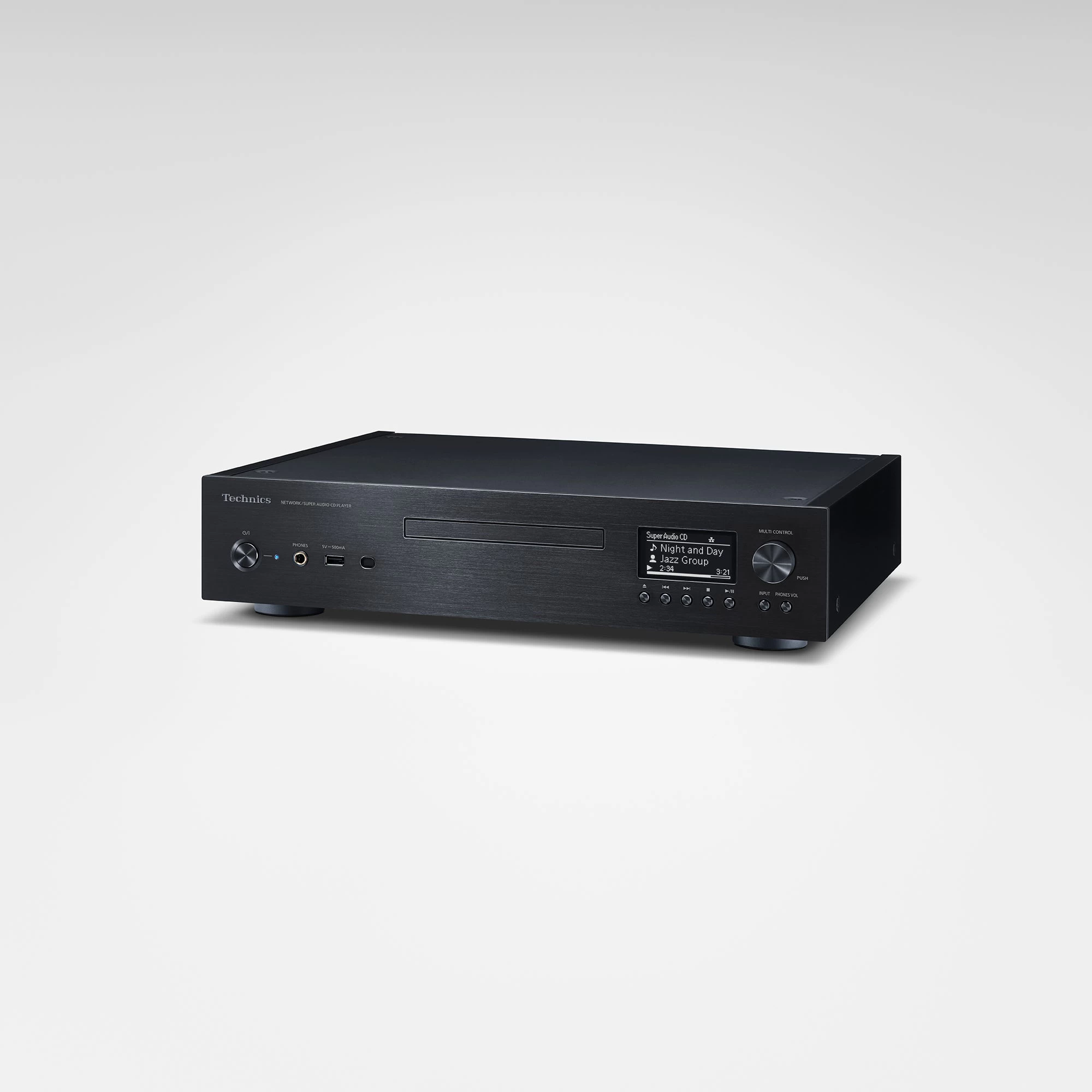

Technics SL-G700 Grand Class CD/SACD Player

The New SL-G700 Network / Super Audio CD Player. The SL-G700 is a multi-digital player that covers most of the digital audio media available today, from traditional CD/SACD to the latest high-res and many streaming services, and plays them all back in the highest possible quality.

Premium High-grade D/A Converter and Dual Mono Construction D/A Circuit
For analogue audio output, the D/A circuit is one of the most important circuit blocks since it recreates the original analogue waveform from a digital source, such as a CD. For the D/A converters, Asahi Kasei Micro devices’ top-of-the-line DAC AK4497, with their high S/N ratio and low distortion, are isolated for the left and right channels. The power supply for the D/A converters is separated into five sections according to the application, and supplied individually. The power supply for the clock employs an original Battery Driven Circuit System to achieve high-accuracy D/A conversion. The Dual Mono Construction and asymmetrical layout eliminate mutual interference between left and right channels, taking the reproduction of sound imaging and sound space recorded in the source to a higher dimension.

FEATURES

• Premium High-grade D/A Converter and Dual Mono Construction D/A Circuit
• Discrete AMP Module
• High-speed Silent Hybrid Power Supply
• High-quality Headphone Output
• Four-Section Configuration
• High-Rigidity Drive Mechanism

TECHNICAL SPECS

• Disc Format: Super Audio CD, CD-DA
• Signal to Noise Ratio (IHF-A): BALANCED: 121 dB (IHF-A) / UNBALANCED: 118 dB (IHF-A)
• THD+N: Super Audio CD: 0.0006% (1 kHz, 0 dB) / CD: 0.0015% (1 kHz, 0 dB)
• Digital Input Termina: Coaxial Digital x 1, Optical Digital x 1, USB-A x 2
• Analogue Output Terminal: BALANCED x 1, UNBALANCED x 1 Support Variable Level Output
• Digital output Terminal: Coaxial Digital x 1, Optical Digital x 1
• System Port: System Control Input / Output (Φ3.5 mm Jack)
• Headphone Output: Yes(Φ6.3 mm, 110 mV, 32 Ω VOL MAX))
• Ethernet Interface: LAN (100 Base-TX / 10 Base-T)
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 38W
• Dimensions (W x H x D): 430 x 98 x 407 mm (16-15/16 x 3-7/8 x 16-1/32 inch)
• Weight: Approx. 12.2 kg (Approx. 26.9 lbs.)
