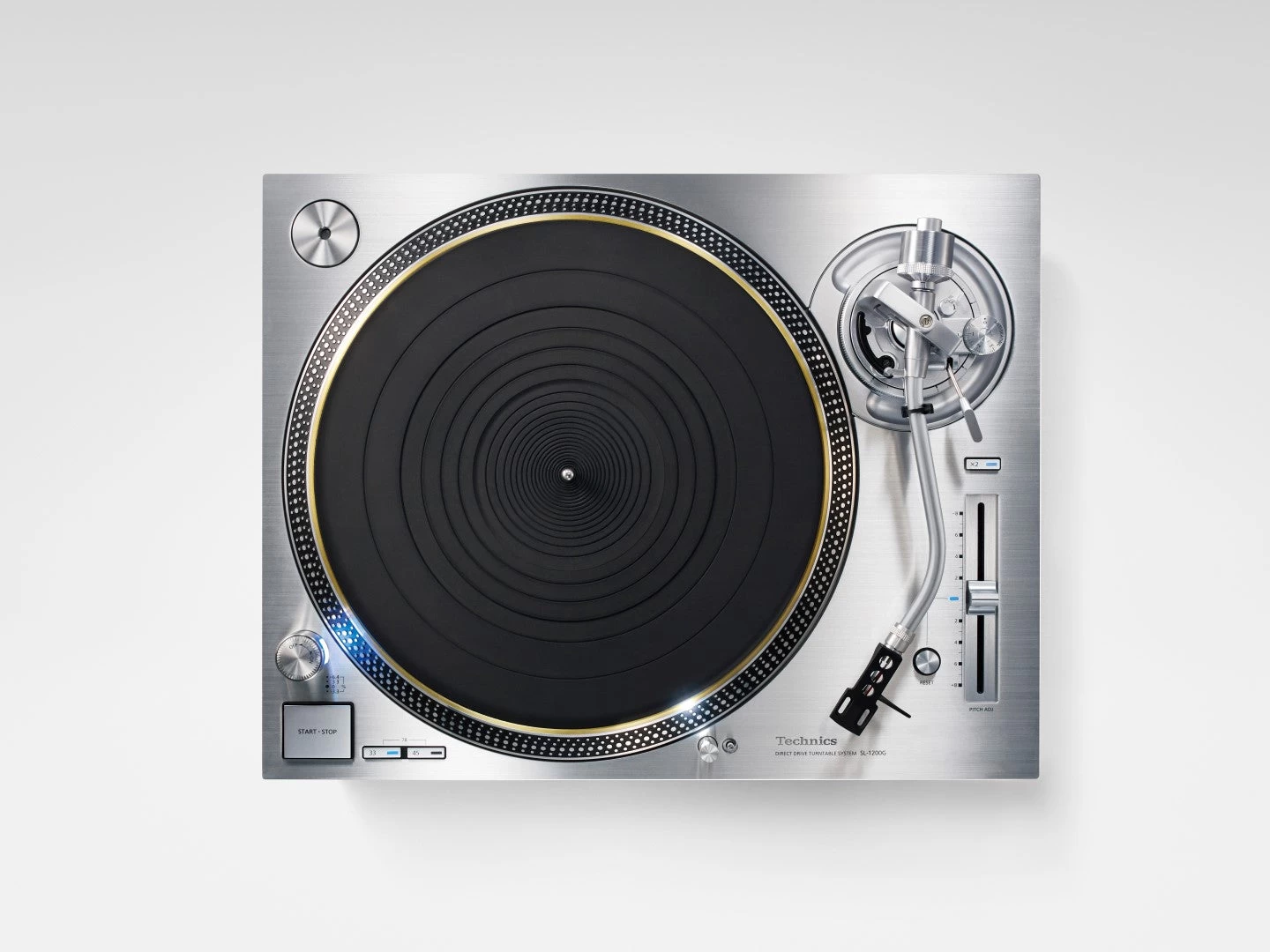

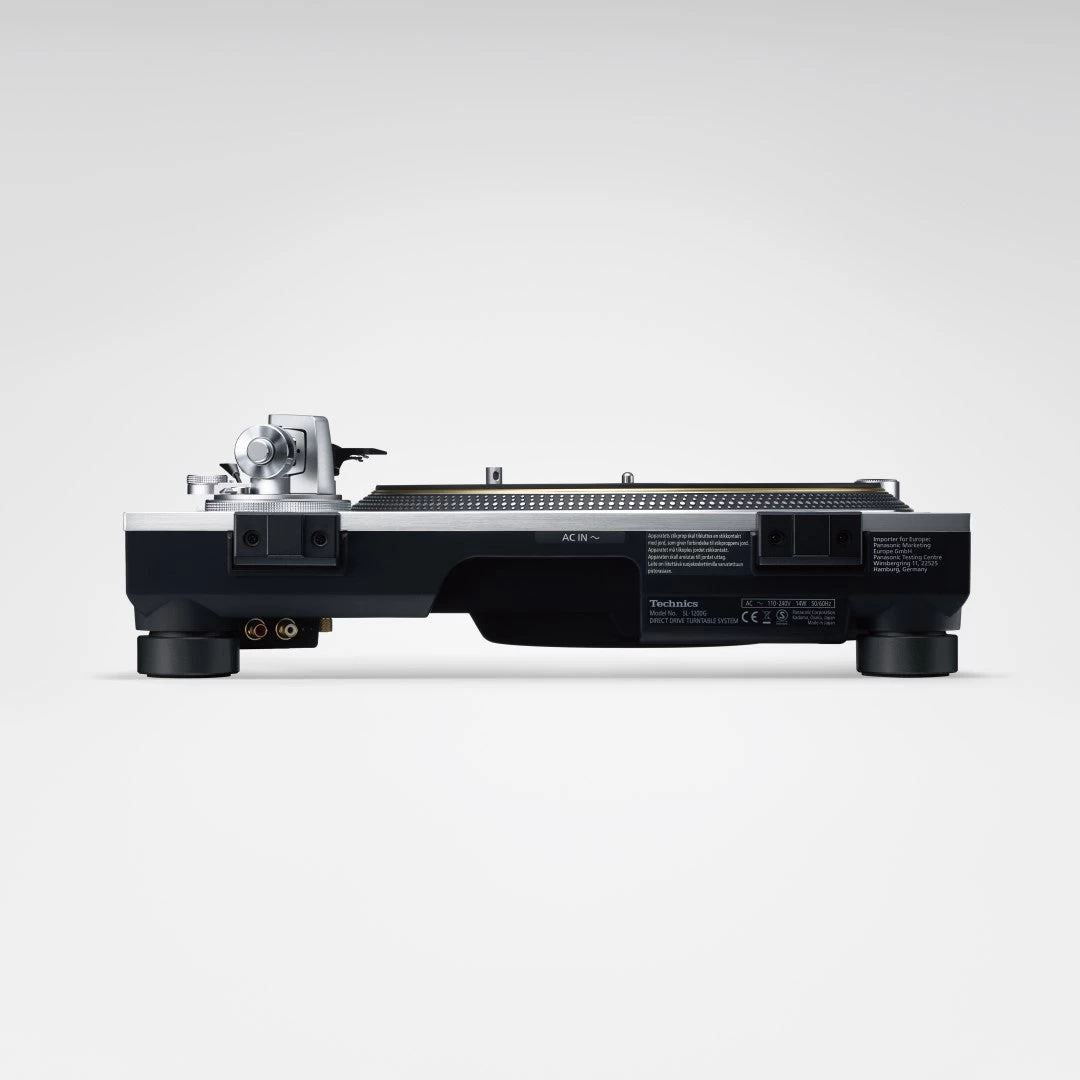

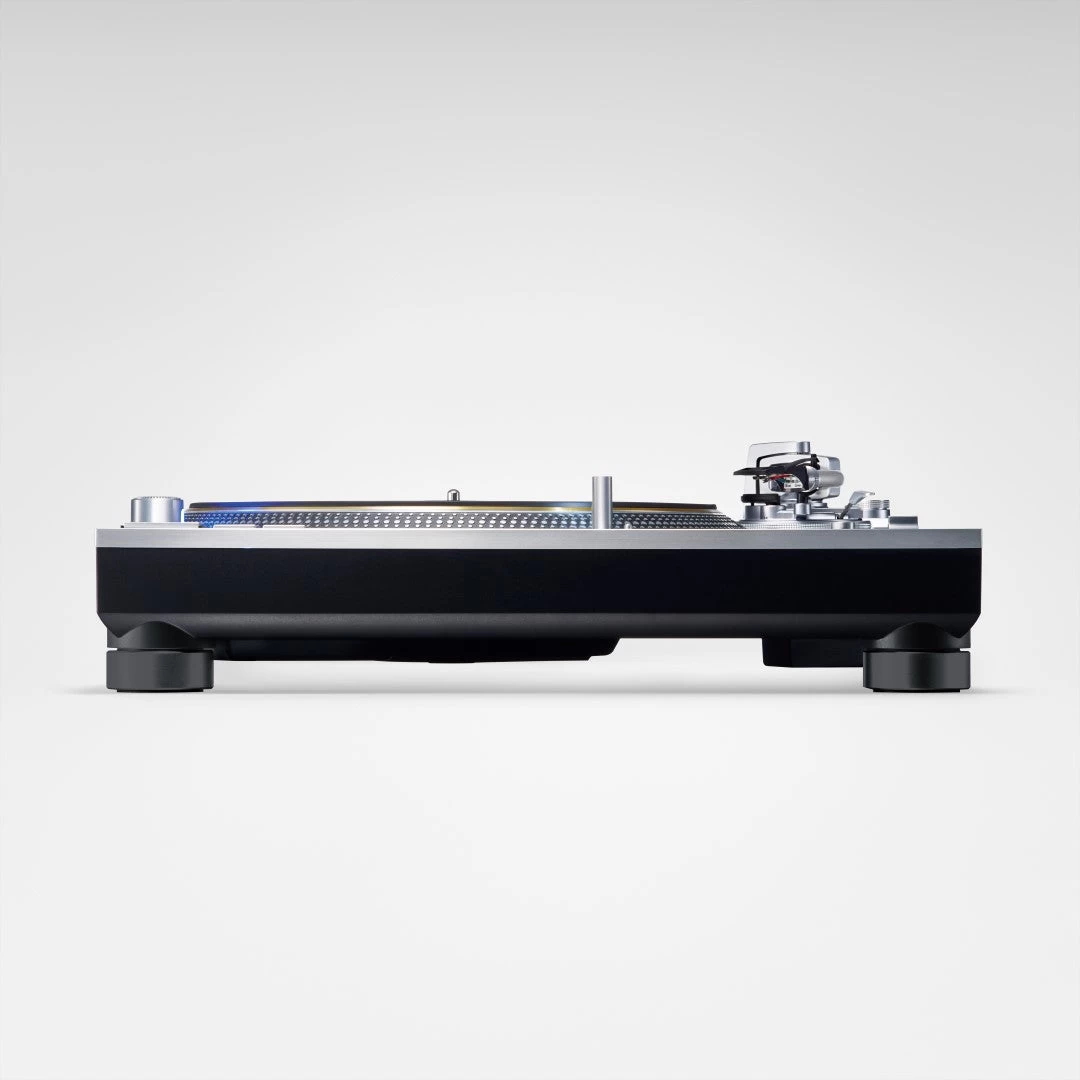

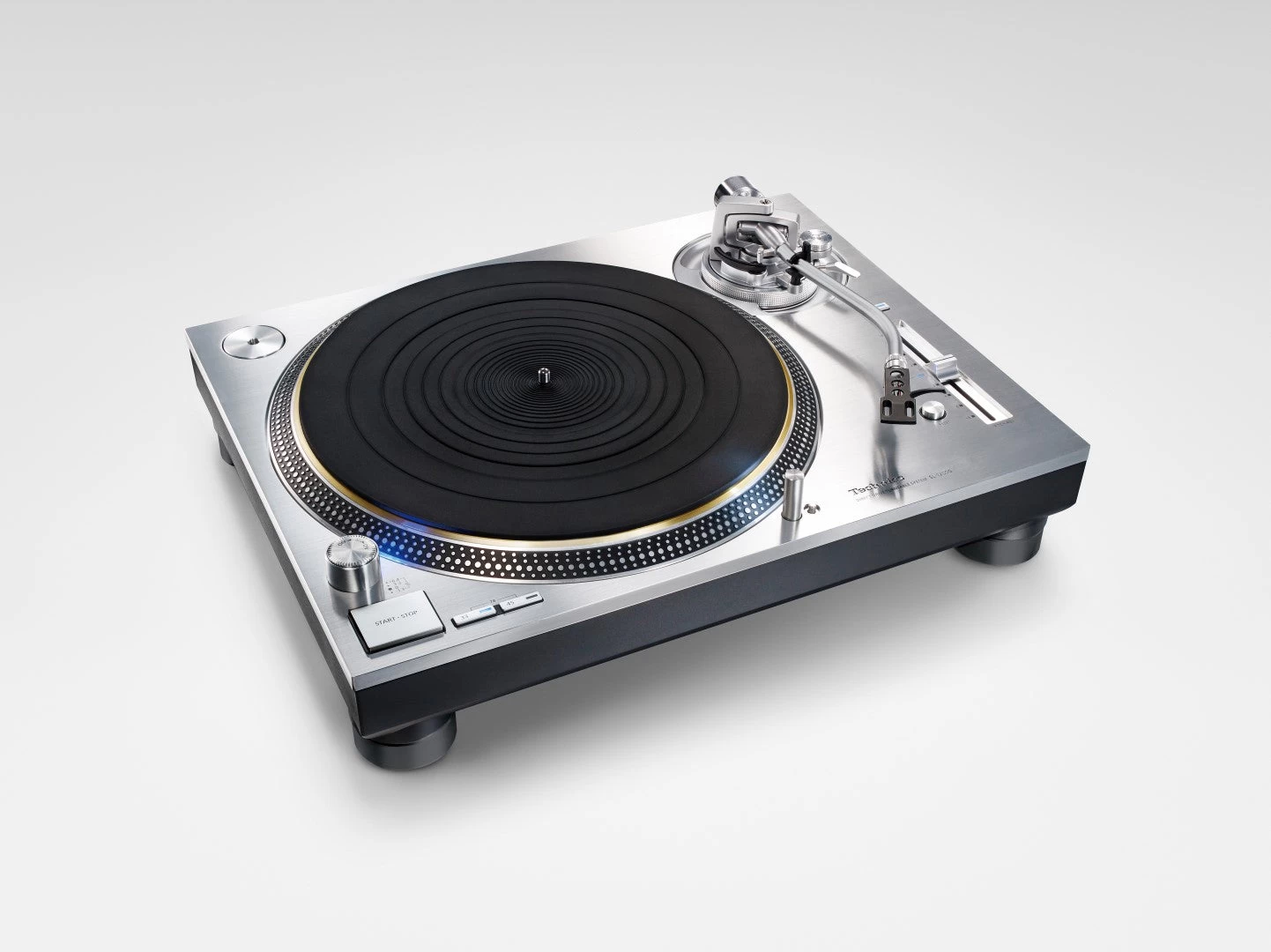

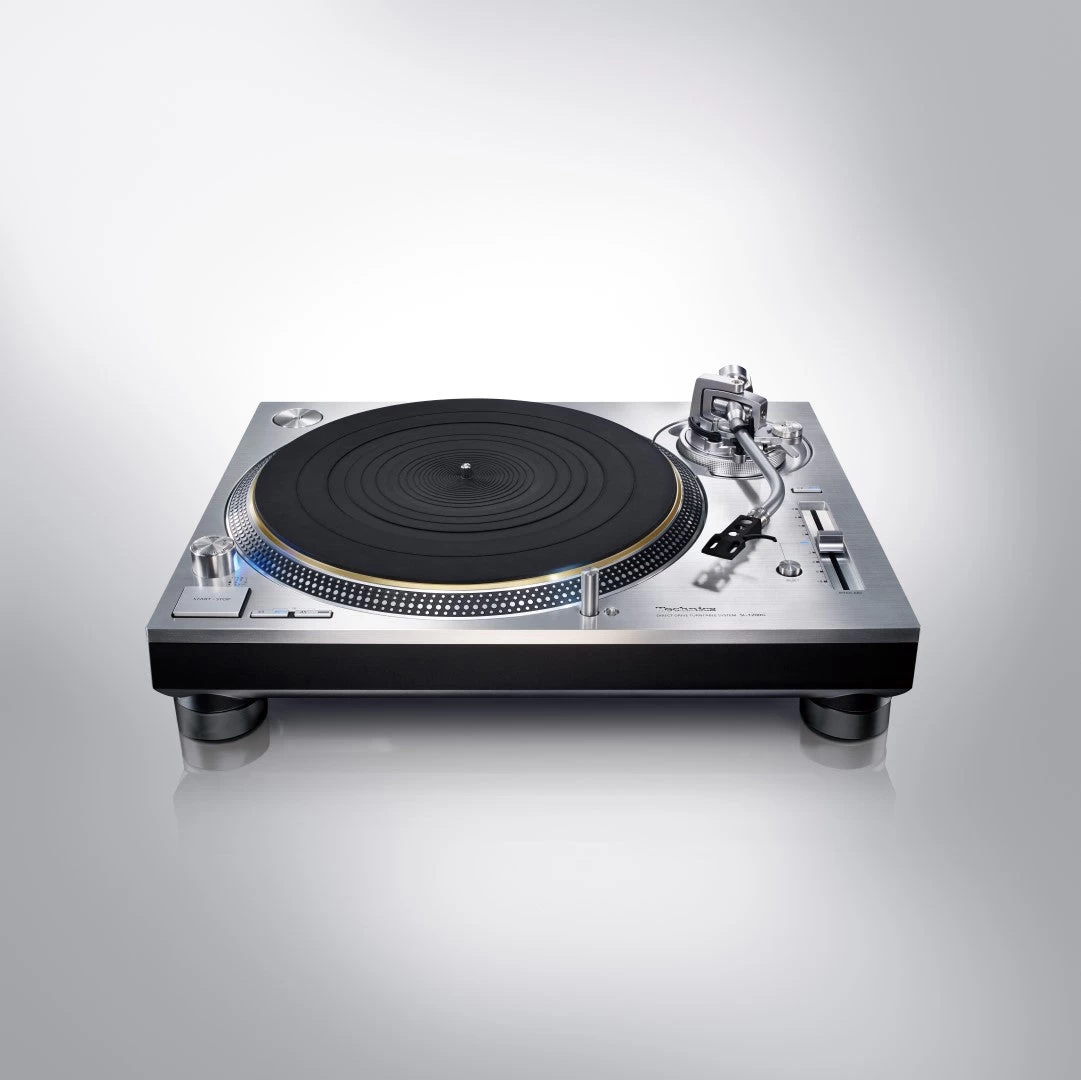

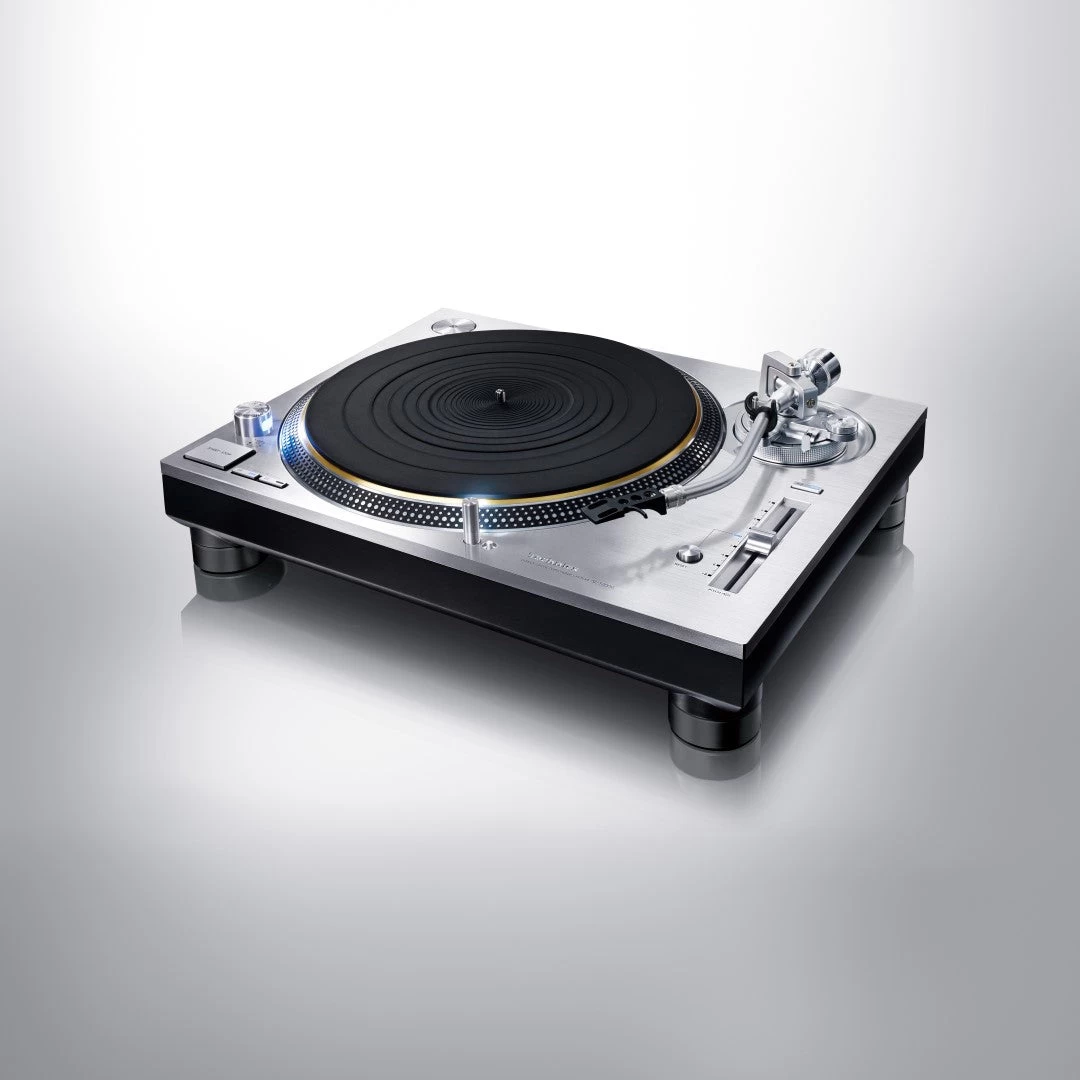

Technics Direct Drive Turntable System SL-1200G

Conventional analogue turntables have problems with degradation in sound quality caused by factors such as minute speed vibration during rotation and rotation irregularity called “cogging.” In the SL-1200G, the use of a newly developed coreless direct-drive motor with no iron core eliminates cogging. Also, the twin-rotor construction reduces the bearing load while maintaining high torque and also reduces minute vibration during rotation. These factors enable reproduction of the warm, exquisitely detailed sound etched on analogue records.

FEATURES

• Coreless Direct Drive Motor
• High-precision Motor Control Technology
• Three-layered Turntable Platter
• High-level Balance Adjustment
• High-sensitive Tonearm
• Four-layered Cabinet Construction

TECHNICAL SPECS

• Turntable
• Type: Direct Drive Manual Turntable
• Turntable Speeds: 33 1/3, 45, 78 rpm
• Adjust Range: ±8%, ±16%
• Starting Torque: 3.3　kg･cm (2.8 lb-in)
• Build-up Characteristics: 0.7 s. from standstill to 33 1/3 r/min
• Wow And Flutter: 0.025%　W.R.M.S. (JIS C5521)
• Rumble: 78dB　(IEC 98A Weighted)
• Tonearm
• Type: Universal Static Balance
• Effective Length: 230mm (9-1/16″)
• Overhang: 15mm (19/32″)
• Offset Angle: 22°
• Arm-height Adjustment Range: 0 – 6 mm
• Stylus Pressure Adjustment Range: 0 – 4 g (direct reading)
• Head Shell Weight: Approx. 7.6 g
• Cartridge Mounting Dimension: JIS 12.7 mm Interval
• Head Shell Terminal Lug: 1.2 mm φ 4-pin Terminal Lug
• Audio Output: PHONO (Pin Jack) x 1, EARTH TERMINAL x 1
• Power Supply: AC120 V, 60 Hz
• Power Consumption: 14 W Approx. 0.2W (Standby)
• Dimensions (W x H x D): 17-27/32 x 6-13/16 x 14-21/32 inch
• Weight: Approx. 39.7lbs
