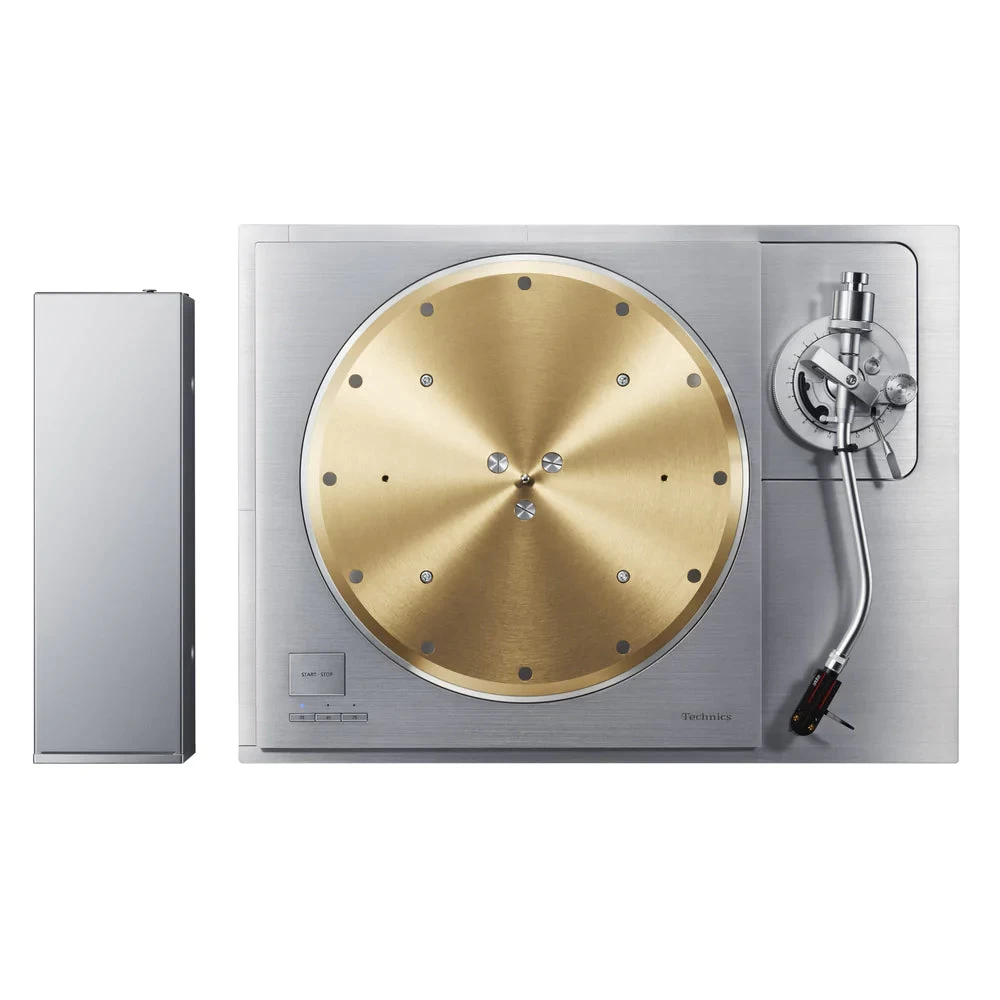

Exquisite, reference-class direct drive turntable system, the SL-1000RE-S uses the SP-10RE-S motor unit with a coreless direct drive motor that was developed for the SL-1200G and further improved to provide both high rigidity and reliability. The high-sensitivity tonearm achieves high initial-motion sensitivity to precisely trace the grooves cut into the records, producing highly vivid sounds.

FEATURES

Double coil twin rotor-type coreless direct drive motor with heavyweight-class platter
Constructed to prevent unwanted vibration, helping to achieve overwhelming rotary precision
The turntable platter positions tungsten weights for high rigidity and excellent vibration damping
The control unit is separated from the main unit to suppress the effects of unwanted noise
Supports not only LP (33 1/3 rpm) and EP (45 rpm) analog records, but also SP (78 rpm)

TECHNICAL SPECS

Power Supply: AC 110 – 240 V, 50 / 60 Hz
Power Consumption: 10 W, Approx. 0.05 W (Standby)
Weight: Main Unit Approx. 40.2 kg (88.7 lbs), Control Unit Approx. 2.1 kg (4.7 lbs)
Dimensions (W x H x D): Main Unit 531 x 188 x 399 mm (20-29/32 × 7-13/32 × 15-23/32 inch), Control Unit 110 x 84 x 350 mm (4-11/32 × 3-5/16 × 13-25/32 inch)
Audio Output: PHONO (Din Jack) x 1 Straight Type Cable Only
Tonearm Section

Type: Universal Static Balance
Effective Length: From the tonearm pivot to the stylus : 254mm (10″), From the tonearm pivot to the spindle : 239mm (9-13/32″)
Overhang: 15 mm (19/32 inch)
Offset Angle: 21°
Arm Height Adjustment Range: 0 – 15 mm
Stylus Pressure Adjustment Range: 0 – 4 g (Direct Reading)

Turntable Section

Drive Method: Direct Drive
Motor: Brushless DC motor
Turntable Speeds: 33 1/3, 45, 78 rpm
Adjust Range: ±16 %
Starting Torque: 0.39 N・m / 4.0 kg･cm (3.47 lb-in)
Wow And Flutter: 0.015 % W.R.M.S.
Turntable Platter: Brass and aluminium diecast combined, Diameter : 323 mm (12-23/32″), Weight : Approx. 7.9 kg (17.5 lbs) (including turntable mat)
