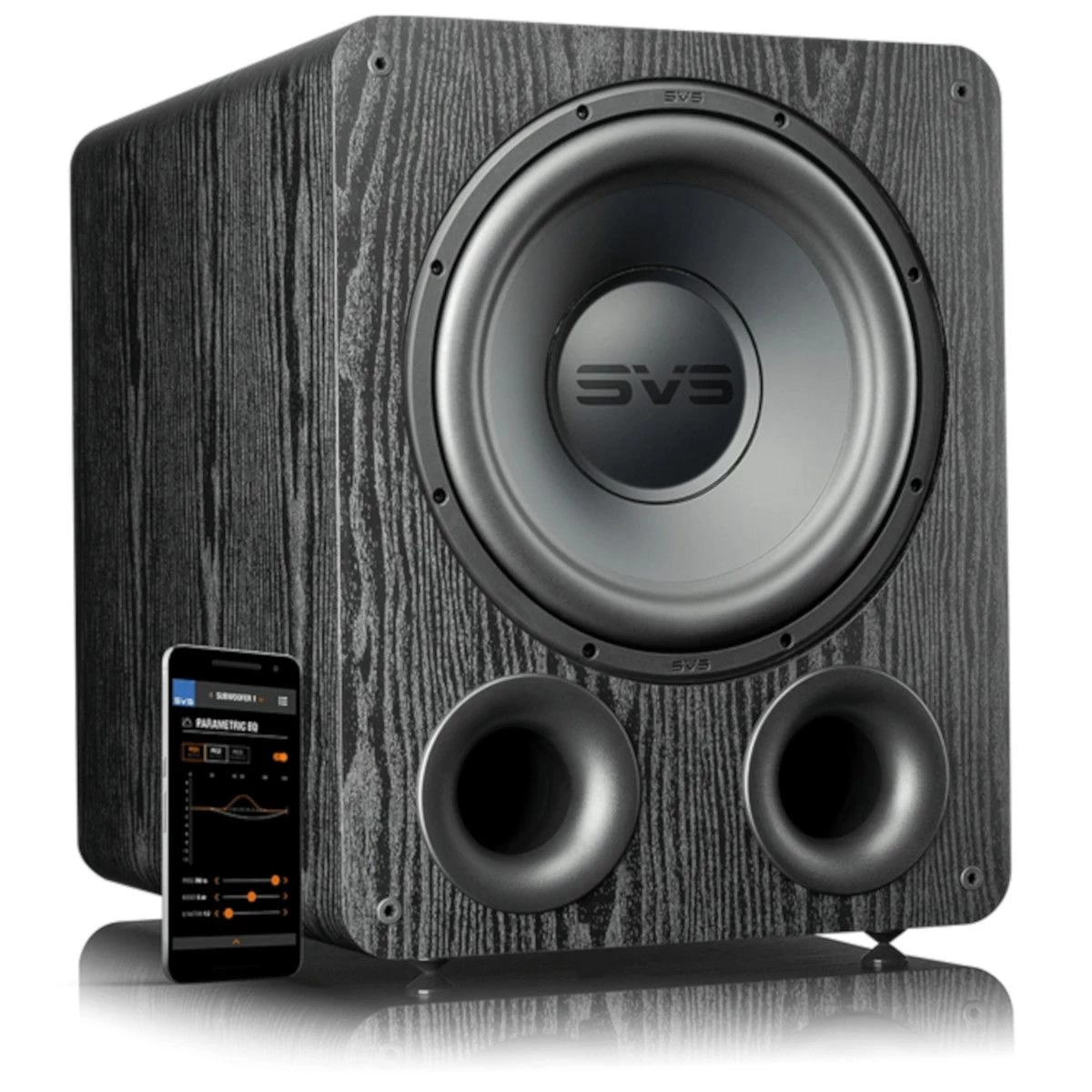

SVS – PB-1000 Pro – 12″ Ported Subwoofer

Room-shaking output well below the threshold of audibility, with pinpoint control and accuracy, the PB-1000 Pro obliterates performance expectations for subwoofers anywhere near the price. A reimagined 12″ high-excursion SVS driver is married to a reference 325W RMS, 820+W peak power Sledge amplifier with fully discreet MOSFET output for stunningly immersive cinematic bass. PB-1000 Pro is optimized with a new dual-port cabinet design for effortless bass with vanishingly low distortion and features the SVS Subwoofer DSP smartphone app for convenient tuning and control.

The original SVS PB-1000 rocked the subwoofer world with unparalleled performance at its price and beyond. Now, the PB-1000 Pro raises the bar even higher with greater low-frequency output, deeper bass extension down to a guttural 17Hz, performance-enhancing dual-port cabinet design, and a massive upgrade to the user experience. New to the PB-1000 Pro is a dual-port configuration that enables greater output with much lower distortion compared to the original 1000 Series model.

A complete reimagination of the original 10″ driver, the PB-1000 Pro features an all-new 12″ high-excursion driver with dual high-grade ferrite magnets and FEA-optimized internal motor architecture for extreme excursion and massive, pristine output. With innovations to the cone, surround, voice coil, and motor assembly, the unflappable 12″ driver unleashes room-shaking bass never-before-heard from a ported subwoofer anywhere near the price.

Using the same amplifier technology as the flagship SVS 16-Ultra Series, PB-1000 Pro features a 325W RMS, 820+W peak power Sledge STA-325D amplifier with fully discrete MOSFET output. Harnessing the massive power while ensuring accuracy and control is a 50 MHz Analog Devices Audio DSP with frequency response curves precisely tuned for the PB-1000 Pro.

PB-1000 Pro also features the SVS subwoofer smartphone app, the most convenient way to control volume, access multiple DSP functions, and program custom presets for one-touch tuning profiles optimized for music, movies, gaming, and more. Adjust crossover frequencies, a three-band parametric EQ, polarity, room gain, and more, all from your favorite seat.
PB-1000 Pro stands alone in its excellence with massive output well below the threshold of human hearing, where bass is only felt, with flawless tonal accuracy and precise control. The deepest, most effortless, and refined bass at a truly breakthrough price, PB-1000 Pro defies expectations at every level with performance-driven innovation.

SVS President Gary Yacoubian discusses 1000 Pro Series subwoofer technology design and engineering.

FEATURES:

Subwoofer Features

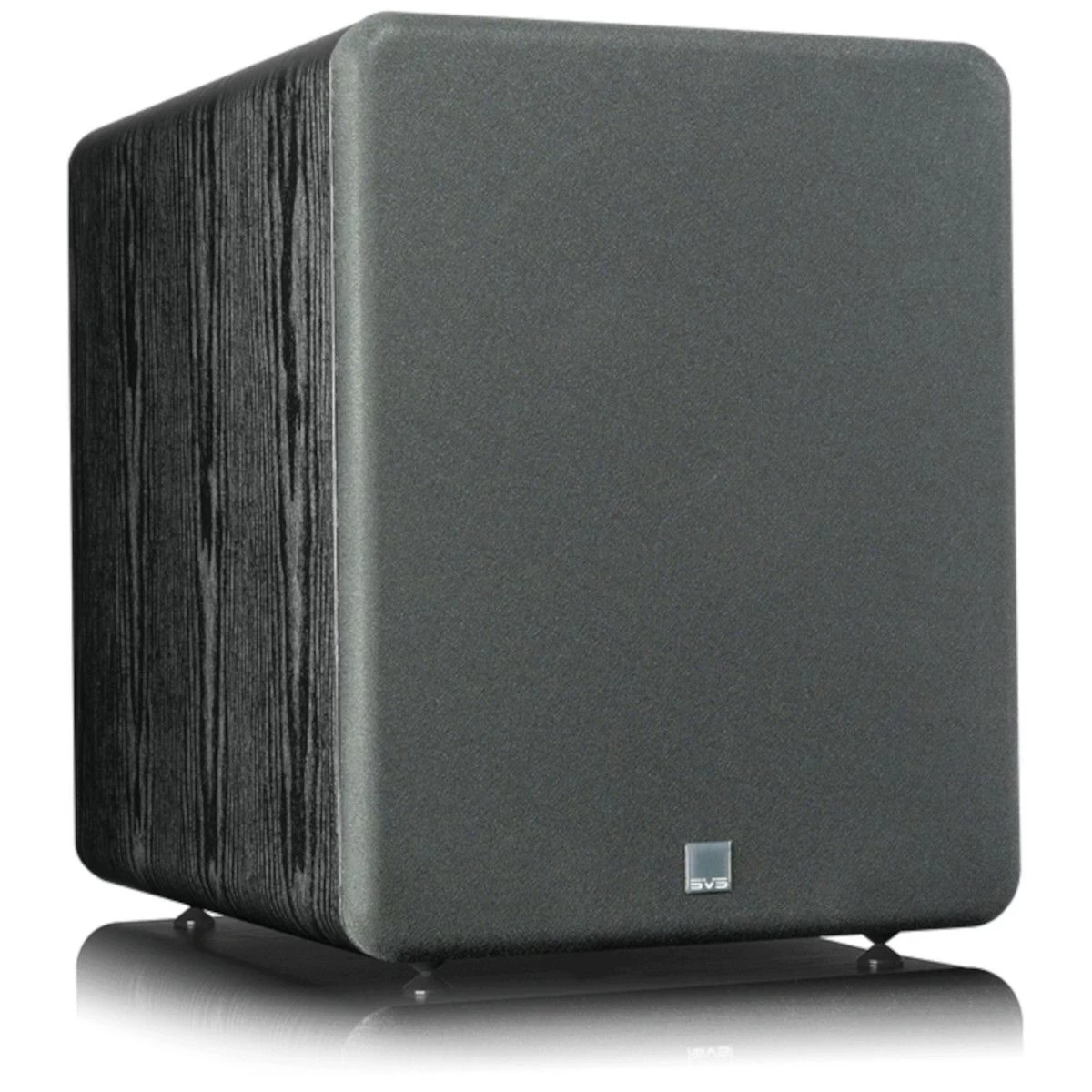

Protective non-resonant extra-thick ABS fabric mesh grille
Iso-elastomer feet included
Extra heavy-duty, high current power 6′ cord
Quick Start Guide
Port Plugs (free upon request)

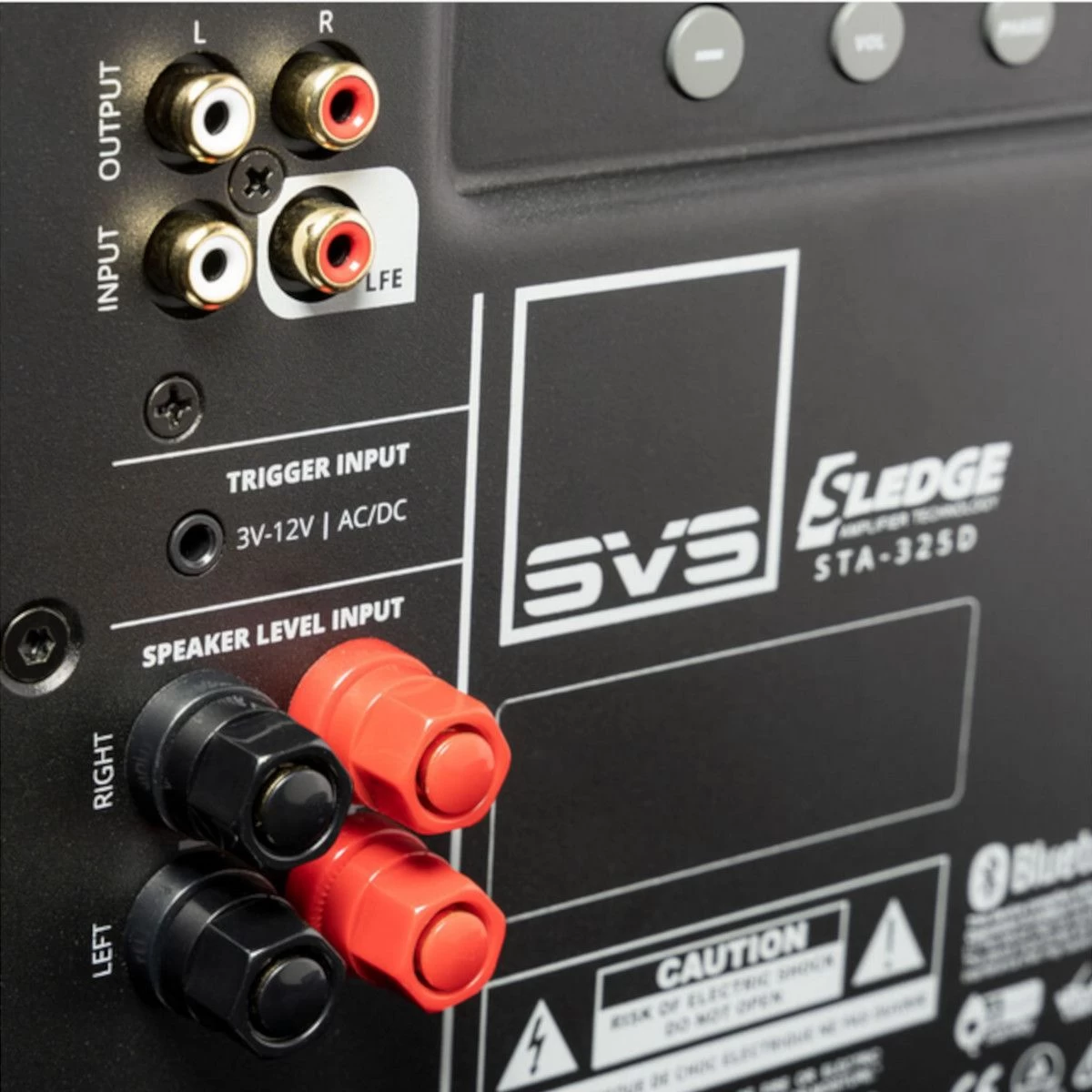

Unbalanced stereo input/output
Speaker Level Stereo Input
Auto/On and Trigger options through app, 3-12V AC/DC trigger
RoHS compliant, lead-free construction, world-wide safety certifications
Green 0.5W low standby power consumption

Driver Features

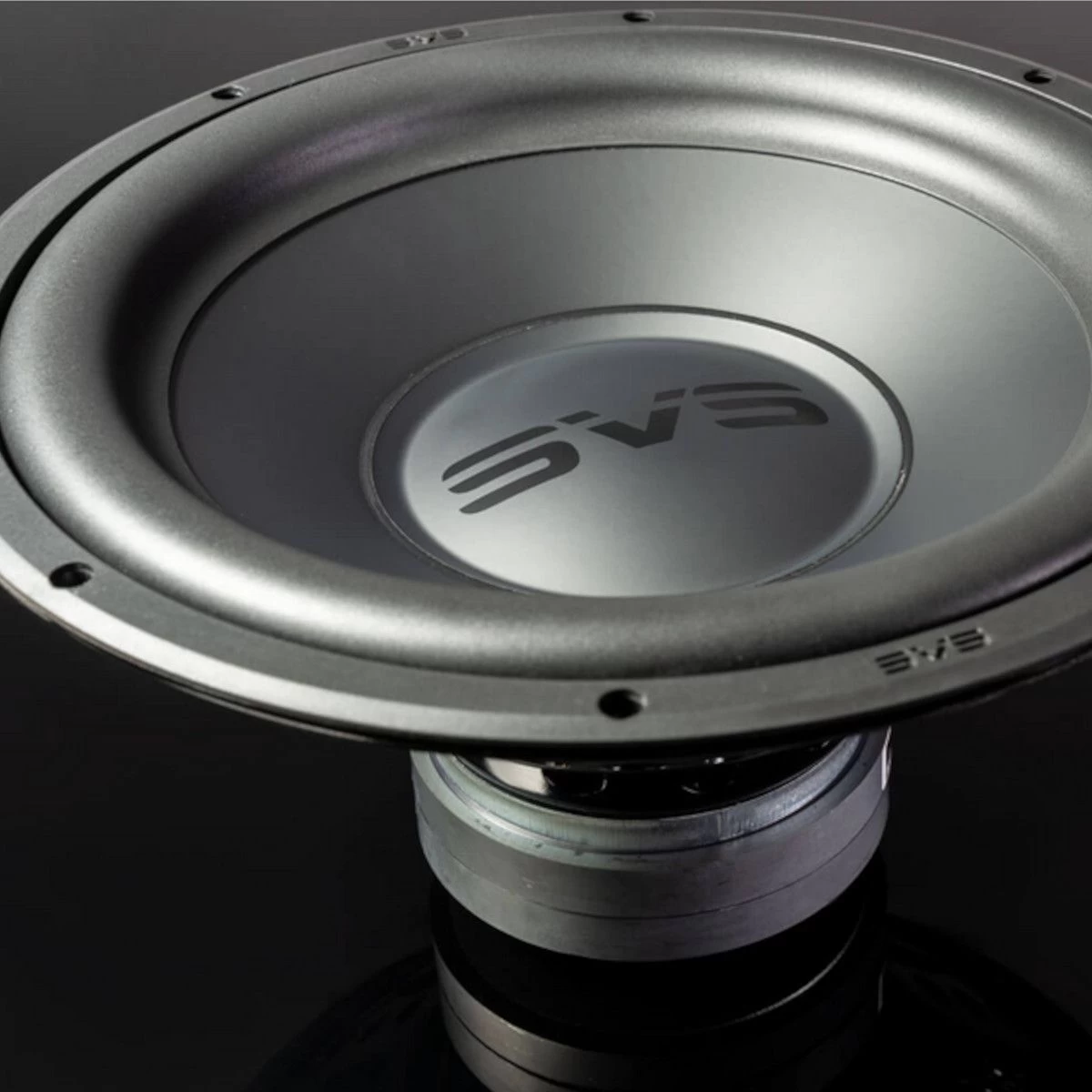

All-new proprietary 12″ long-throw driver with high-precision tuned overhung motor configuration.
9.26 lb. (4.2 kg) pound Woofer with 6.91 lb. (3.14kg) motor
13.1mm Xmax, 26.8mm Xmech precision aligned excursion
1.5” diameter Voice Coil with high current 6-layer high-purity copper wire windings
Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion
Two-piece high grade oversized Y35 Ferrite magnet motor
High-Temperature 3003-H18 aluminum former/bobbing
6” composite cotton-poly extreme excursion linear spider
Dual 24-strand copper-alloy high-temperature leads
Proprietary injection molded gasket and NBR extreme-excursion surround
Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response
Top plate assembly with low carbon 1010 steel for optimal magnetics
Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics
12” premium powder-coated basket with FEA optimized analysis for maximum rigidity, tensile strength, and energy transference
Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed
Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at a full range of excursion

SVS Sledge-550D Amplifier Features

325W RMS, 820+W peak power output Class D design
50Mhz Analog Devices Audio DSP, high-resolution double precision 56bit filtering
Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line-level input.
High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency.
Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s
SVS BLE control app for iOS and Android contains 3 complete name-able and customizable User presets, supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ’s per preset, adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers.
Customer EQ and DSP limiter settings specifically for the 1000 Pro
Input impedance 16kohm (unbalance RCA)
Input impedance 20kohm (speaker level)
New Intelligent Feature Control (IFC) user interface on the amplifier with bright blue 11 LED bar display and easy push-button controls.

SVS App Features

Bluetooth-controlled subwoofer DSP smartphone app works with iOS, Android and Amazon operating systems.
Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass management functions.
Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
Easy-to-follow tutorial provides clear guidance for all functions.

Accessories

Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
Easy-to-follow tutorial provides clear guidance for all functions.
Extra heavy-duty, high current 6-foot power cord
Quick Start Guide
