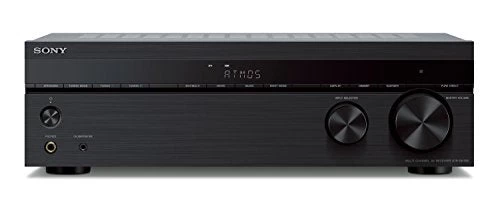

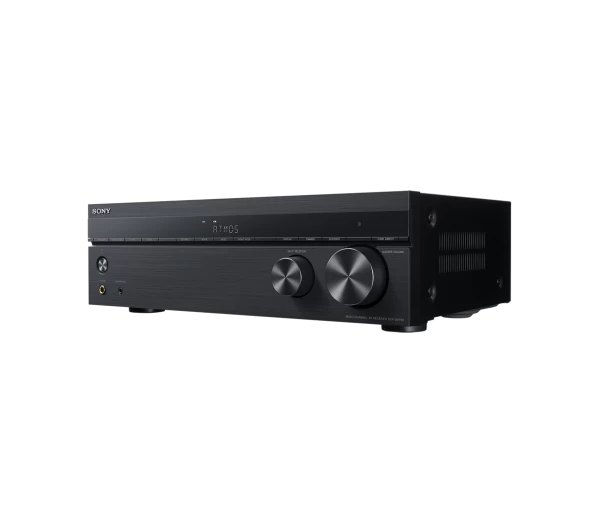

Give your home entertainment system a cinematic upgrade with the STR-DH790 7.2ch AV receiver. Experience the same all-encompassing surround sound you get in movie theaters at home with Dolby Atmos and DTS:X support. eARC lets you enjoy these latest audio formats with one-cable HDMI connection from your compatible TV. Plus, superior picture quality to match with 4K HDR pass-through.
Superior audio with Advanced D.C.A.C.
If you’re working with different combinations of speakers, our seamless auto calibration technology will have them all delivering the same high-quality sound. Automatic Phase Matching aligns the phase characteristics of your speakers to the front left and right speaker channels, so that all channels work perfectly together delivering a more effective surround sound experience.
FEATURES
- Quality surround sound with Dolby Atmos and DTS:X support
- 4in/1out HDMI connectivity with 4K/60p (4:4:4) pass-through, HDCP 2.2 support and HDR support
- Easy Bluetooth® connectivity
- Space-saving design to fit in media units
- High-Resolution Audio compatible
TECHNICAL SPECS
- Calibration Features: Advanced D.C.A.C., Automatic Phase Matching, Calibration Mic (Mono)

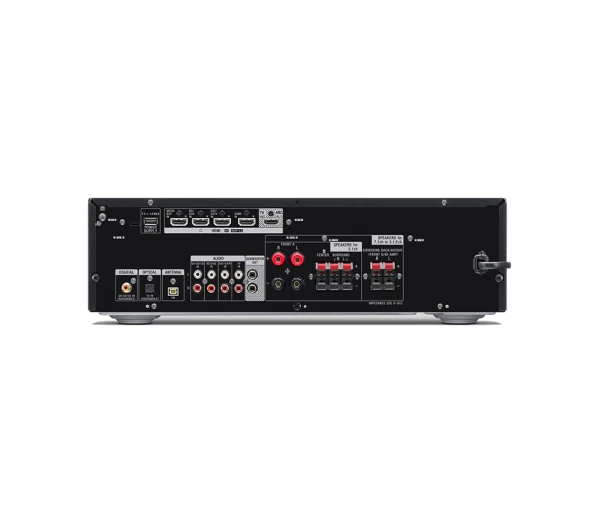

- Input and Output Terminals: Audio Input Opt (1), Audio Input Coax (1), Analog Audio Input (4), Pre Out Subwoofer (2), Headphone Output (1), USB (for power supply only)
- Speaker Output Terminals: Front A, Center, Surround, Surround Back, Height (Common with Surround Back), Front B (Common with Surround Back), Bi-AMP (Common with Surround Back)
- 3D over HDMI: Yes
- 4K 60p 4:4:4 Support: Yes
- A/V SYNC: Yes (Variable)
- Audio Return Channel: Yes (eARC / ARC)
- BRAVIA® SYNC™ (CEC Control): Yes
- HDMI® Pass Through: Yes
- HDR (High Dynamic Range): Yes (HDR10, HLG, Dolby Vision™ Compatible)
- Number of Amp. Channels: 7
- Number of Decodable Channels: 5.1.2ch
- Power Output: 145 W (6 ohms, 1 kHz, 1ch THD 0.9%)
- Sound Field: 2ch Stereo, Direct, Multi Ch Stereo, Dolby Surround, Neural: X, Front Surround, Audio Enhancer, Headphone 2ch
- Dimensions (W x H x D in): 17″ x 5-1/4″ x 11-3/4″ (430 x 133 x 297 mm)
- Weight (lb): 16 lb 6 oz (7.4 kg)
