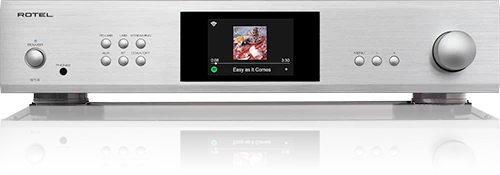

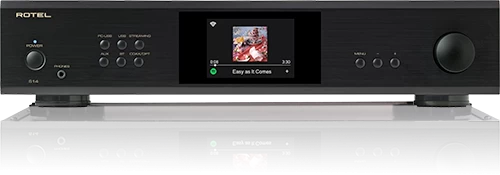

Rotel S14 Integrated Streaming Amplifier

The Rotel S14 Integrated Network Streamer is an all-in-one solution providing convenient, intuitive access to the near limitless catalog of online music. High resolution audio including MQA from Tidal and Qobuz is rendered with detailed precision through a 32-bit ESS DAC delivering 150 Watts of Class AB power into 4 ohms.

The front panel color display presents album artwork, track, and title information and simplifies the setup and configuration process using the included remote control. The S14 connects to both hard-wired and dual-band Wi-Fi networks for installation flexibility. This just-add-speakers solution continues to deliver on the promise of quality, performance, and value synonymous with Rotel.

FEATURES

• Certified Roon Ready
• Supports MQA and MQA Studio
• 2 x 150 Watts of robust Class AB power, 4 Ohms
• ESS premium 32-bit Digital to Analog Converter
• Wireless aptX™ HD and AAC Bluetooth

TECHNICAL SPECS

• MAXIMUM POWER OUTPUT: 150W/Ch (4Ω)
• CONTINUOUS POWER OUTPUT: 80W/Ch (8Ω)
• TOTAL HARMONIC DISTORTION(THD): <0.04%
• FREQUENCY RESPONSE
• Line Level Inputs: 10Hz – 100kHz, ±0.5dB
• Digital Inputs: 10Hz – 90kHz, ±2.0dB, Max
• INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): <0.03%
• DAMPING FACTOR: 400
• INPUT SENSITIVITY
• Line Level Inputs: 200mV
• Digital Inputs: -20dBfs
• INPUT IMPEDANCE
• Line Level Inputs: 47kΩ
• Digital Inputs: 75Ω
• INPUT OVERLOAD: Line Level Inputs: 4.5V
• TONE CONTROLS: ±10dB at 100Hz / 10kHz
• COAX/OPTICAL DIGITAL INPUT SIGNALS: SPDIF LPCM (Up to 24-bit/192kHz)
• DIMENSIONS (W × H × D): 430 × 93 × 345mm 17″ × 3 5/8″ × 13 1/2″
• NET WEIGHT: 9.15kg (20.17lbs.)
