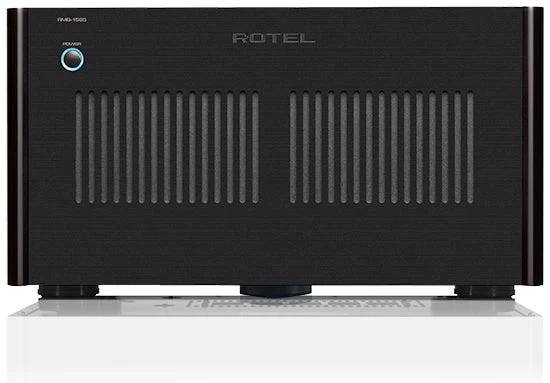

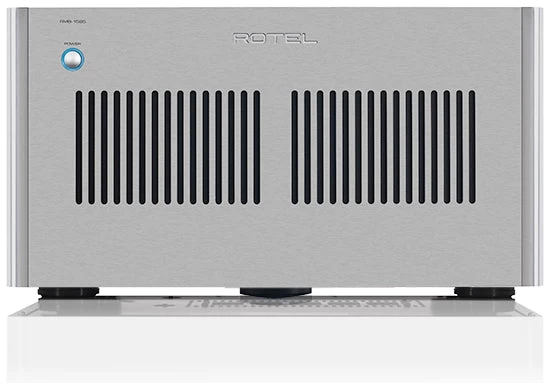

Rotel RMB-1585 5CH Home Theater Amplifier

The RMB-1585, Rotel’s new flagship theater amplifier, provides both the massive power and sonic sophistication required by the finest home theater systems. With five channels, each capable of producing 200 continuous Watts each into 8 ohm loads (a full kilowatt of output power!), the RMB-1585 masters any A/V system regardless of speaker load or room size.

FEATURES

• Power5 x 200 Watts of robust power
• Class AB amplifier design
• Massive power supply using dual toroidal transformers
• High quality slit foil capacitors made in Britain
• Optional rack ears available

TECHNICAL SPECS

• POWER REQUIREMENTS: 120V, 60Hz
• POWER CONSUMPTION: 1100W
• STANDBY POWER CONSUMPTION: 0.5W
• CONTINUOUS POWER OUTPUT: 200W/Ch (All channels driven, 8Ω)
• TOTAL HARMONIC DISTORTION (THD): (20Hz–20kHz) <0.03%
• FREQUENCY RESPONSE: 10Hz – 100kHz +0.5, -3dB
• INPUT SENSITIVITY
• Line Level Inputs (RCA): 1.9V
• Line Level Inputs (XLR): 3.8V
• INPUT IMPEDANCE
• Line Level Inputs (RCA): 12kΩ
• Line Level Inputs (XLR): 100kΩ
