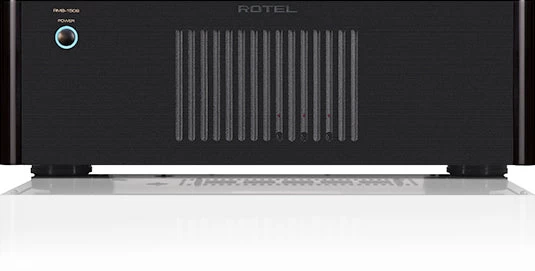

Rotel RMB-1506 6 Channel CI Amplifier

The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or “zones” of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.

FEATURES

• 6 x 50 Watts of robust power
• Class AB amplifier design
• Automatic signal sensing
• 12 volt trigger input

TECHNICAL SPECS

• POWER REQUIREMENTS: 120V, 60Hz
• POWER CONSUMPTION: 450W
• STANDBY POWER CONSUMPTION: 2.6W
• DIMENSIONS (W × H × D): 431 × 144 × 424mm (17″ × 5.7″ × 16.7″)
• NET WEIGHT: 15.3kg (34lbs.)
• TOTAL HARMONIC DISTORTION (THD): (20Hz–20kHz) <0.03%
• FREQUENCY RESPONSE: 10Hz – 100kHz ±1dB
• INTERMODULATION DISTORTION: (60Hz:7kHz, 4:1) <0.03%
• DAMPING FACTOR: >200
• SPEAKER IMPEDANCE: 4Ω minimum
