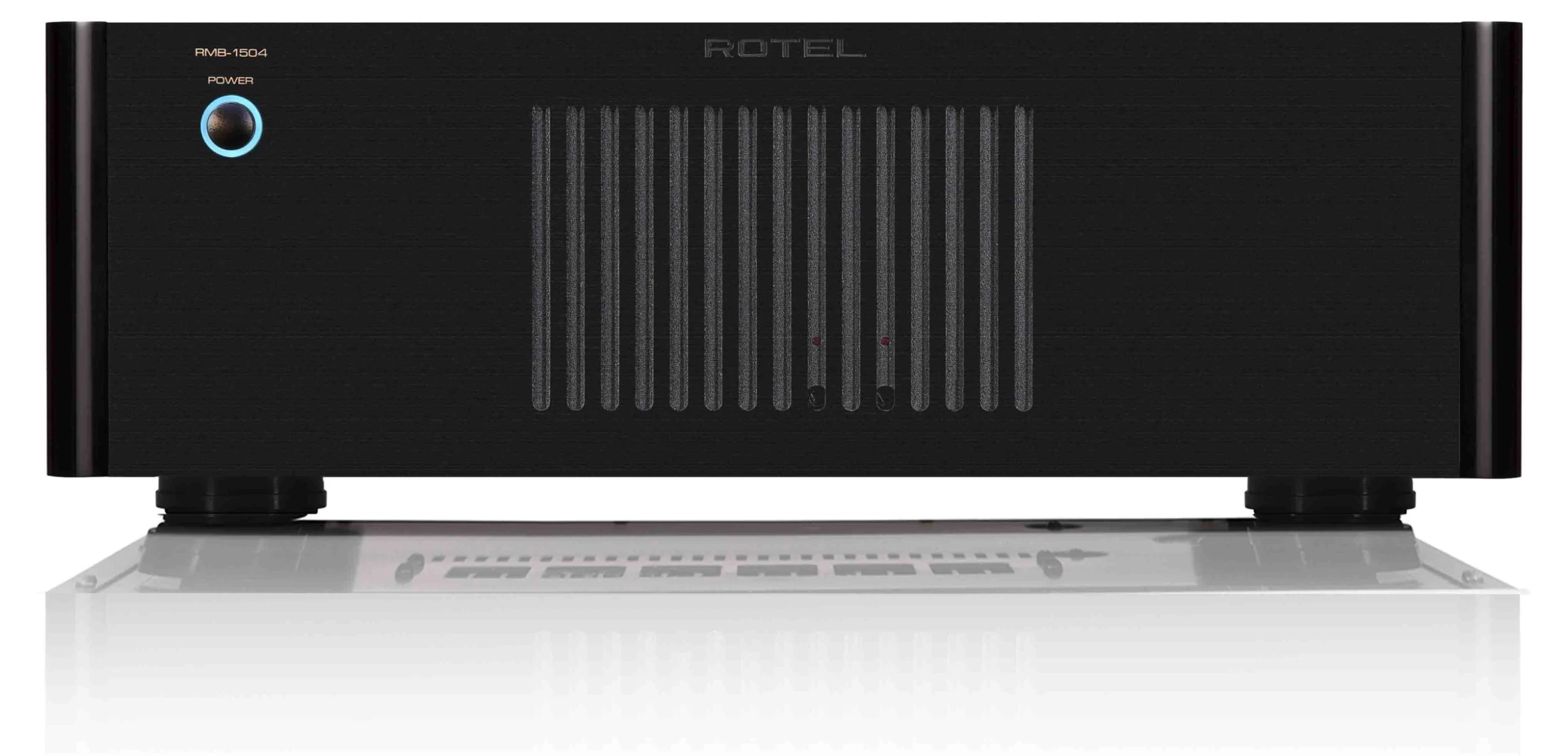

Rotel RMB-1504 4 Channel CI Amplifier

The RMB-1504 Class AB 4-channel amplifier delivers 70 watts per channel into 8 ohms and 115 watts into 4 ohm loads with the ongoing commitment of performance without compromise building on over 55 years of Rotel amplifier engineering, design and manufacturing experience. This amplifier provides power and refinement for object based overhead speakers in home theater installations and the demanding drive required for custom installation and multi-room audio solutions.

FEATURES

• 4 x 70 Watts of robust power
• Class AB amplifier design
• Automatic signal sensing
• 12 volt trigger input

TECHNICAL SPECS

• POWER REQUIREMENTS: 120V, 60Hz
• POWER CONSUMPTION: 450W
• STANDBY POWER CONSUMPTION
• Standby: < 0.5W
• Signal Sense: 1 W
• DIMENSIONS (W × H × D): 431 × 144 × 443mm (17″ × 5.7″ × 17.5″)
• NET WEIGHT: 14.9kg (32.8lbs.)
• TOTAL HARMONIC DISTORTION (THD):(20Hz–20kHz, 8Ω) <0.03%
• FREQUENCY RESPONSE: 10Hz – 100kHz ±1dB
• INTERMODULATION DISTORTION: (60Hz:7kHz, 4:1) <0.03%
• DAMPING FACTOR: >200
• SPEAKER IMPEDANCE: 4Ω minimum
