Rotel RC-1572 MKII Stereo Preamplifier

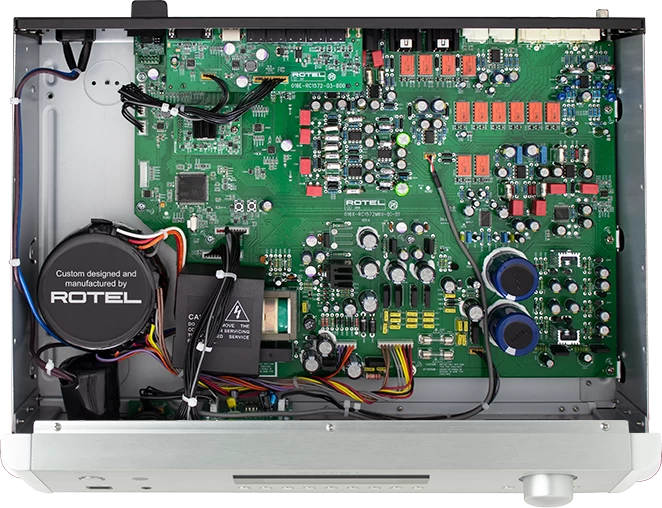

As an essential component in a Hi-Fi audio stack the RC-1572MKII’s precision engineering begins with Rotel’s ultra-low noise power supply including a large, in-house manufactured toroidal transformer. The transformer design reduces stray radiated emissions and feeds a bank of slit-foil, low ESR capacitors delivering stable current to all sensitive circuits reducing noise and distortion with an ultra-quiet noise floor. A premium Texas Instruments 32-bit Digital to Analog converter (DAC) renders the digital sources supported by custom tuned, proprietary external output filters ensuring the audio is effortlessly presented with exceptional dynamic detail and musical expression.

FEATURES

• Certified Roon Tested
• Supports MQA and MQA Studio
• Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
• Moving Magnet Phono input for turntable connection
• Wireless aptX™ and AAC Bluetooth

TECHNICAL SPECS

• POWER REQUIREMENTS: 120V, 60Hz
• POWER CONSUMPTION: 35W
• STANDBY POWER CONSUMPTION: <0.5W
• DIMENSIONS (W × H × D): 431 × 99 × 338mm (17″ × 3.9″ × 13.5″)
• NET WEIGHT: 8.4kg (18.5lbs.)
• TOTAL HARMONIC DISTORTION (THD): (20Hz–20kHz) <0.004%
• FREQUENCY RESPONSE
• Line Level Inputs: 10Hz – 100kHz (+0dB, -0.2dB)
• Digital Inputs: 20Hz – 20kHz (0±0.5dB, Max)
• Phono Input:20Hz – 20kHz (+0.3dB, -0.2dB)
• INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): <0.004%
• INPUT SENSITIVITY
• Line Level Inputs (RCA): 200mV
• Line Level Inputs (XLR): 300mV
• Digital Inputs: 0dBFs
• Phono Input (MM): 3mV
• INPUT IMPEDANCE
• Line Level Inputs (RCA): 100kΩ
• Line Level Inputs (XLR): 100kΩ
• Digital Inputs: 75Ω
• Phono Input (MM): 47kΩ
