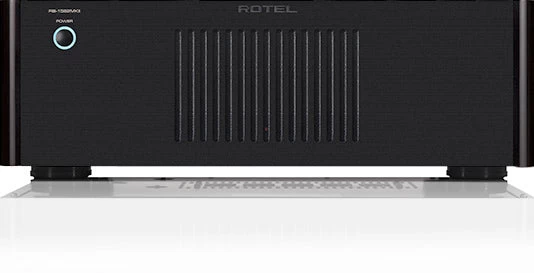

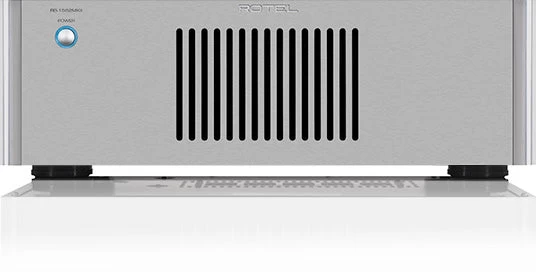

Rotel RB-1582 MKII Stereo Power Amplifier

Rotel’s next largest stereo amplifier at 200 Watts per channel provides the massive current to drive the very largest Hi-Fi systems effortlessly. And like its smaller brother, the RB-1582 MkII has been designed to excel at resolving the subtle details in music as well as supplying the brawn required for extremely dynamic passages. It is able to achieve this difficult dual requirement because of the meticulous attention paid to circuit design and parts selection.

FEATURES

• Power2 x 200 Watts of robust power
• Class AB amplifier design
• High quality slit foil capacitors made in Britain

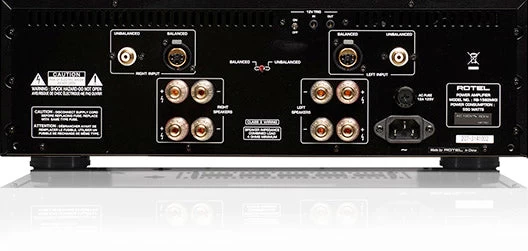

• Balanced XLR inputs
• Rack ears included

TECHNICAL SPECS

• POWER REQUIREMENTS: 120V, 60Hz
• POWER CONSUMPTION: 550W
• STANDBY POWER CONSUMPTION: 0.5W
• DIMENSIONS (W × H × D): 431 × 144 × 407mm (17″ × 5.7″ × 16″)
• NET WEIGHT: 17.6kg (39lbs.)
• TOTAL HARMONIC DISTORTION (THD): (20Hz–20kHz) <0.03%
• FREQUENCY RESPONSE: 10Hz – 100kHz ±0.5dB
• INTERMODULATION DISTORTION: (60Hz:7kHz, 4:1) <0.03%
• DAMPING FACTOR: 800
• INPUT SENSITIVITY
• Line Level Inputs (RCA): 1.9V
• Line Level Inputs (XLR): 3.0V
• INPUT IMPEDANCE
• Line Level Inputs (RCA): 12kΩ
• Line Level Inputs (XLR): 100kΩ
