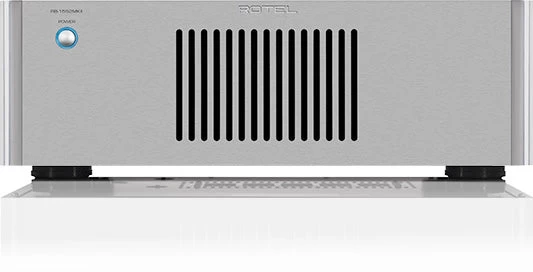

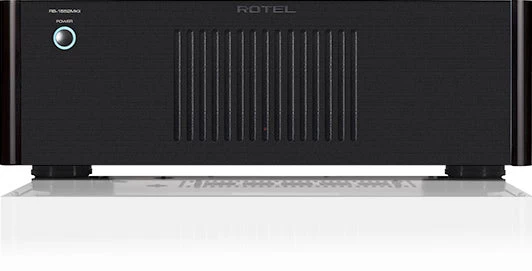

Rotel RB-1552 MKII Stereo Power Amplifier

The RB-1552 MkII is a 130 Watt per channel class AB amplifier. It is engineered to be powerful and robust, yet able to extract every last nuance out of even the most complex musical score. Notable features of the amplifier include independent left and right power rectification stages and decoupling. The layout is essentially a mono block design. Further evidence of design over-spec is in the selection of premium “slit-foil” capacitors, which provide plenty of reserve energy for extremely dynamic audio passages and are able to quickly replenish themselves due to the nature of their unique design. Input options are balanced XLR or unbalanced RCA connectors.

FEATURES

• 2 x 130 Watts of robust power
• Class AB amplifier design
• High quality slit foil capacitors made in Britain
• Balanced XLR inputs
• Rack ears included

TECHNICAL SPECS

• POWER REQUIREMENTS: 120V, 60Hz
• POWER CONSUMPTION: 400W
• STANDBY POWER CONSUMPTION: 0.5W
• CONTINUOUS POWER OUTPUT: 130W/Ch (All channels driven, 8Ω)
• TOTAL HARMONIC DISTORTION (THD): (20Hz–20kHz) <0.03%
• FREQUENCY RESPONSE: 10Hz – 100kHz ±0.5dB
• INTERMODULATION DISTORTION: (60Hz:7kHz, 4:1) <0.03%
• DAMPING FACTOR: 450
• INPUT SENSITIVITY
• Line Level Inputs (RCA): 1.5V
• Line Level Inputs (XLR): 2.5V
• INPUT IMPEDANCE
• Line Level Inputs (RCA): 12kΩ
• Line Level Inputs (XLR): 100kΩ
