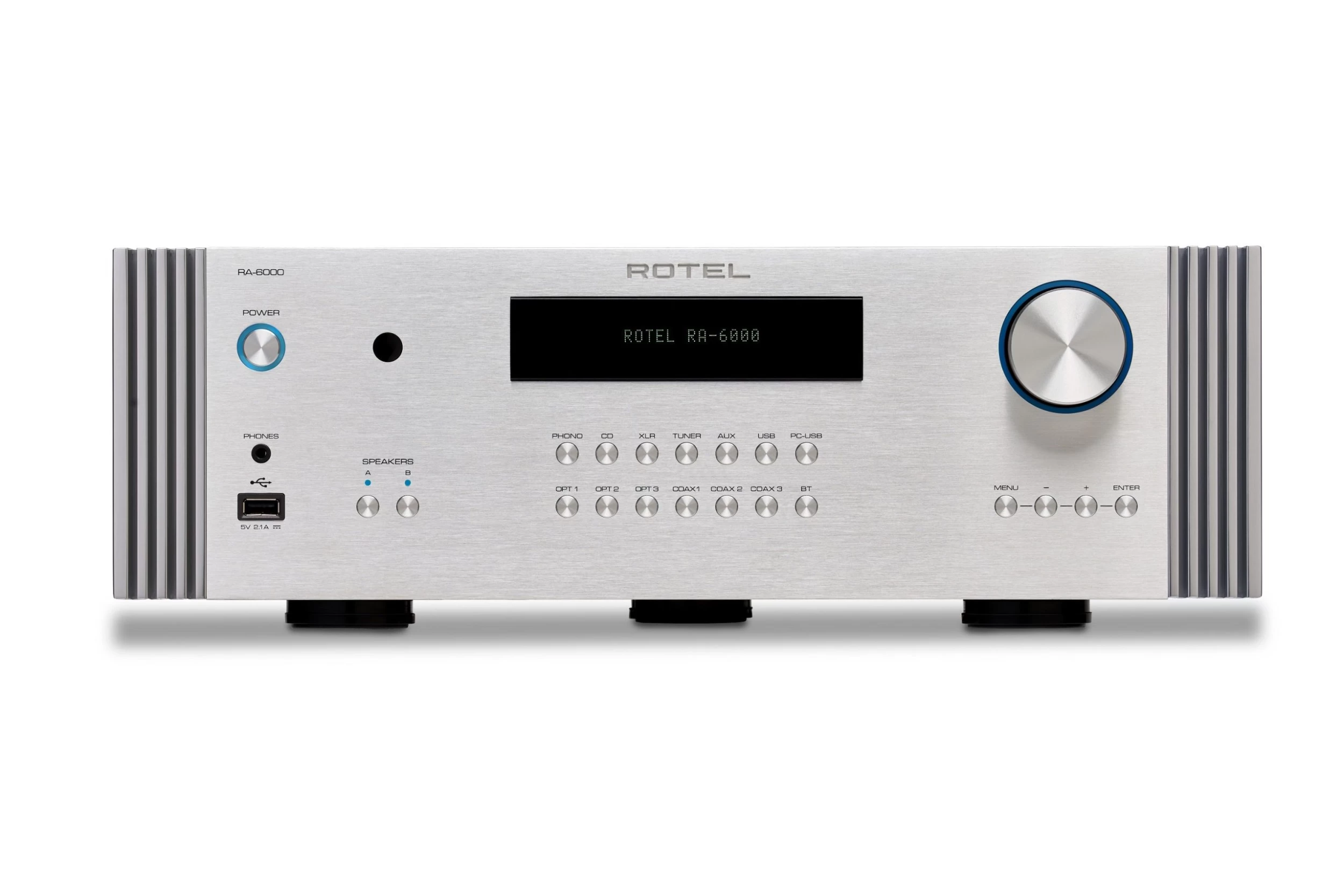

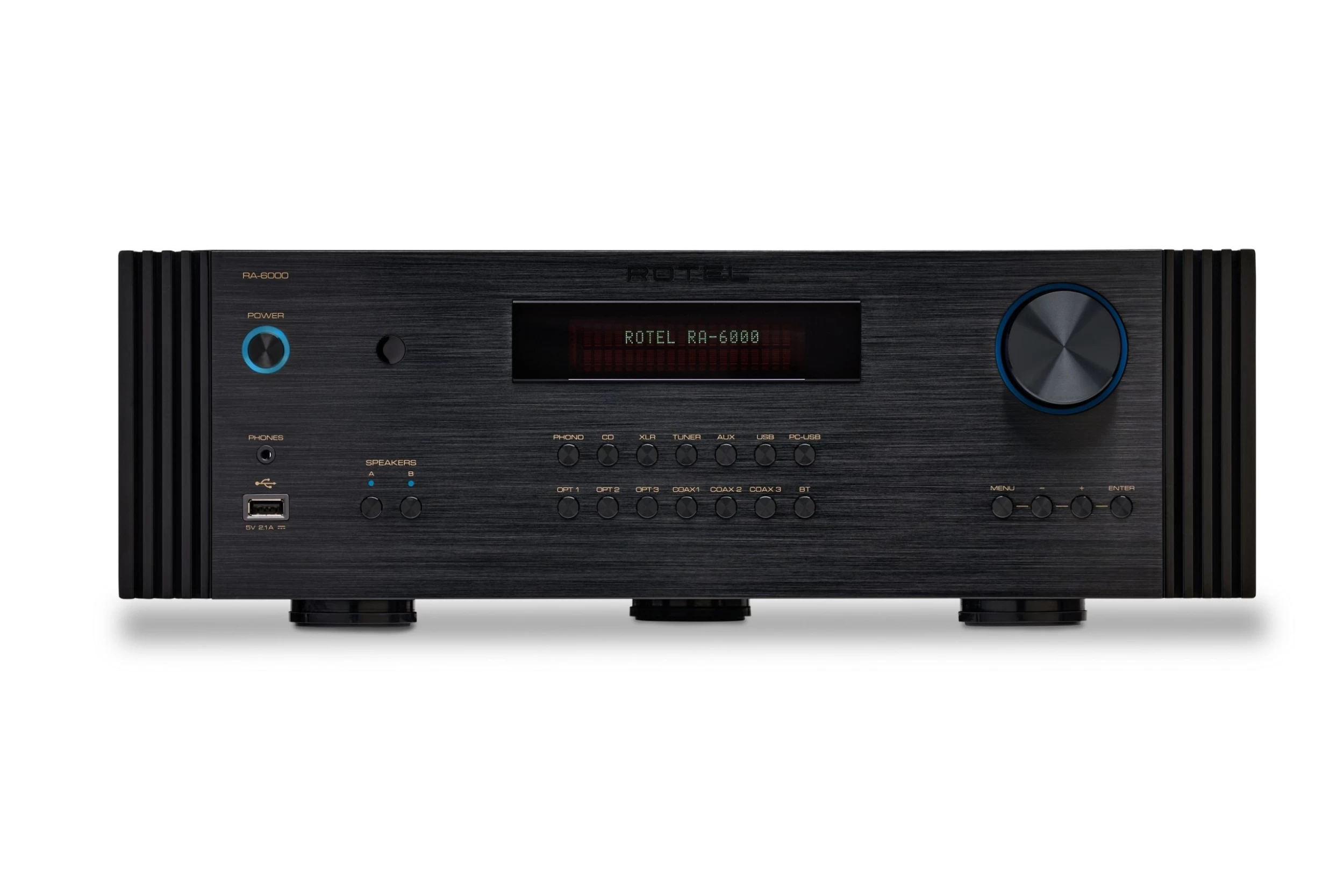

Rotel RA-6000 Diamond Series Integrated Amplifier

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested. A Moving Magnet Phono stage is also included for vinyl fans.

FEATURES

• 2 x 350 Watts of robust Class AB power, 4 Ohms
• Wireless aptX™ HD and AAC Bluetooth
• Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
• Balanced XLR inputs
• Supports MQA and MQA Studio
• Certified Roon Tested

TECHNICAL SPECS

• Maximum Power Output: 350 watts/ch (4 ohms)
• Continuous Power Output: 200 watts/ch (8 ohms)
• Total Harmonic Distortion: < 0.0075%
• Frequency Response
• Phono Input 20 Hz – 20k Hz, 0 ± 0.5 dB
• Line Level Inputs 10 Hz – 100k Hz, 0 ± 0.5 dB
• Damping Factor: 600 (20 Hz – 20 kHz, 8 ohms)
• Input Sensitivity / Impedance
• Phono Input (MM) 5.2 mV / 47k ohms
• Line Level Inputs (RCA) 340 mV / 5.6k ohms
• Line Level Inputs (XLR) 540 mV / 100k ohms
• Input Overload
• Phono Input (MM) 52 mV
• Line Level Inputs (RCA) 3.5 V
• Line Level Inputs (XLR) 4.5 V
• Preamplifier Output / Impedance: 1.9 V / 100 ohms
• Signal to Noise Ratio
• Phono Input (MM) 80 dB
• Line Level Inputs 103 dB
• Power Requirements: USA 120 V, 60 Hz
• Power Consumption 500 watts
• Standby Power Consumption
• Normal < 0.5 watts
• Network Standby < 2 watts

Dimensions (W x H x D): 17 x 5 7/8 x 16 in Weight (net): 41.47 lbs
