Rotel A14 MKII Stereo Integrated Amplifier

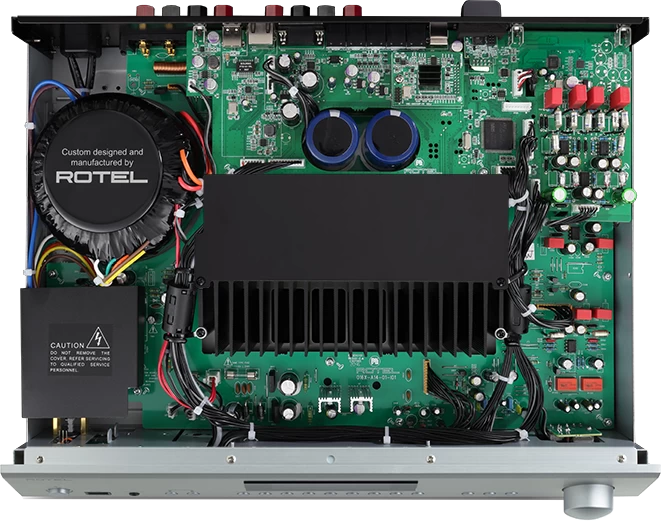

The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance. A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

FEATURES

• Certified Roon Tested
• Supports MQA and MQA Studio
• 2 x 150 Watts of robust Class AB power, 4 Ohms
• Moving Magnet Phono input for turntable connection turntable
• Wireless aptX™ and AAC Bluetooth

TECHNICAL SPECS

• POWER REQUIREMENTS: 120V, 60Hz
• POWER CONSUMPTION: 280W
• STANDBY POWER CONSUMPTION: <0.5W
• MAXIMUM POWER OUTPUT: 150W/Ch (4Ω)
• CONTINUOUS POWER OUTPUT: 80W/Ch (8Ω)
• TOTAL HARMONIC DISTORTION(THD): <0.018%
• FREQUENCY RESPONSE
• Line Level Inputs:10Hz – 100kHz, ±0.5dB
• Digital Inputs:10Hz – 90kHz, ±2.0dB, Max
• Phono Input:20Hz – 15kHz, ±0.5dB
• DAMPING FACTOR: 220
• INPUT SENSITIVITY
• Line Level Inputs: 230mV
• Digital Inputs: 0dBfs
• Phono Input (MM): 3.4mV
