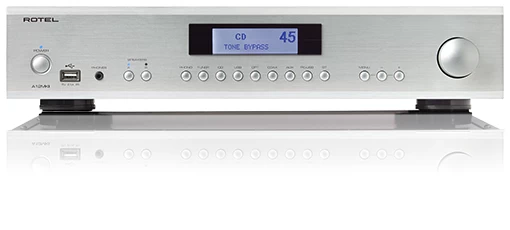

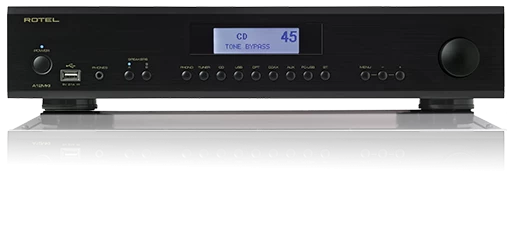

Rotel A12 MKII Stereo Integrated Amplifier

The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers. Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms. A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favorite sources.

FEATURES

• 2 x 60 Watts of robust Class AB power
• Moving Magnet Phono Input for Turntable connection
• Wireless aptX™ Bluetooth
• Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
• Certified Roon Tested

TECHNICAL SPECS

• POWER REQUIREMENTS: 120V, 60Hz
• POWER CONSUMPTION: 230W
• STANDBY POWER CONSUMPTION: <0.5W
• DIMENSIONS (W × H × D): 430 × 93 × 345mm (17″ × 3.6″ × 13.5″)
• NET WEIGHT8.76kg (19.31lbs.)
• TOTAL HARMONIC DISTORTION (THD): <0.018%
• FREQUENCY RESPONSE
• Line Level Inputs: 10Hz – 100kHz, 0±0.5dB
• Digital Inputs: 10Hz – 90kHz, 0±2dB
• Phono Input: 20Hz – 20kHz, 0±0.5dB
• DAMPING FACTOR: 220
• INPUT SENSITIVITY
• Line Level Inputs: 230mV
• Digital Inputs: 0dBfs
• Phono Input (MM): 3.4mV
• INPUT IMPEDANCE
• Line Level Inputs: 24kΩ
• Digital Inputs: 75Ω
• Phono Input (MM): 47kΩ
