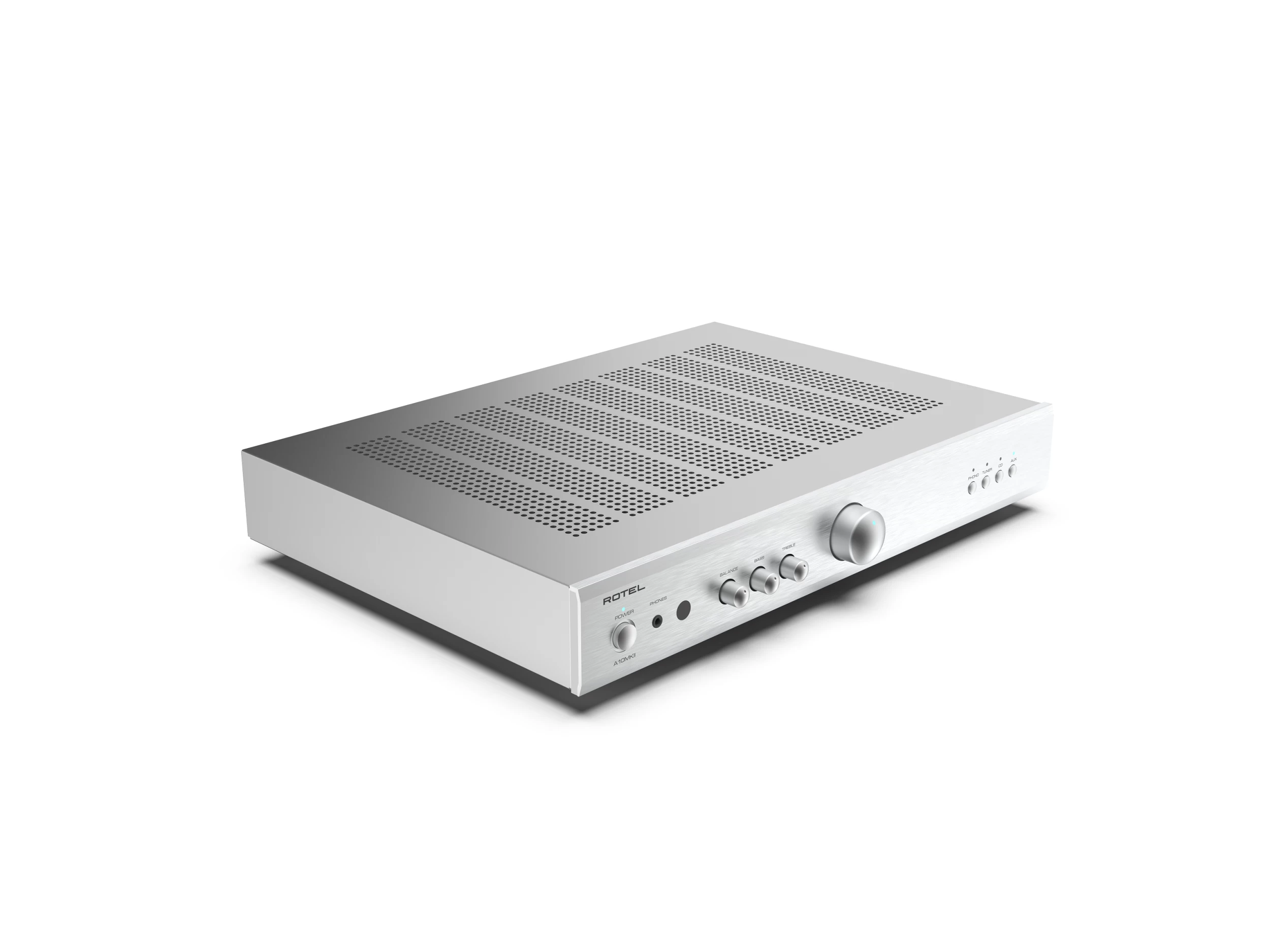

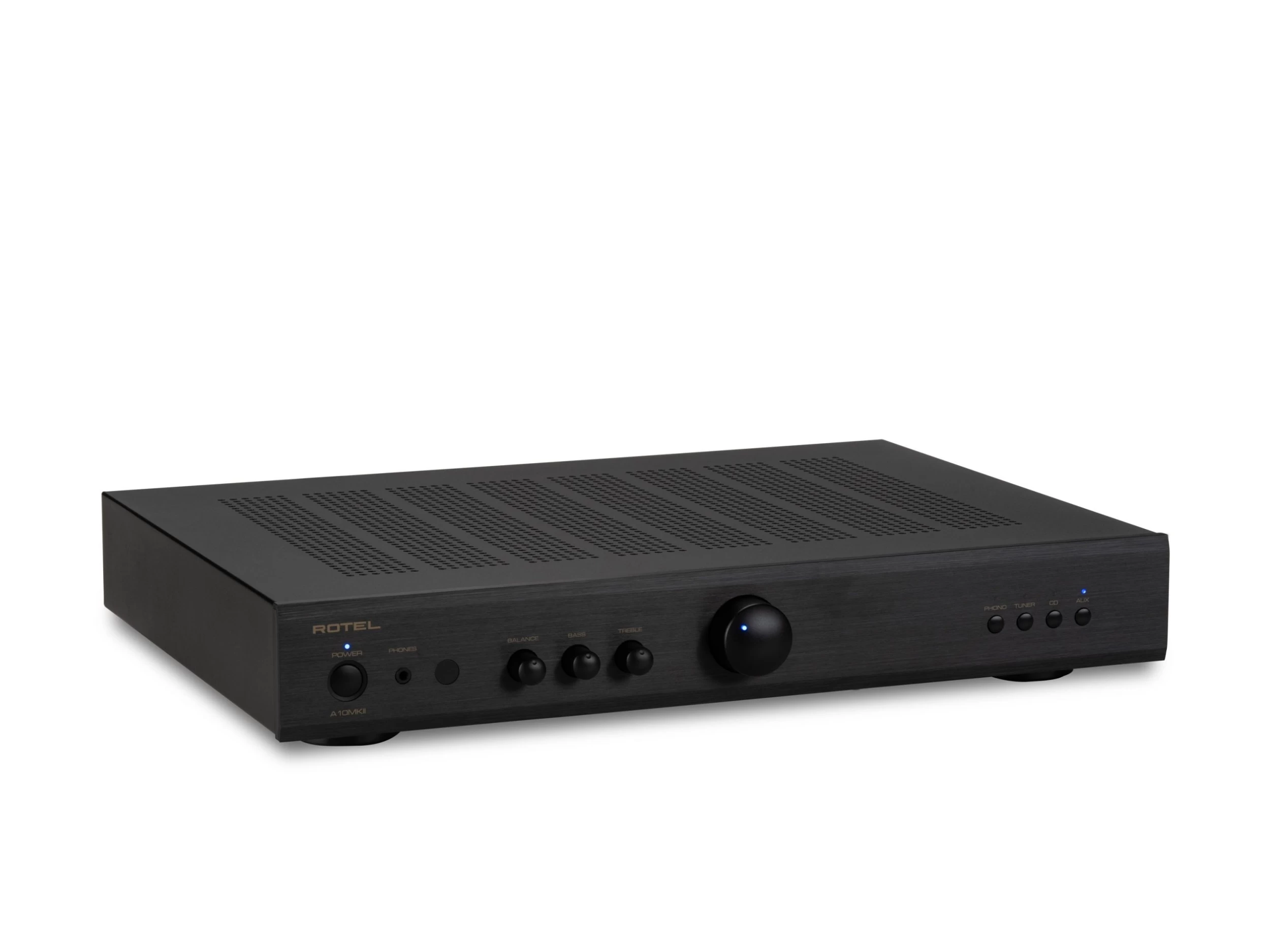

Rotel A10 MKII Integrated Amplifier

The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience.

Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A10MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher into more challenging loudspeakers.

All analog sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

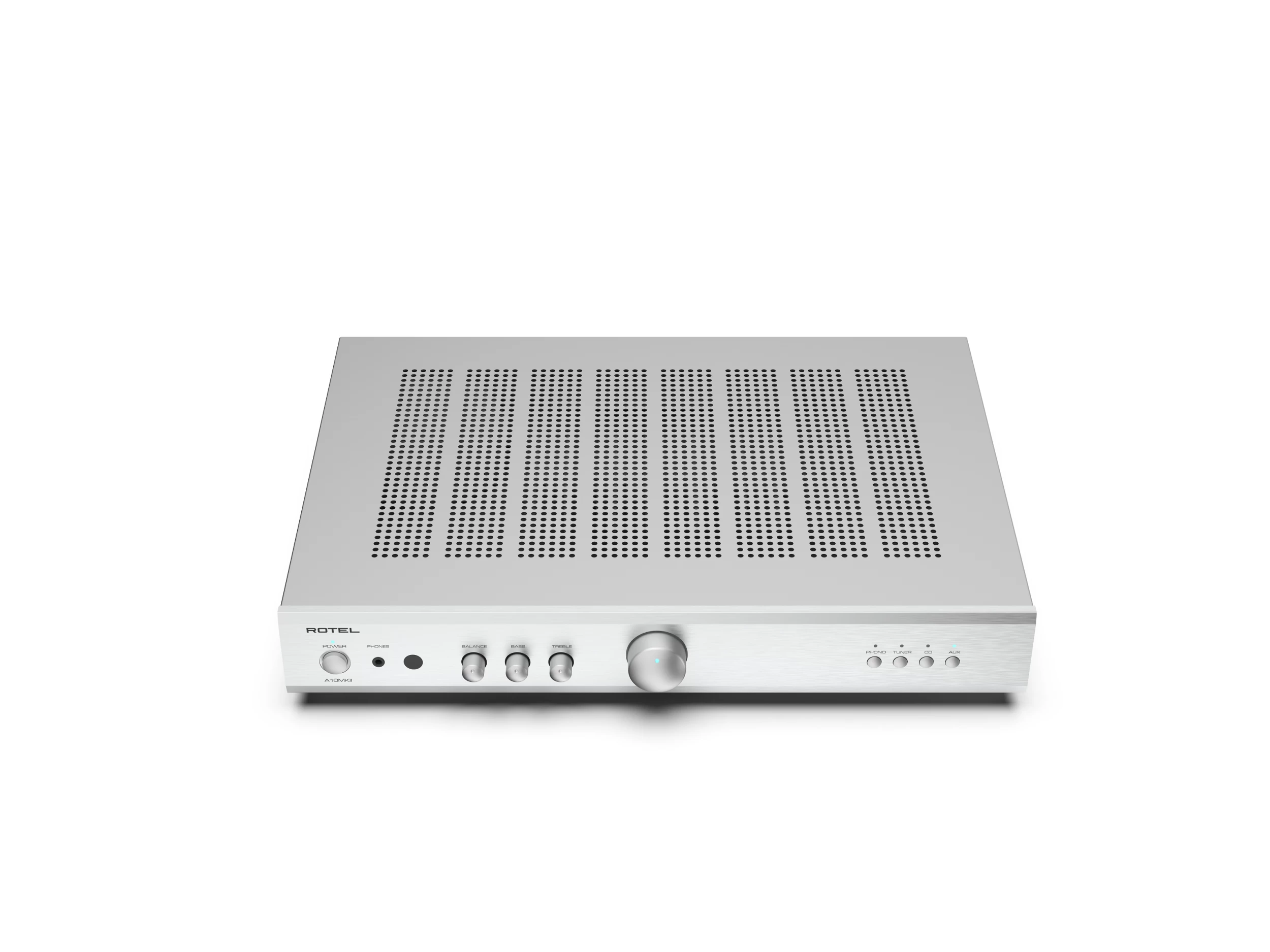

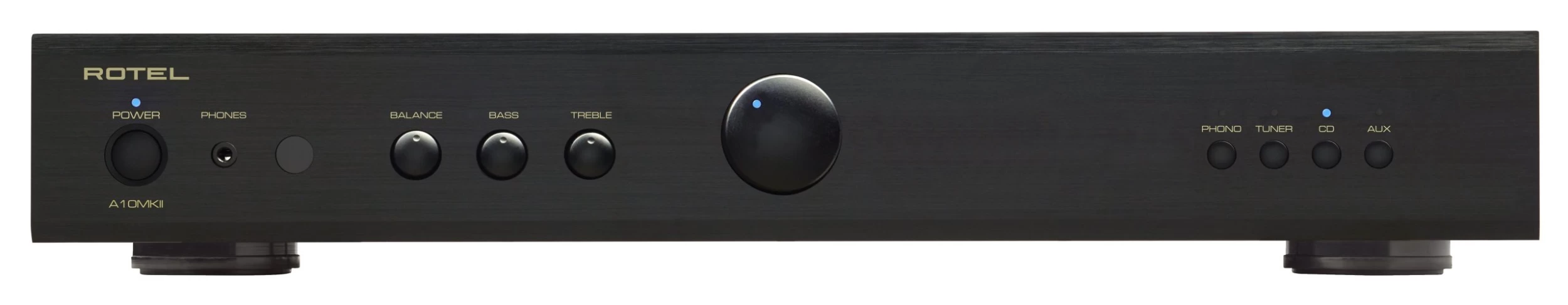

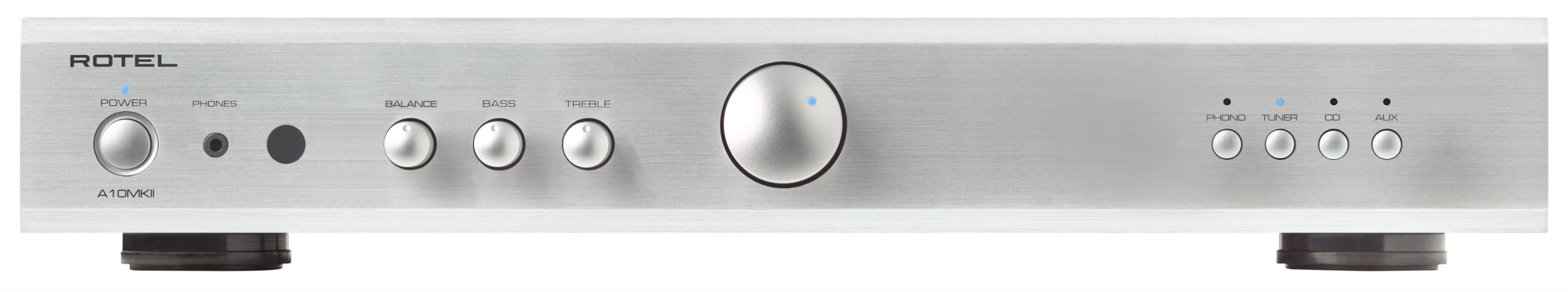

An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat.

FEATURES

• 2 x 50 Watts of robust Class AB power, 8 Ohms
• Moving Magnet Phono Stage input for turntable connection

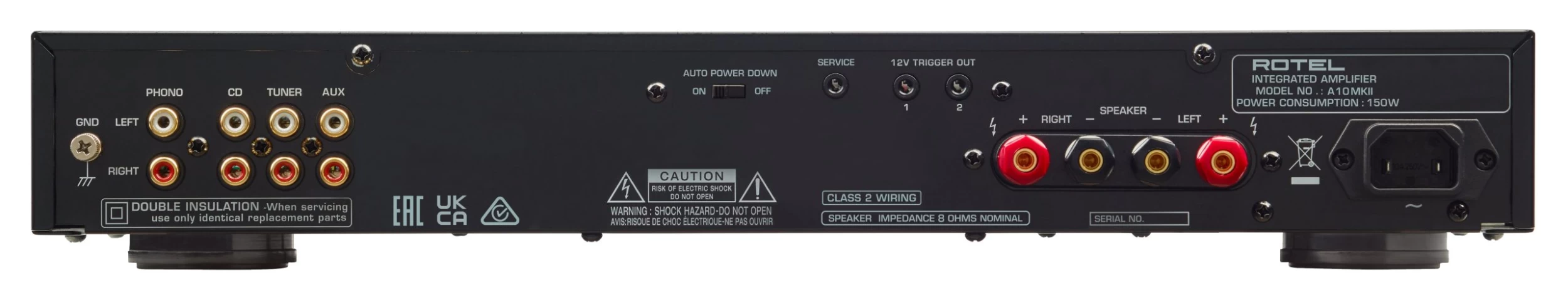

• 3 RCA analog inputs
• Includes Remote Control
• High current power supply

TECHNICAL SPECS

• Power Output: 50 Watts / ch (8 Ohms)
• Total Harmonic Distortion: < 0.03%
• Intermodulation Distortion: < 0.03%
• Frequency Response
• Phono input: 20 Hz – 20k Hz, -0.5 dB, +0.3 dB
• Line Level Inputs: 10 Hz – 100k Hz, -0.5 dB, +0.05 dB
• Damping Factor: 120
• Input Sensitivity / Impedance
• Phono input: 1.5 mV / 43k Ohms
• Line Level Inputs: 120 mV / 45k Ohms
• Input Overload
• Phono input: 50 mV
• Line Level Inputs: 4 V
