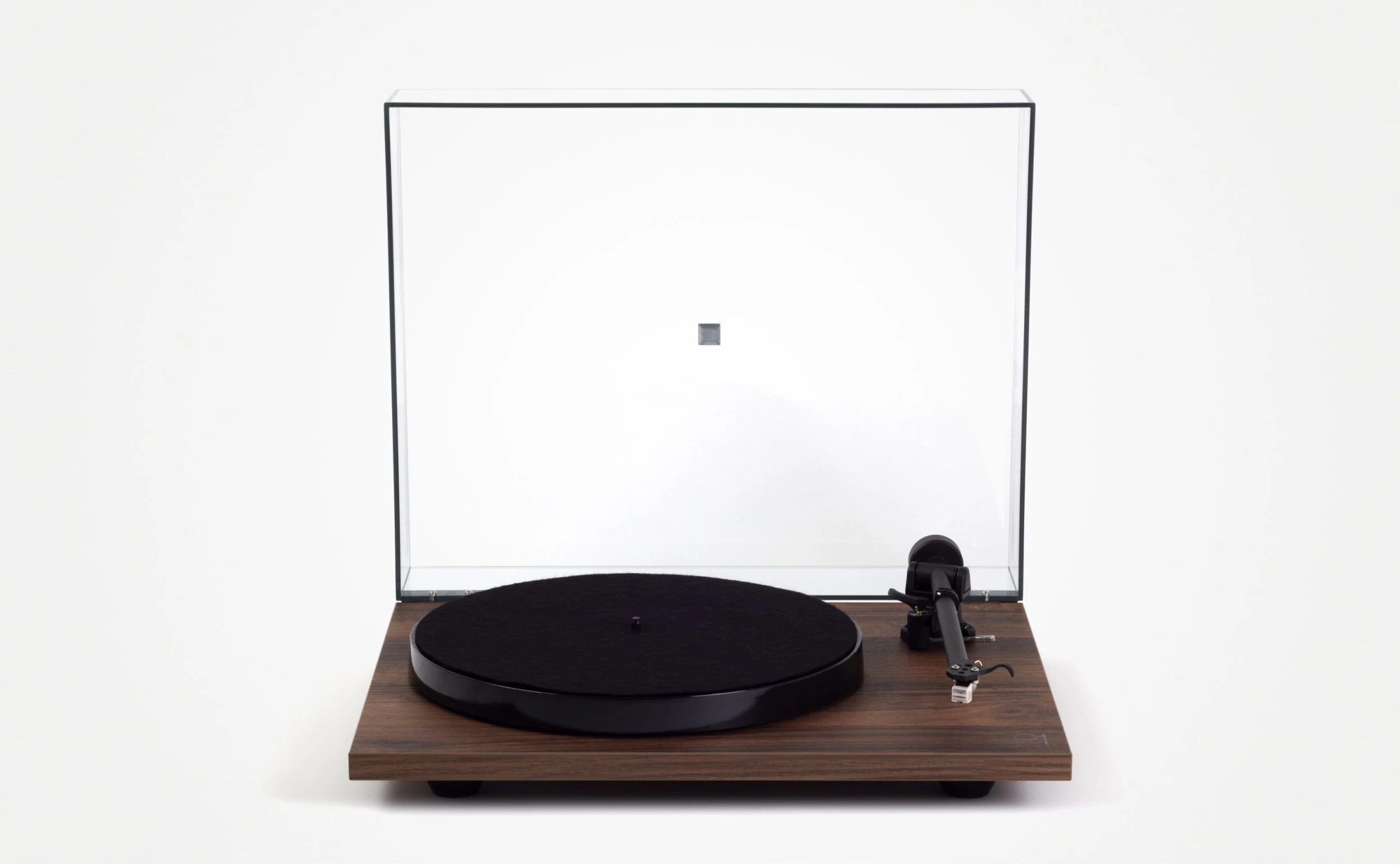

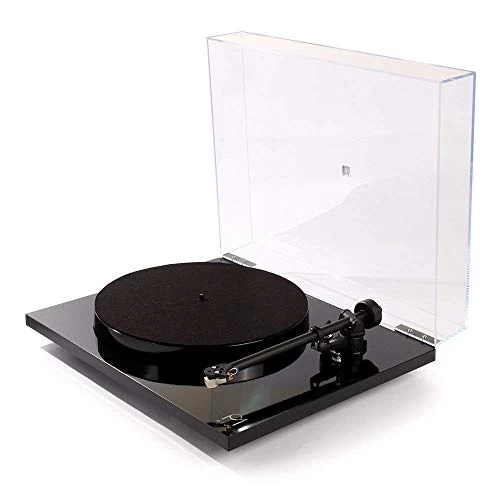

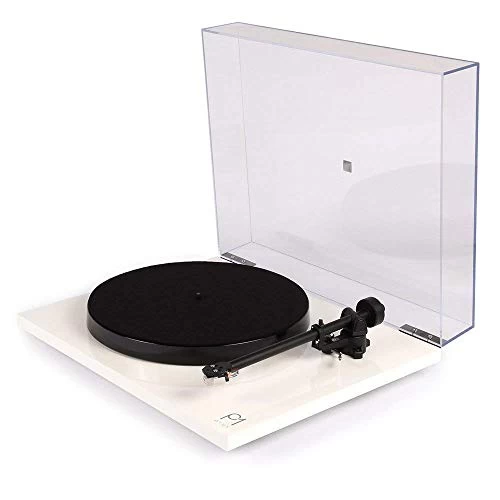

REGA Planar 1 Plus Turntable With RB110 Tonearm And Carbon MM Cartridge

We asked ourselves, how do we make the most successful turntable we have ever made sound better, be even easier to use and be more accessible to a wider audience? The answer was simple; our engineers added a custom designed, high quality, moving magnet phono stage based around the multi-award winning Fono Mini. For the Planar 1 Plus, we wanted to optimize this circuit for ultimate performance so we have removed the USB interface and used the money saved to improve what was already a stunning disc stage.

FEATURES

• Built-in Phono Stage
• Brand new RB110 tonearm built with the new Rega designed, bespoke, zero play bearings with ultra-low friction performance.
• Rega Carbon moving magnet cartridge supplied fitted as standard.
• 24v, synchronous AC motor with a new motor PCB and aluminum pulley offering low noise and better speed stability.
• Brand new Thermoset, gloss laminated plinth with vastly improved appearance and new ergonomically positioned on/off switch located on the underside. Two stunning plinth finishes available, gloss
• 23mm, high mass, phenolic platter with improved flywheel effect for improved speed stability.
• New improved feet to increase stability and reduce vibration transfer.

TECHNICAL SPECS

• Maximum Output Level (3.54 cm/s RMS 45 degrees CBS STR100 Band 6a and 7a): 370-410 mV
• Output Impedance: 1 kΩ
• Frequency Response (pre-amplifier only): 14 Hz (-3 dB Point) to 100 kHz (-0.6 dB Point)
• RIAA Accuracy (pre-amplifier only): (100 Hz to 20 kHz) ± 0.4 dB typically better than ± 0.25 dB
• Pre-amplifier Gain: 40 dB
• Pre-amplifier Input Loading: 47 kΩ in parallel with 220 pF
• Signal to Noise Ratio: -75 dB A-weighted ref maximum output.
• Power Requirements: 50 Hz 24 V AC 0.142 mA 3.4 W – 60 Hz 24 V AC 0.129 mA 3.1 W
• Dimensions (lid closed) H 11.7 x W 44.7 x D 36 cm
• Weight 4.35kg
