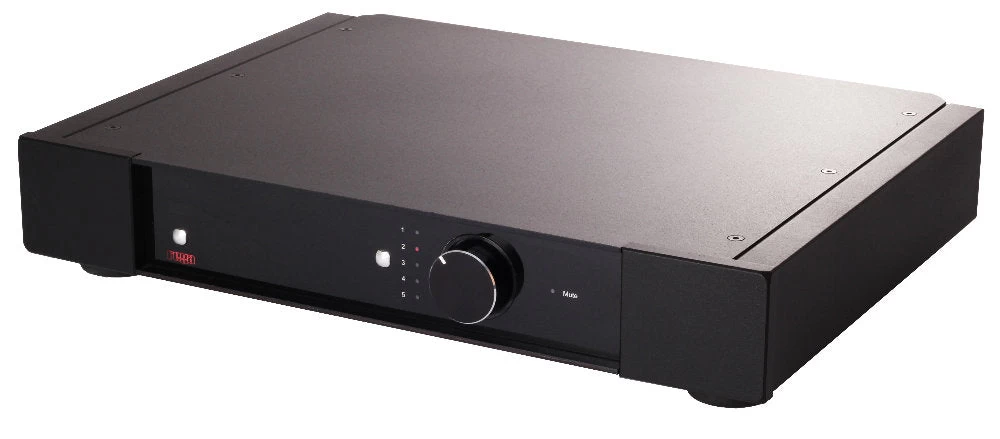

Rega Elex-R Integrated Amplifier

The Elex-R is a sublime blend of the Brio-R design with the power circuits and advanced phono stage of the Elicit-R. Rega’s engineers have achieved the perfect balance of power, control, and dynamics, delivering a performance that always puts the music first. You will find plenty of connectivity options allowing complete flexibility and integration within the rest of the Rega range.

FEATURES

• Rega custom full-width case with improved heat dissipation
• Combined feedback & passive volume control pre-amp
• High specification integrated phono stage
• Enhanced power supplies for the driver stage
• Dedicated mini remote handset included
• New custom transformer

TECHNICAL SPECS

• Power Supply
• Voltage: 230v & 115v
• Frequency: 50/60Hz
• Power Consumption: 250 Watts
• 230v Fuse: T3.15AL 20mm
• 115v Fuse: T5AL 20mm
• Dimensions W 430mm x D 320mm x H 80mm
• 72.5W 8Ω both channels driven – Design centre rating
• 90W 6Ω both channels driven – Rega speaker impedance rating
• 113W 4Ω both channels driven
• Sensitivity (72.5W 8Ω1.7mV (Load 47K in parallel with 220pF)
• Maximum input level: 100mV
• Line input
• Sensitivity (72.5W 8Ω 164mv (Load 30-50K)
• Maximum input level: 10v
• Tape output
• Level: 164mV with rated input
• Output impedance: 470
• Level: 625mV with rated input
• Output impedance: 600 ohms
