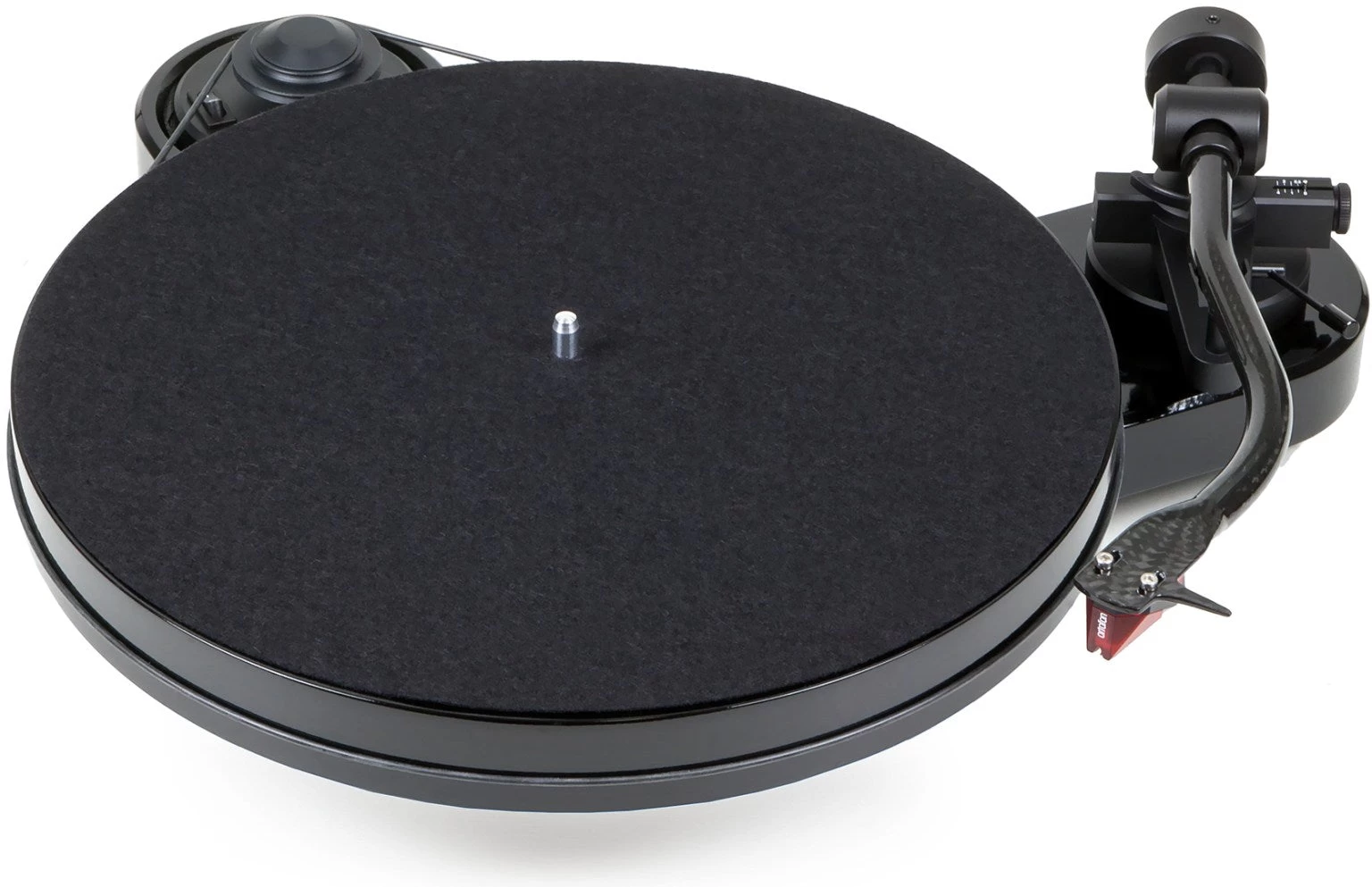

Pro-Ject RPM 1 Carbon Manual Turntable With 8.6” Carbon Tonearm

The entry into the RPM world

RPM 1 Carbon utilizes a lot of innovations and enhancements: A low resonance chassis holds a newly designed inverted platter bearing with a ceramic ball for a further reduced rumble. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. A completely new designed S-shaped tonearm tube is made from carbon fiber, aluminum, and resin. Using a complex 3-step process with heat treatment and 100 bar pressure, the arm tube rigidity is strengthened, internal damping is maximized and resonances are reduced to a minimum. This makes the tonearm also suitable for MC cartridges. Additional features are a new magnetic anti-skating mechanism and a TPE-damped counterweight.



The RPM 1 Carbon is available with or without Ortofon 2M Red cartridge. A super shielded, semi-symmetrical, low-capacitance Pro-Ject Connect it E phono cable is included.

FEATURES

• Precision belt drive using synchronous motor
• Ultra-precision DC-driven AC generator motor power
• Inverted platter bearing with ceramic ball
• Platter made from MDF using felt mat
• 8,6” S-shaped tonearm made from carbon, aluminum, resin utilizing special heat and pressure treatments
• Magnetic anti-skating
• Counterweight with TPE damping
• Available with or without Ortofon 2M Red cartridge

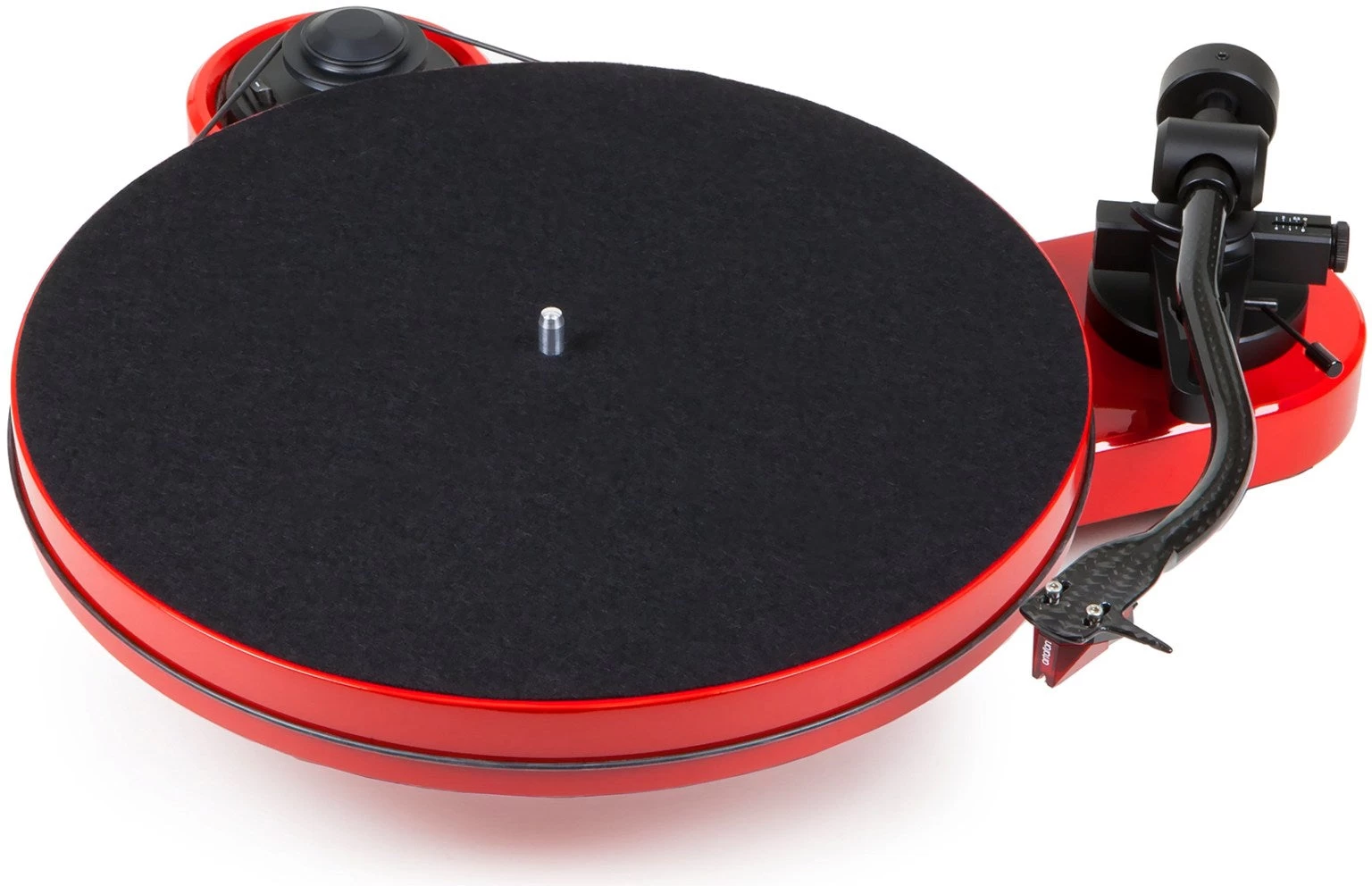

• 3 high-gloss colors (black, red, white)

TECHNICAL SPECS

• Speed 33, 45 (manual speed change)
• Drive principle Belt drive
• Platter 300 mm MDF
• Mains bearing Stainless steel axle with ceramic ball
• Wow & flutter 33: +/- 0.27% I 45: +/- 0.1%
• Speed drift 33: +/- 0.14% I 45: +/- 0.13%
• Signal to noise – 71dB
• Tonearm 8.6” carbon; aluminum and resin
• Effective arm length 218.5 mm
• Effective arm mass 13.5 g
• Overhang 22 mm
• Tracking force 0 – 25mN
• Included accessories 15 volts DC / 500 mA power supply
• Power connection 110/240 Volt – 50 or 60 Hz
• Power consumption 5 watt max / < 0,5 watt standby
• Dimensions 380 x 110 x 350mm (WxHxD)
• Weight 3.8 kg net

In the box:

• Sumiko Rainier Cartridge

• Connect it E Phono Cable
• Felt mat
• Adapter for 7“ singles
• Power supply
• Allen key, stylus pressure gauge
