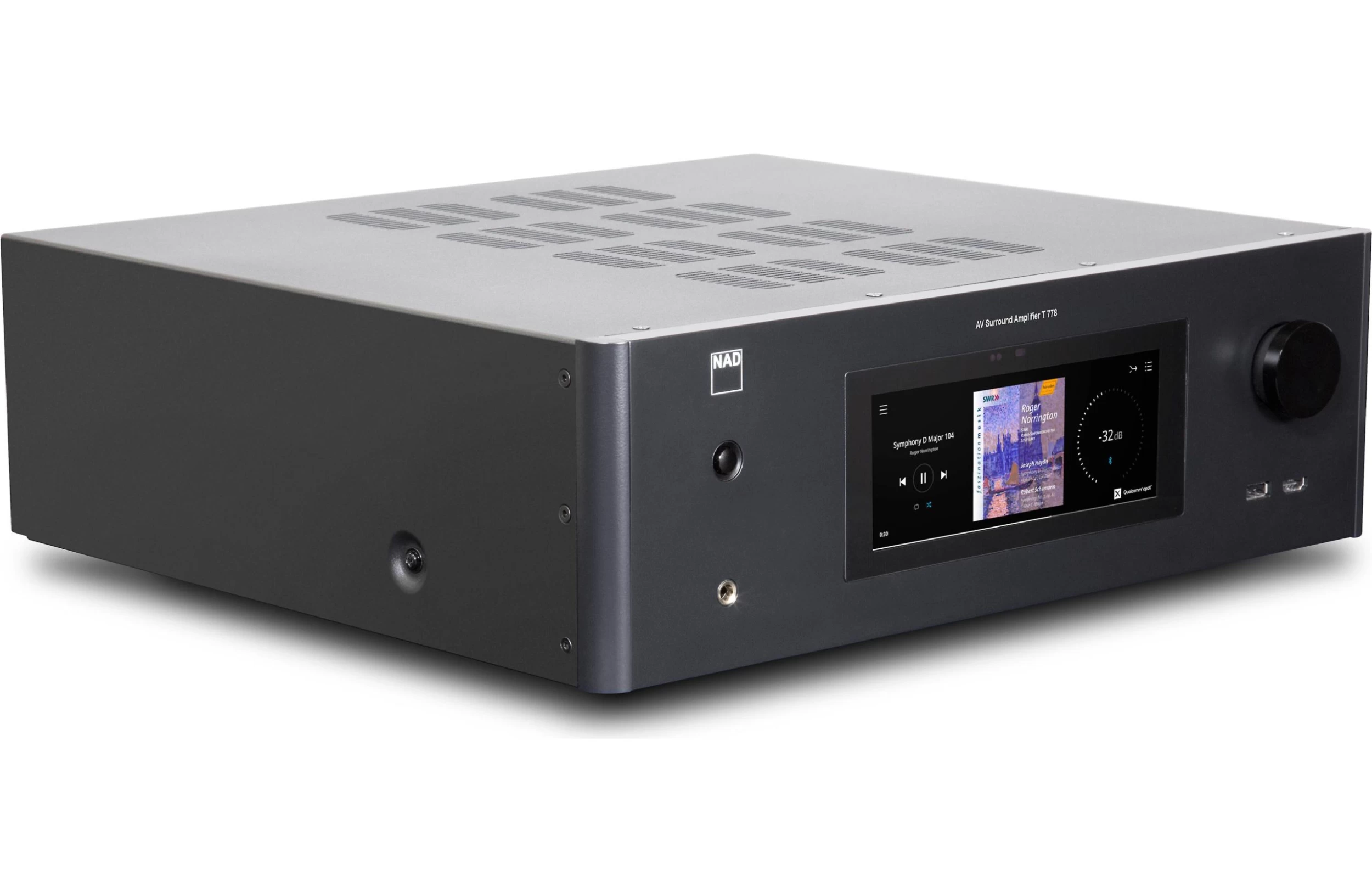

NAD’s reference Audio Video Receiver (AVR) is a cutting-edge powerhouse for state of the art music and home theater. Well known for our high value/ high performance reputation in the AVR category, the brand’s reference model builds on that legacy with an expansion of unwavering philosophy of real-world performance, simplicity of operation, and future upgradeability.

Surround yourself with perfection. The T 778 represents NAD’s unwavering philosophy of real-world performance, simplicity of operation, and future upgradability. Only NAD offers Modular Design Construction (MDC), our proven method for preventing premature obsolescence. Dolby®Atmos™ and DTS® Master Audio combine with Dirac Live™ room correction to deliver hyper-realism that captures every dimension of a performance. Add bit-perfect UHD 4K video pass-through and the T 778 delivers the most accurate sound and image experience you’ve ever had. Musical performance is outstanding with High Res Multi-room streaming via BluOS and nine channels of high current amplification capable of powering any loudspeaker to its maximum potential. The T 778 is second-to-none in terms of flexibility and up-to-the-minute digital technology.

FEATURES

140 Watts FTC power at 8 Ohms and 170 Watts at 4 Ohms
9 x 85 Watts FDP (Full Disclosure Power), all channels drivensimultaneously at full bandwidth at rated distortion
165 Watts IHF Dynamic Power at 8 Ohms and 280 Watts at4Ohms
Hybrid Digital Amplifier Technology
TFT touch screen and improved ergonomics for user-friendlyoperation
UHD 4K video pass-through•HDMI CEC/eARC
High-Res BluOS enabled Network Streaming• Dirac Live Room Correction
MQA decoding available on all digital inputs•Apple AirPlay2
MDC (Modular Design Construction) offers ability toupgradeto future digital formats as they become available.Two MDCslots provided.
CI friendly- RS232 Serial Control Port.
12V Trigger In/Out• IR In with learning function
3U Low profile rack-mount chassis
Gross Dimensions: 17 1/8 x 6 13/16 x 16 3/4” (W x H x D)

TECHNICAL SPECS

AMPLIFIER
FTC
8 Ohms: 140W (21.5dBW)
4 Ohms: 170W (22.3dBW)
Full Disclosure Power (all channels driven simultaneously at full bandwidth at rated distortion): 9 x 85W
IHF Dynamic Power
8 Ohms: 165W (22.2dBW)
4 Ohms: 280W (24.5dBW)
Total harmonic distortion at rated power <0.08%
IM distortion at 1/3 rated power: <0.03%
Damping factor: >300 (20Hz-1kHz, 8 ohms)
Input sensitivity and impedance: 1.12Vrms (ref. 8 Ohms, VOL at 0dB)
Frequency response: +0.3/-0.8dB (ref. 1kHz, 20Hz-20kHz)
Signal/noise ratio: >100dB (ref. rated power at 8 Ohms, A-Weighted)
Signal/noise ratio: >85dB (ref. 1W at 8 Ohms, A-Weighted)
