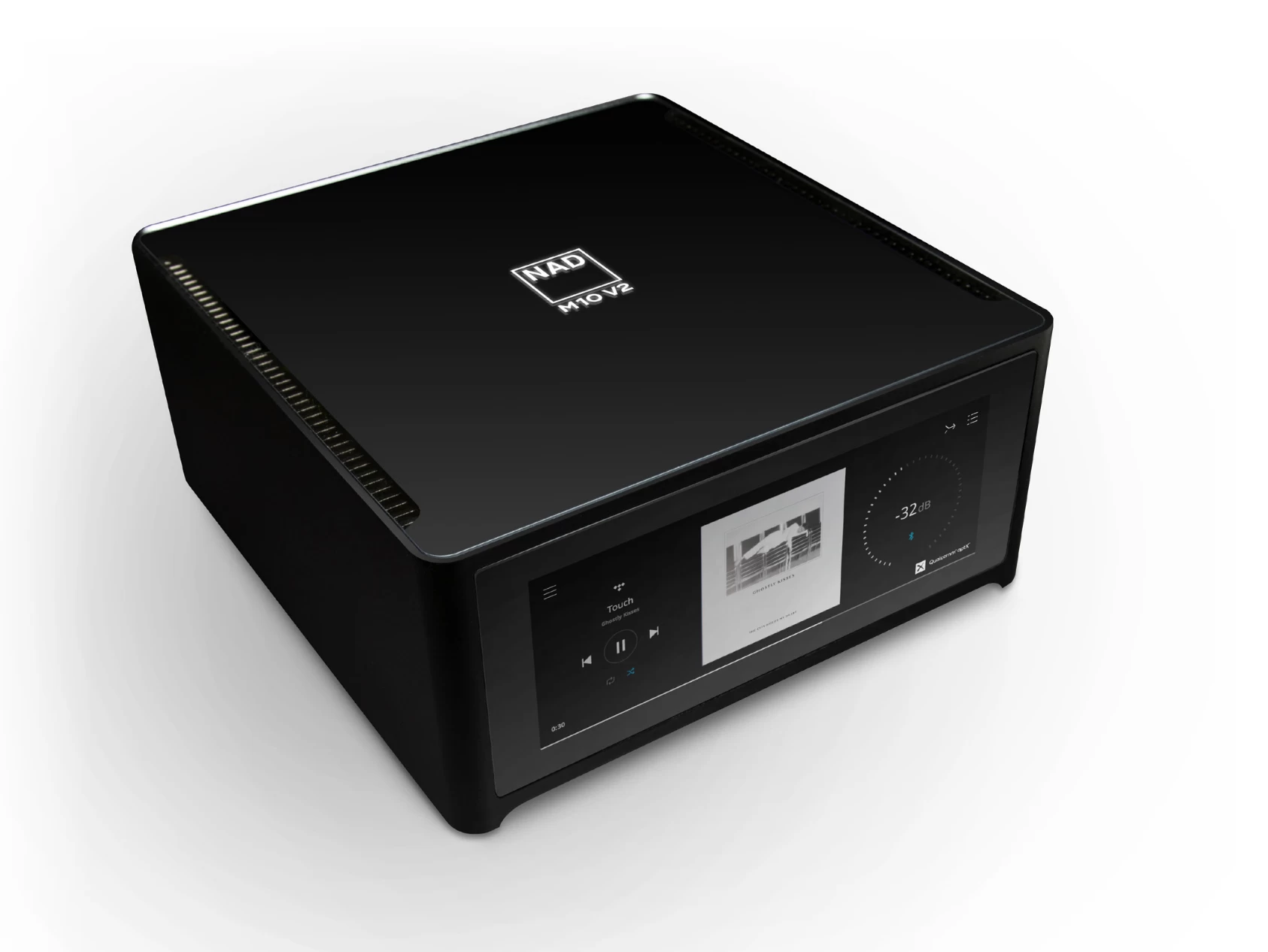

Combining a sophisticated music streamer and powerful 100-watt-per-channel amplifier in one super-stylish component, the NAD M10 V2 BluOS Streaming Amplifier is made for the way people listen to music today. The M10 V2 is based on the acclaimed BluOS multi-room music platform, which has integrated support for dozens of streaming services. You can queue up any music you want using the intuitive BluOS app, and hear it in glorious high fidelity through your favourite loudspeakers. The M10 V2 improves on its award-winning predecessor by adding a remote control, updated gain algorithms, and an easy upgrade path to Dolby Digital surround sound.

FEATURES

BluOS Streaming Amplifier
Wireless 4.0, 4.1 and 4.2 channel surround options by adding BluOS Enabled players like the PULSE FLEX and PULSE SUB by Bluesound
Hybrid Digital nCore Amplifier with updated gain algorithms
Continuous Power: 100W into 8/4 Ohms
Dynamic Power: 160W into 8 Ohms 300W into 4 Ohms
32-bit/384kHz ESS Sabre DAC
Dirac Live Room Correction

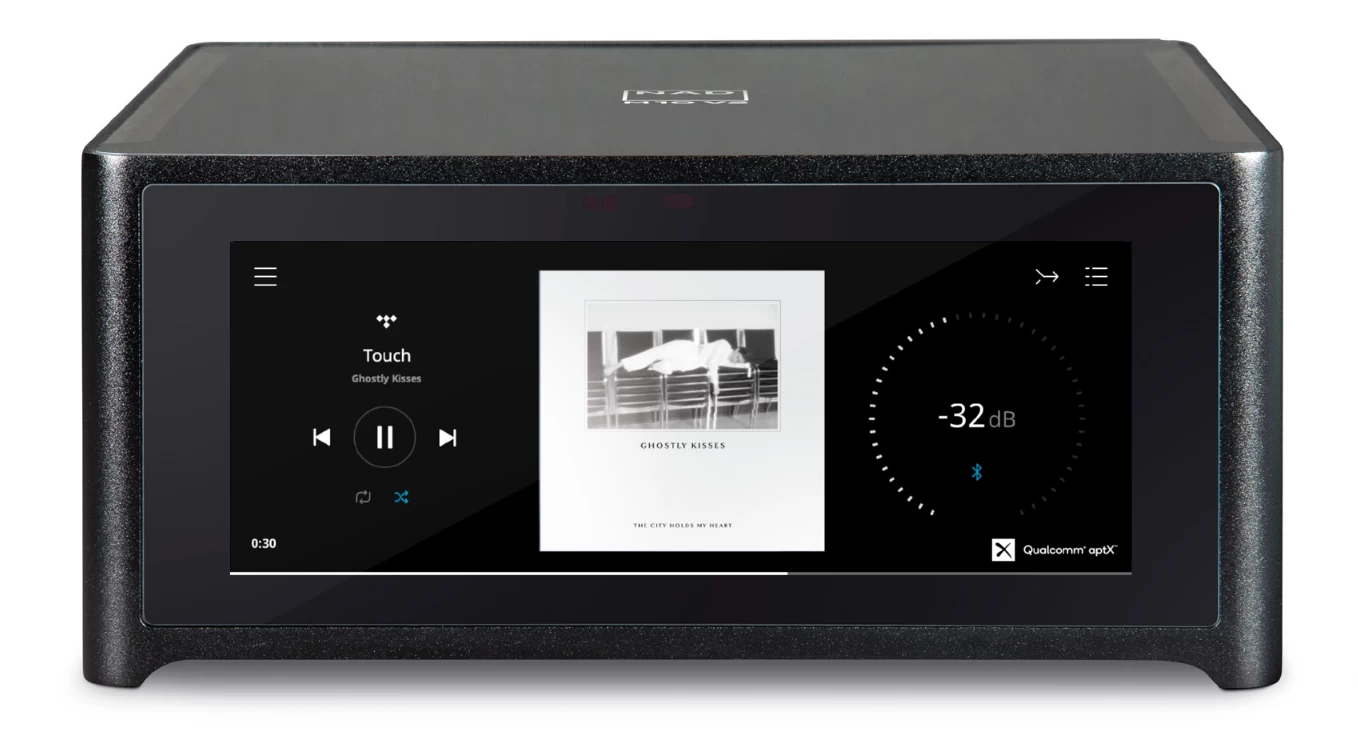

7″ IPS colour LCD touchscreen
BluOS multi-room compatible
AirPlay 2 integration, with support for Siri Voice Assistant
Amazon Alexa & Google Assistant voice control skills
Roon Ready
Spotify Connect and Tidal Connect
Gigabit Ethernet
Two-way Qualcomm aptX HD Bluetooth
NFC Bluetooth pairing for compatible smart devices

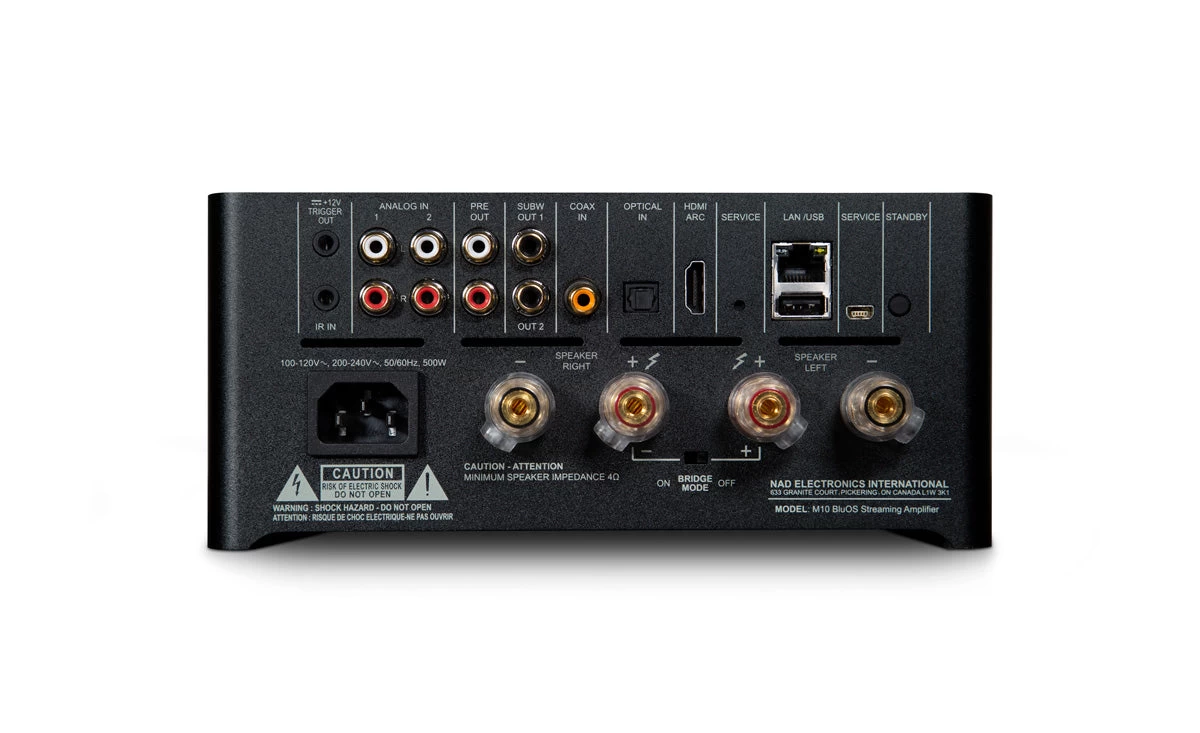

HDMI eARC,USB Type A inputs
Stereo line analogue and coaxial/optical digital inputs
Preamp output, two independent subwoofer outputs with updated gain algorithms
IR Input, 12V Trigger Out
Apps for iOS, Android, macOS, Windows, Crestron, Control4, RTI, URC, Elan, Lutron
Wide variety of premium music services supported in BluOS app, including Amazon, Spotify, Tidal, TuneIn, Napster, Deezer, Qobuz and many others
Support for all major lossless and lossy formats, including WAV, FLAC, AIFF, ALAC, AAC, MP3, Ogg Vorbis, and others
MQA decoding and rendering
Infrared remote control handset included

TECHNICAL SPECS

AMPLIFIER SECTION
LINE INPUT, SPEAKER OUT

Continuous output power into 8 ohms and 4 ohms: >100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
THD (20 Hz – 20 kHz): <0.03 % (250 mW to 100 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio: >85.1 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power:

>130 W (at 1 kHz 8 ohms 0.1 % THD)
>230 W (at 1 kHz 4 ohms 0.1 % THD)

IHF dynamic power:

8 ohms: 160 W
4 ohms: 300 W

Damping factor: >190 (ref. 8 ohms, 20Hz to 6.5kHz)
Frequency response: ±0.6 dB (20 Hz – 20 kHz)
Tone controls
Treble: ±6.0 dB at 20 kHz
Bass: ±6.0dB at 60 Hz
Channel separation:

>83 dB (1 kHz)
>70.5 dB (10 kHz)

Input sensitivity (for 100 W in 8 ohms)

Line In: 456 mV
Digital In: -13.23 %FS

Standby power: <0.5W

DAC SECTION
ESS Sabre 9028 DAC

Supported audio file formats: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
Hi-Resolution audio formats: MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)
Sampling rate: up to 32 bit/192 kHz PCM
Bit depths: 16 – 24

BLUOS SECTION

Supported operating systems: Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and Mac OS X versions
User interface mobile operating system BluOS: BluOS – Free Android and iOS App available online at Google Play and Apple App store
Supported cloud services*: Amazon Alexa, Amazon Music, Spotify, TIDAL, Deezer, Qobuz, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs
Free internet radio*
TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
Bluetooth quality: Bluetooth aptX HD built-in
Bluetooth connectivity: Two-Way (Receive and Headphone modes)
Network connectivity: Gigabit Ethernet RJ45, Wi-Fi 5
