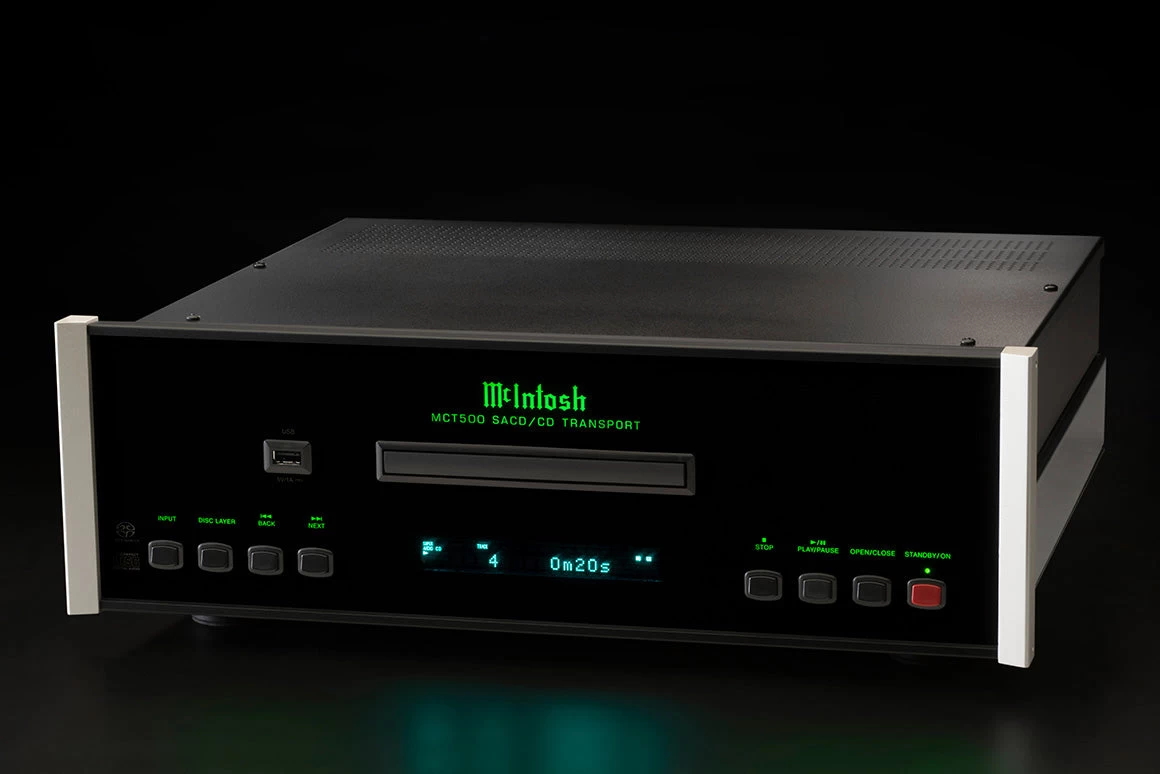

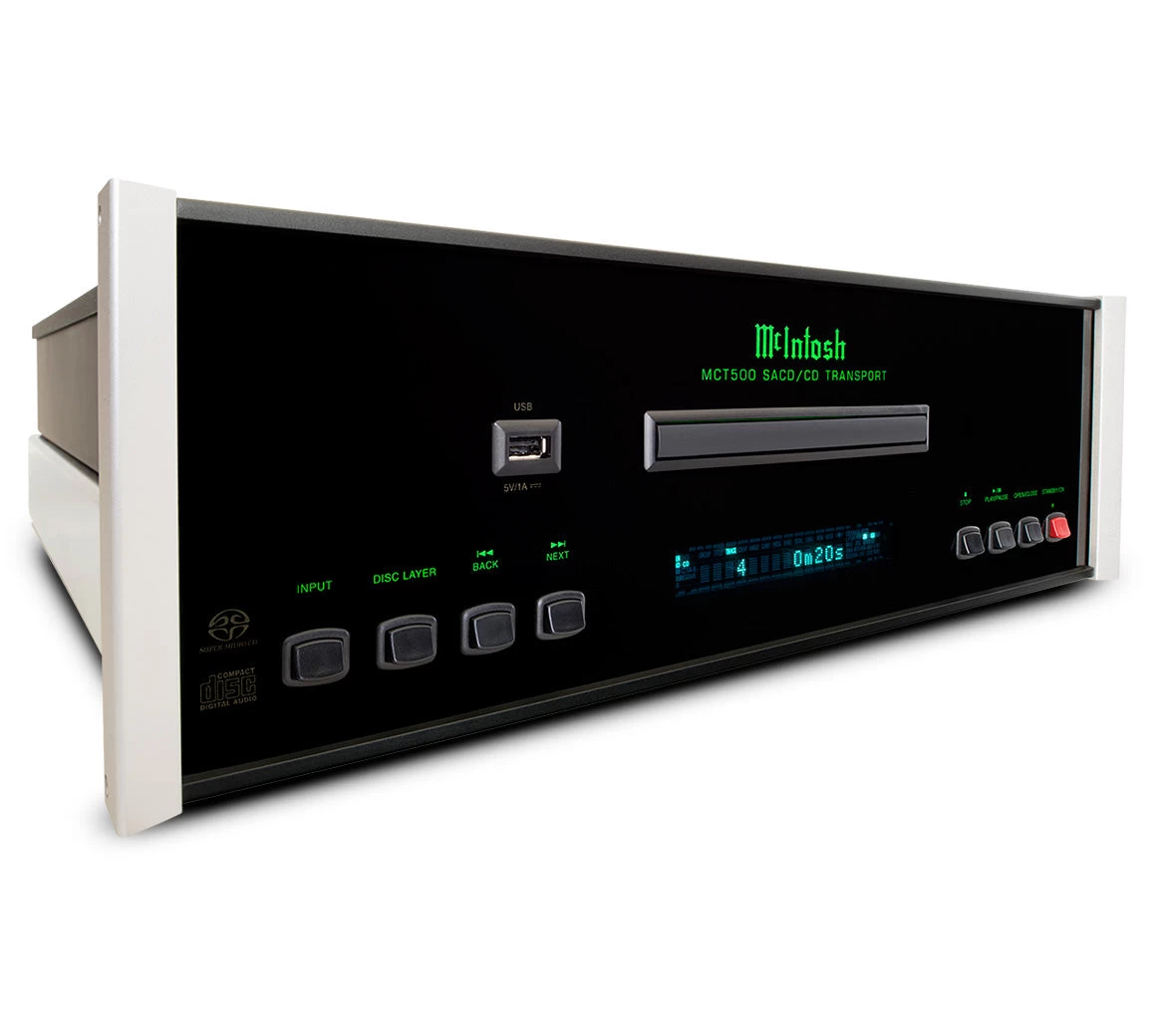

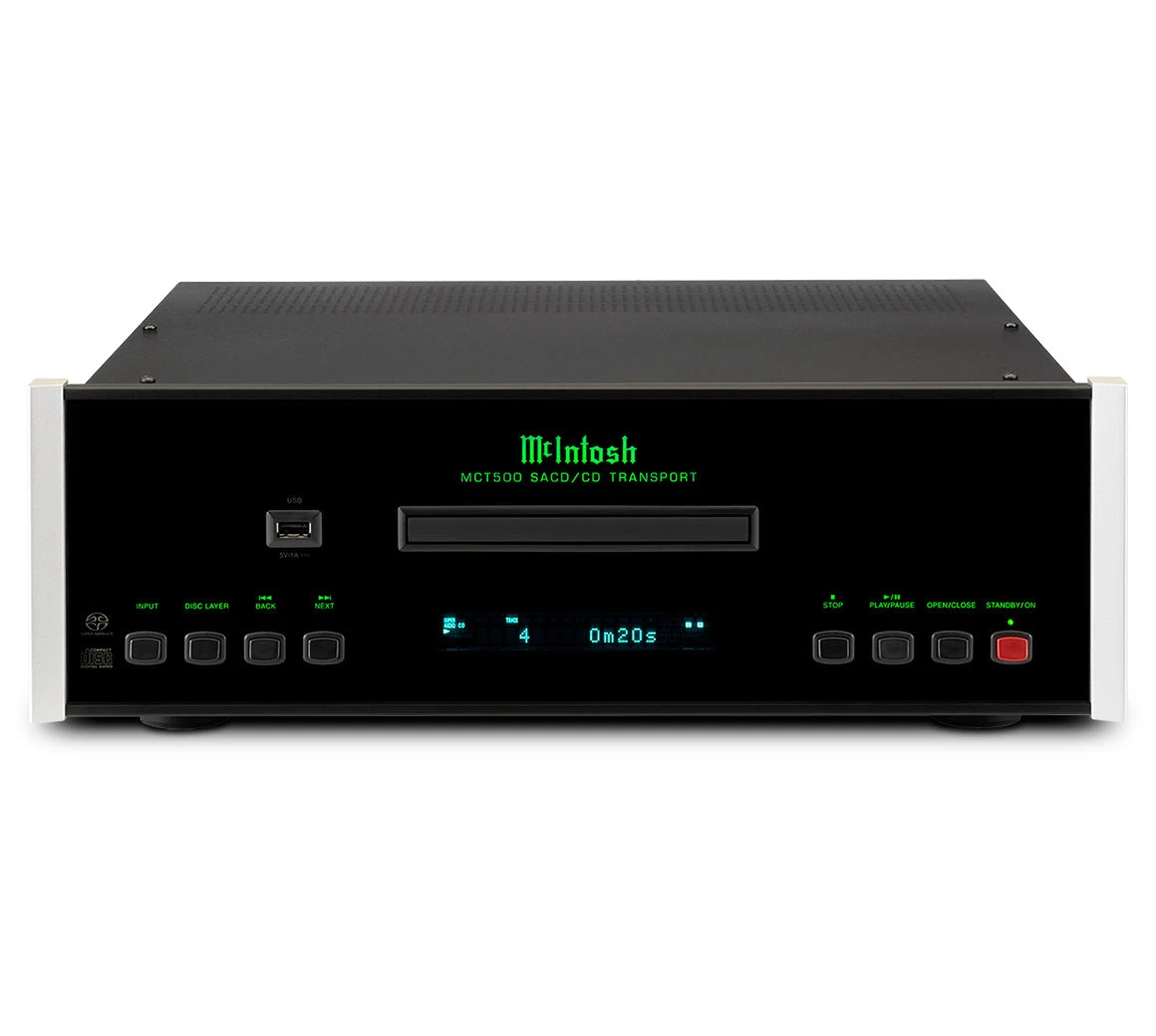

Be transported into your music with the MCT500 SACD/CD Transport.

The MCT500 is a digital-only unit and features 4 digital outputs: industry standard balanced, coax, and optical outputs plus McIntosh’s exclusive MCT connector. To enjoy your CDs, it can be paired with any product that has standard digital inputs and a digital-to-analog convertor (DAC). This includes select McIntosh home theater processors, integrated amplifiers, and preamplifiers.

For SACD playback, the MCT500’s proprietary MCT output needs to be connected (via the included cable) to a McIntosh product with an MCT input. This includes the D1100, C53, C2700, C49 and D150 preamplifiers, MA12000, MA9500, MA8950, MA7200 or MA5300 integrated amplifiers or MAC7200 receiver. When the MCT500 is connected to one of these devices, a secure digital connection is created, allowing for the playback of the high definition audio found on SACDs. Regular CDs can also be played over the MCT connection.

All common disc types can be played on the MCT500, including SACD, CD, CD-R/RW, and DVD-R. A twin laser optical pickup assures optimal disc reading. A USB input is conveniently located on the front panel for easy access. In addition to store-bought CDs and SACDs, popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz), and WMA can be played from user-generated CD or DVD Data Discs and USB flash drives.

Disc handling is smooth and quiet thanks to an advanced disc transport with a precision die-cast aluminum tray. An advanced digital servo provides fast, quiet and accurate operation. A disc’s audio data is read at twice the normal rate insuring better disc tracking and error correction processing.

Integration with other McIntosh system components is achieved via the Power Control and data ports. The MCT500 is wrapped in classic McIntosh styling with a polished stainless steel chassis, black glass front panel, illuminated logo, and aluminum end caps.

TECHNICAL SPECS

Number of Channels: 2
Digital Output Sample Rate

Coaxial: Up to 24-Bit/192kHz
Optical: Up to 24-Bit/192kHz
XLR: Up to 24-Bit/192kHz
MCT: Up to 24-bit/96kHz (CD); DSD128 (SACD and Data DVD)

Digital Optical Output: -15dbm to -21dbm
Digital Coaxial Output: 0.5V p-p/75 ohms
Digital Output Jitter: ≤ 32ns with 1kHz test tone
Digital XLR Output: 5V p-p/150 ohms
Digital MCT (DIN) Output: 3V @110 ohms
Digital USB Input: 1 (front)
Digital USB Input Type: Type A
Digital Coaxial Output: 1
Digital Optical Output: 1
Digital XLR Output: 1
Digital MCT (DIN) Output: 1
Rear Panel IR Sensor Input: 1
Rear Panel Data Input: 1
Power Control Input: 1
Power Control Output: 1
Disc Formats: SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA
Disc Capacity: 1
Laser Type: Twin Beam
Laser Beam Wavelength

650nm (SACD)
790nm (CD)

Laser Power: CLASS IIa/CLASS I
Standby Power Requirement: <0.5 watt
Dimensions (W x H x D): 17-1/2″ (44.45cm) x 6″ (15.24cm) x 19″ (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
Weight: 26 lbs (11.8 kg)
Shipping Weight: 40.5 lbs (18.4 kg)
