McIntosh MCD350 2-Channel SACD / CD Player

MCD350 features a balanced 2-channel, 32-bit/192kHz Digital-to-Analog Converter (DAC). Fixed analog stereo outputs are available in both balanced and unbalanced offerings; a coax and optical output are also available if you prefer to send the digital audio signal to an external DAC, preamp, or home theater processor. All analog plus the digital coax outputs are gold plated or superior corrosion resistance.

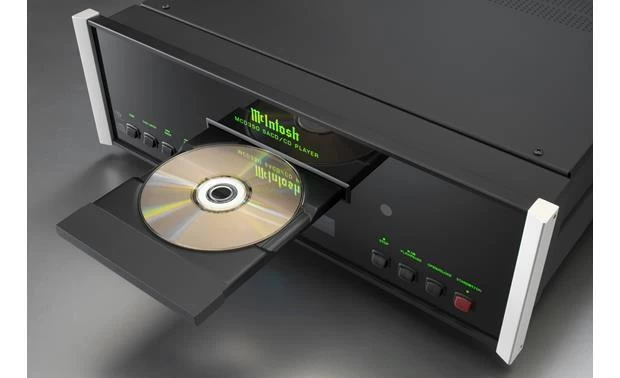

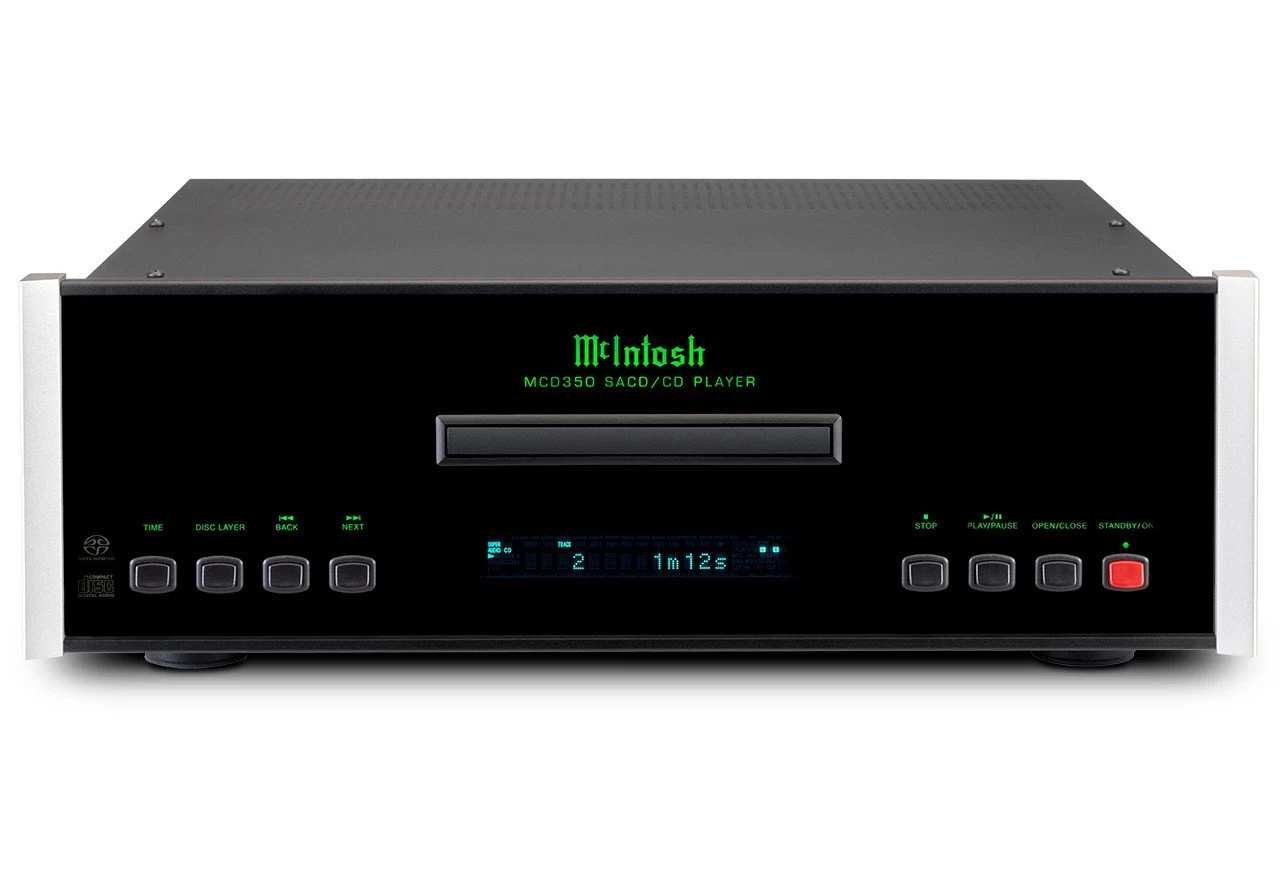

It features 2x read speed so that all discs placed in its rigid aluminum die-cast tray are read at higher speeds allowing their data to be stored in a buffer memory for a better error correction and tracking. A twin laser optical pickup uses a single objective lens with two laser units each employing different wavelengths that are optimized for SACD and CD playback. The classic McIntosh black glass front panel with an illuminated logo and aluminum end caps complete the unit. ​

FEATURES

• 2-channel SACD/CD player
• 2-channel, 32-bit/192kHz balanced PCM/DSD DAC (decodes PCM signals from CDs; DSD signals from SACDs)

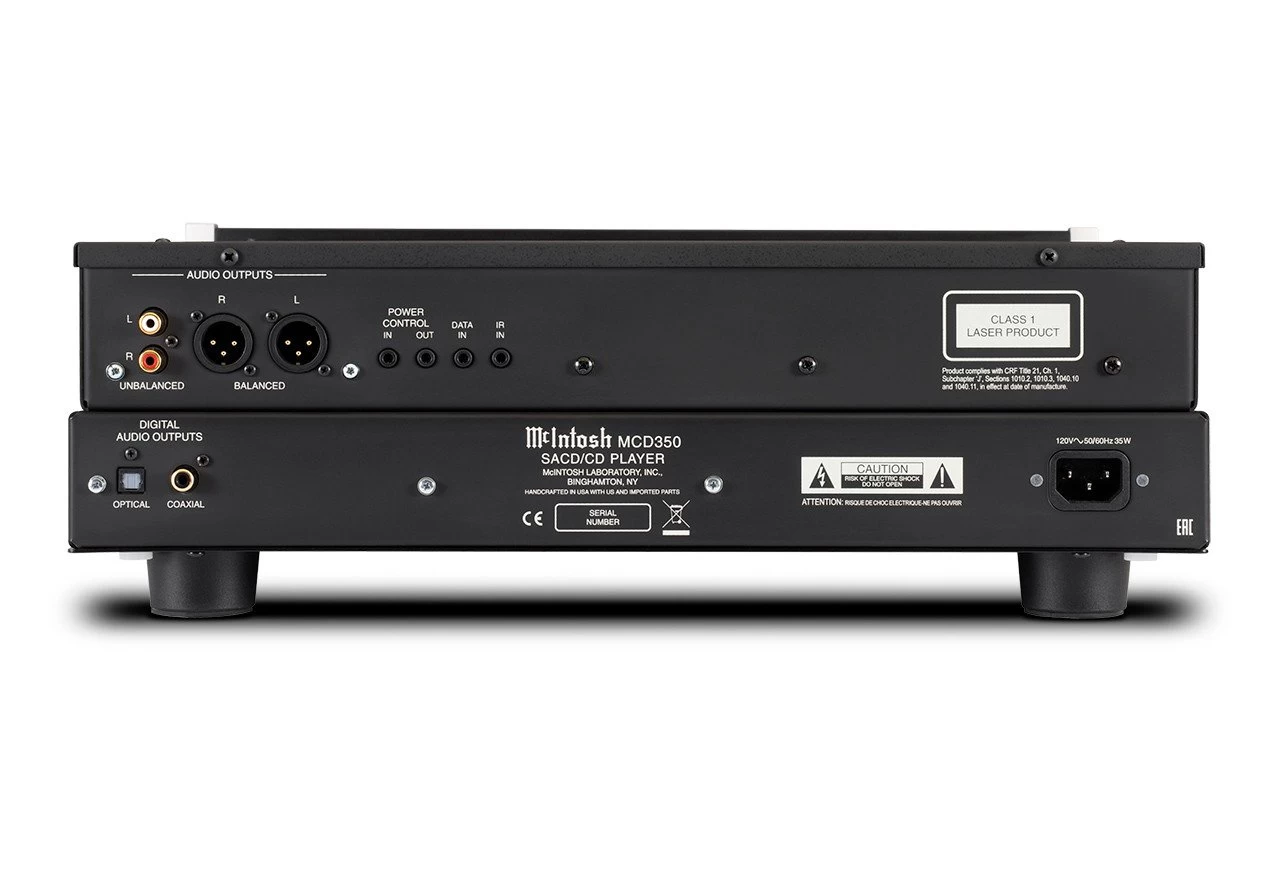

• Fixed analog stereo balanced and unbalanced outputs
• Digital coax and optical outputs
• 2x read speed for better reading of damaged CDs and CD-R/RWs
• Handcrafted at McIntosh’s Binghamton, New York factory

TECHNICAL SPECS

• Number Of Channels: 2
  Fixed Output Level:
• Unbalanced: 2 Vrms
• Balanced: 4 Vrms
• Output Impedance: 600 ohms
  Frequency Response: 4 Hz to 40 kHz, +0.5, -2 dB (SACD)
  4 Hz to 20 kHz, ±0.5 dB (CD)
  Signal To Noise Ratio: better than 108 dB (A-weighted)
  Dynamic Range: better than 100 dB
  Total Harmonic Distortion: 0.003% @ 1000 Hz (SACD)
  0.002% @ 1000 Hz (CD)
  Channel Separation: better than 98 dB (1,000 Hz)
  Digital-To-Analog Converger (DAC) Type: 2-channel, 32-bit/192 kHz PCM/DSD
  Digital Output Sample Rate: up to 24-bit/192 kHz
  Digital Optical Output: -15 dbm to -21 dbm
  Digital Coaxial Output: 0.5 V p-p/75 ohms
  Balanced /Fixed Output: 1
  Unbalanced Fixed Output: 1
  Digital Coaxial Output: 1
  Digital Optical Output: 1
  Rear Panel IR Sensor Input: 1
  Rear Panel Data Input: 1
  Power Control Input: 1
  Power Control Output: 1
  Disk Formats: CD, SACD, MP3 and WMA
  Disk Capacity: 1
  Laser Type: twin beam
  Laser Beam Wavelength: 650 nm (SACD)
  790 nm (CD)
  Laser Power: CLASS IIa/CLASS I
  Standby Power Requirement: <0.5 watt
  Dimensions: 17-1/2″w x 6″h x 19″d
• NOTE: When the disc tray is opened, the panel clearance required in front of mounting panel is 6-3/4″
  Weight: 28 lbs

MANUALS

• Owner’s Manual
