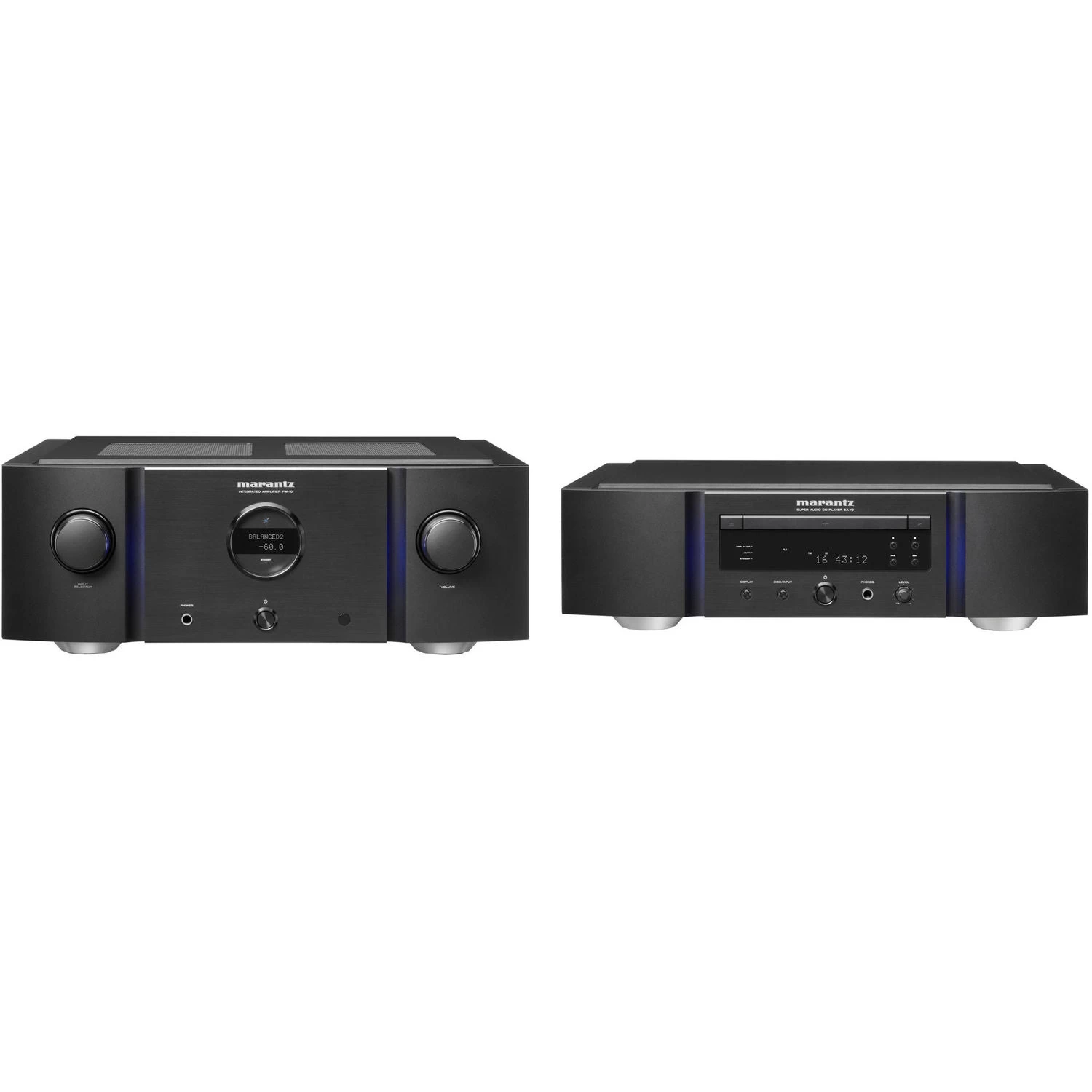

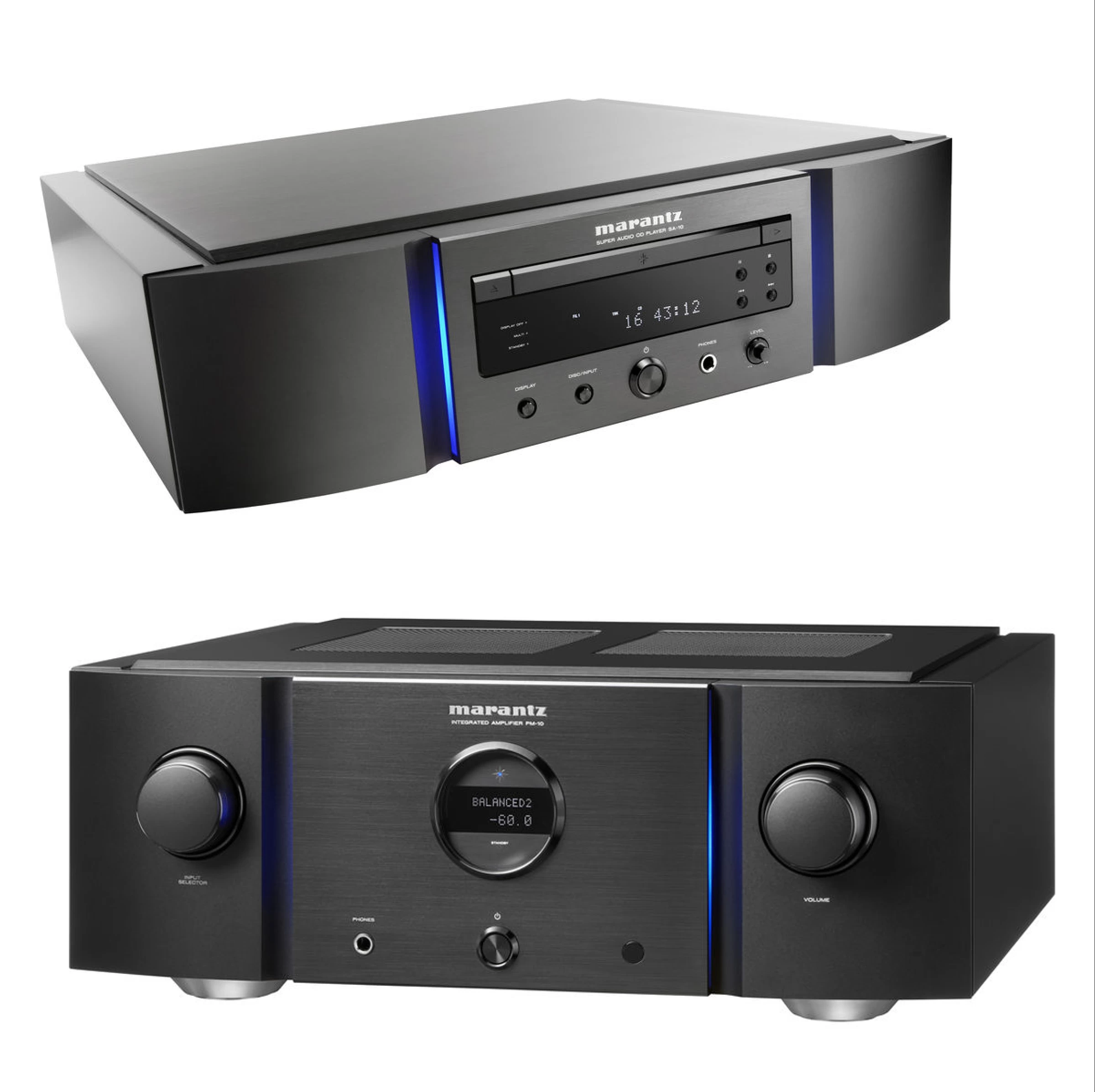

Marantz PM-10 Integrated Amplifier And SA10 SACD Player Kit

Start building your audiophile-grade system with this Kit that includes the black Marantz PM-10 Stereo 200W Power Amplifier and the Marantz SA10 SACD Player. They can be connected together using two balanced XLR cables to achieve minimal interference, or stereo RCA cables will suffice, as well (cables available separately). Plug your computer and USB drives into the USB inputs on the CD player to take advantage of the onboard digital-to-analog converter (DAC); plug other digital devices, such as Blu-ray or DVD players, into the optical and digital coaxial inputs to enjoy your high-resolution concert discs and other media.

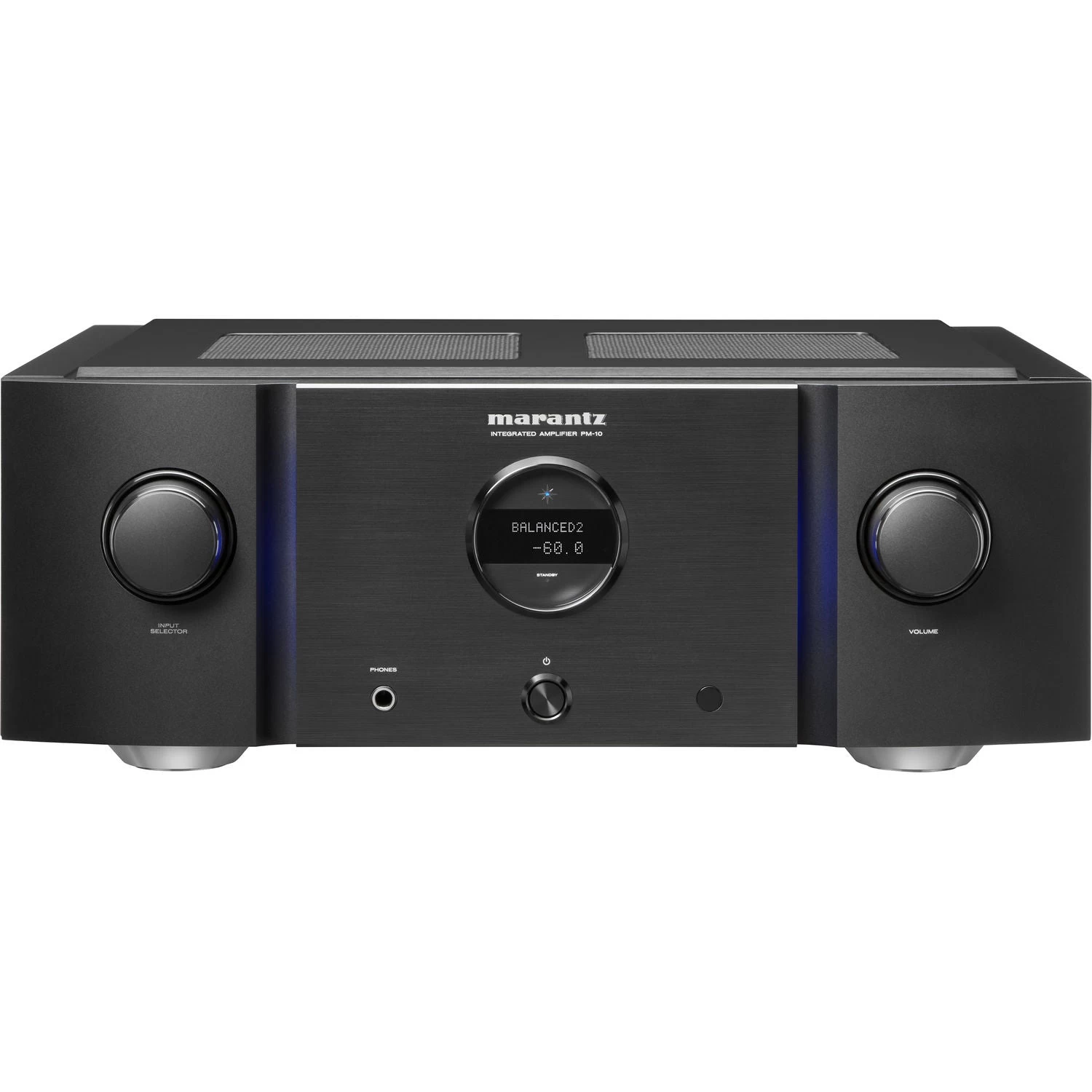

PM-10

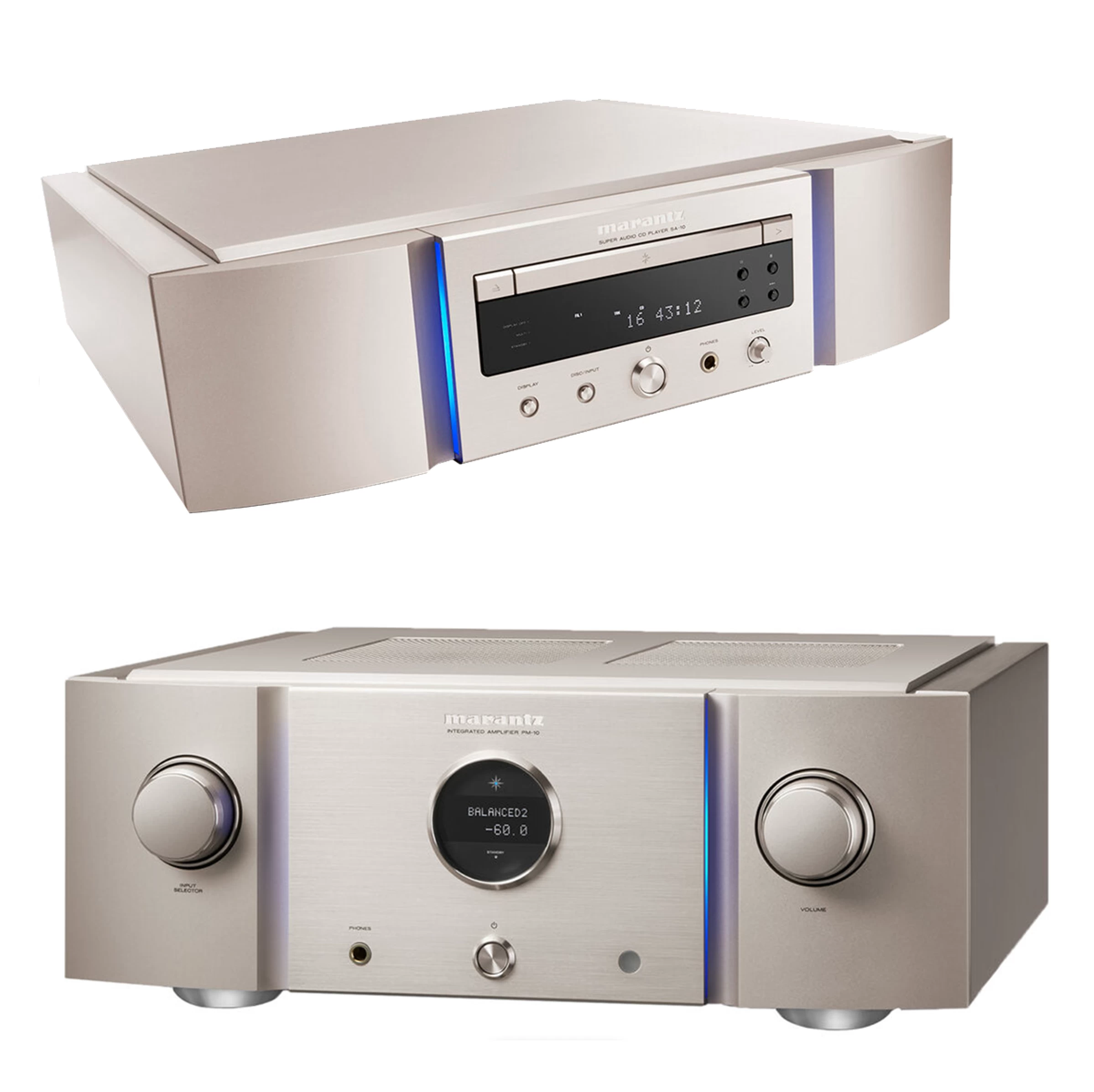

An optimized dual-mono design, Separate power supplies in the preamplifier and each of the power amplifier channels, dedicated preamp transformer, and supply for microprocessor controlling volume, inputs, etc. Pure Analog Design, Purest Mode: Deactivates circuits and ensures signal flow straight from the input section to the power stage as a pure power amplifier. Fully Balanced, Bridged Power Amplification from input to output stage. Available in Black or Gold (Champagne)

FEATURES

• 2-Channel Amplifier Configuration
• 200W per Channel Power Output at 8 Ohms
• 2 x Stereo XLR, 4 x Stereo RCA Inputs
• MM/MC Phono Input
• Push-Pull Amplification Design
• A/B Speaker Switching
• Symmetrical Topology
• Bi-Amping Capability

TECHNICAL SPECS

• Amplifier
• Amplifier Type Integrated Amplifier (Preamp/Power Amp Combo)
• Channels 2.0
• Power Output per Channel
• 200 W at 8 Ohms (RMS)
• 400 W at 4 Ohms (RMS)
• Frequency Response 5 Hz to 50 kHz
• THD 0%
• Damping Factor 500
• Connectivity
• Rear A/V Inputs
• 2 x Stereo XLR
• 1 x Stereo RCA (Phono) with Ground Screw
• 5 x Stereo RCA
• Rear A/V Outputs 1 x Stereo RCA
• Front I/O 1 x 1/4″ / 6.35 mm Headphone Output
• Other Rear I/O
• 1 x RCA (Remote) Input
• 1 x RCA (Remote) Output
• 1 x 1/8″ / 3.5 mm (Floating Control Bus) Input
• 1 x 1/8″ / 3.5 mm (Floating Control Bus) Output
• Speaker Connectors 4 x Binding Post Pair
• Input Impedance
• RCA: 20 Kilohms
• XLR: 40 Kilohms
• Phono (MM): 47 Kilohms
• Phono (MC):
• 33 Ohms (Low)
• 133 Ohms (High)
• Power Amp: 20 Kilohms
• Input Sensitivity
• RCA: 440 mV
• XLR: 880 mV
• Phono (MM): 2.6 mV
• Phono (MC): 280 µV (Low) / 280 µV (High)
• Power Amp Direct: 1.5 V
• Signal to Noise Ratio
• Phono (MM): 88 dB
• Phono (MC): 76 dB
• Power Amp Direct: 113 dB
• Line: 111 dB (2 V Input / Rated Output)
• Wireless Connectivity
• Wi-Fi None
• Bluetooth None
• Power
• AC Input Power 120 VAC, 60 Hz
• Power Consumption
• Active: 270 W
• Standby: 0.3 W
• Physical
• Dimensions (W x H x D) 17.3 x 6.6 x 17.8″ / 43.9 x 16.8 x 45.2 cm
• Weight 47.4 lb / 21.5 kg
• Packaging Info
• Package Weight 54.01 lb
• Box Dimensions (LxWxH) 22 x 21.25 x 9.8″

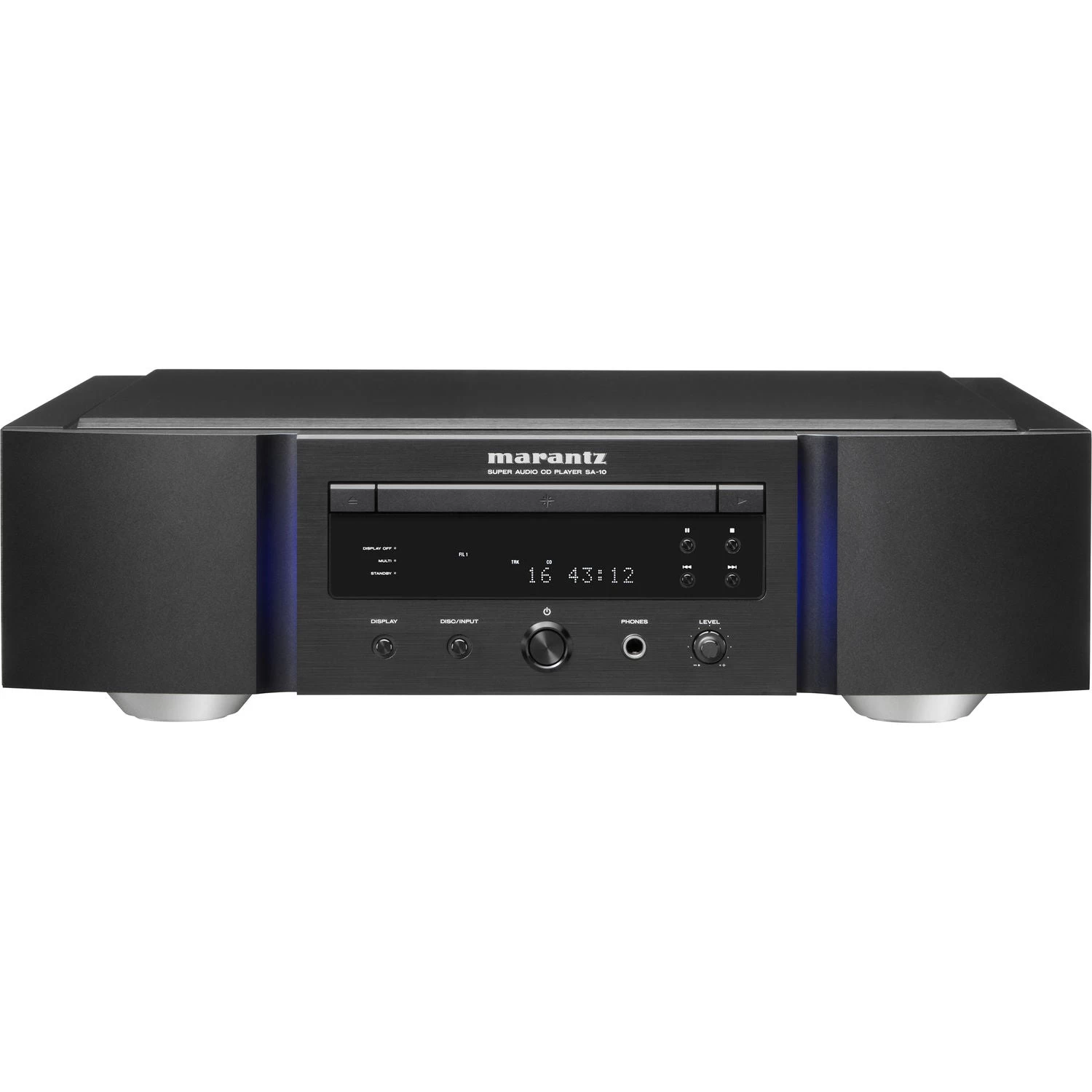

SA10 SACD

Enjoy all your favorite audio CDs, SACDs, and files with the black Marantz SA10 SACD Player. It has a front-loading tray that will accept your SACDs, CDs, CD-Rs, CD-RWs, and DVD-ROM discs encoded with various audio file types, including MP3, WMA, WAV, and AAC. The CD player has a USB Type-A port for playing files from portable drives, as well as a USB Type-B input for connecting your computer. For private listening, it has a 1/4″ headphone output on the front panel. It includes a stereo RCA cable, a remote cable, and a remote control.

FEATURES

• Single-Disc Tray
• Integrated Digital-to-Analog Converter
• Supports SACD, CD, CD-R/RW
• Stereo XLR, Stereo RCA Out
• Optical & Digital Coaxial Input & Output
• USB Type-A & Type-B Inputs
• 1/4″ Headphone Out
• Dual-Layered, Copper-Plated Chassis
• Non-Magnetic Aluminum Panels
• IR Remote Included

TECHNICAL SPECS

• Compatibility
• Supported Disc Types CD, CD-R, CD-RW, SACD, DVD+R, DVD+RW, DVD-R, DVD-ROM, DVD-RW
• Supported Formats AAC, AIFF, FLAC, MP3, WAV, WMA
• General
• Frequency Response
• 2 Hz to 60 kHz -3 dB (SACD)
• 2 Hz to 20 kHz ±1 dB (CD)
• Frequency Range
• 2 Hz to 100 kHz (SACD)
• 2 Hz to 20 kHz (CD)
• Dynamic Range
• 109 dB (SACD)
• 98 dB (CD)
• Signal to Noise Ratio
• 112 dB (SACD)
• 104 dB (CD)
• Total Harmonic Distortion (THD)
• 0.0008% @ 1 kHz (SACD)
• 0.0015% @ 1 kHz (CD)
• Number of Channels 2
• Maximum Output Voltage 0.5 Vp-p (Digital Coaxial)
• Output Impedance 75 Ohms (Digital Coaxial)
• Connections
• Audio Outputs
• 1 x Stereo 3-Pin XLR (L/R)
• 1 x RCA Stereo (L/R)
• 1 x TOSLINK Optical
• 1 x Digital Coaxial
• 1 x 1/4″ / 6.35 mm Headphone
• Audio Inputs
• 1 x TOSLINK Optical
• 1 x Digital Coaxial
• Other I/O
• 1 x USB Type-A Input
• 1 x USB Type-B Input
• 1 x RCA (Remote) Input
• 1 x RCA (Remote) Output
• Environmental
• Operating Temperature 41 to 95°F / 5 to 35°C
• Humidity 5 to 90% Non-Condensing Operating
• Physical
• Disc Capacity 1
• AC Input Power 120 VAC, 60 Hz
• Power Consumption
• 50 W (Typical)
• 0.3 W (Standby)
• Dimensions (W x H x D) 17.3 x 5 x 16.5″ / 43.9 x 12.7 x 41.9 cm
• Weight 40.9 lb / 18.55 kg
