Marantz PM-10 INTEGRATED AMPLIFIER

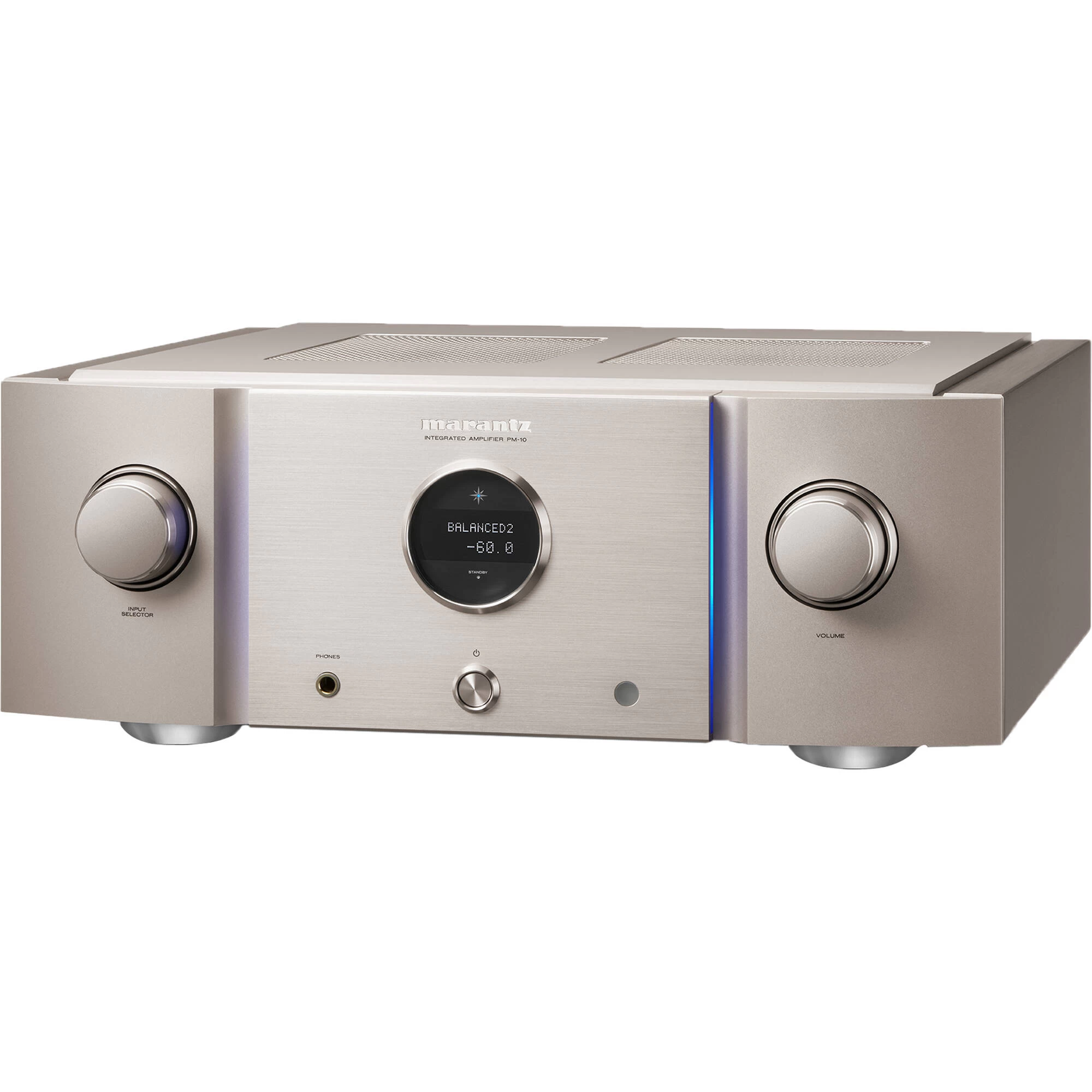

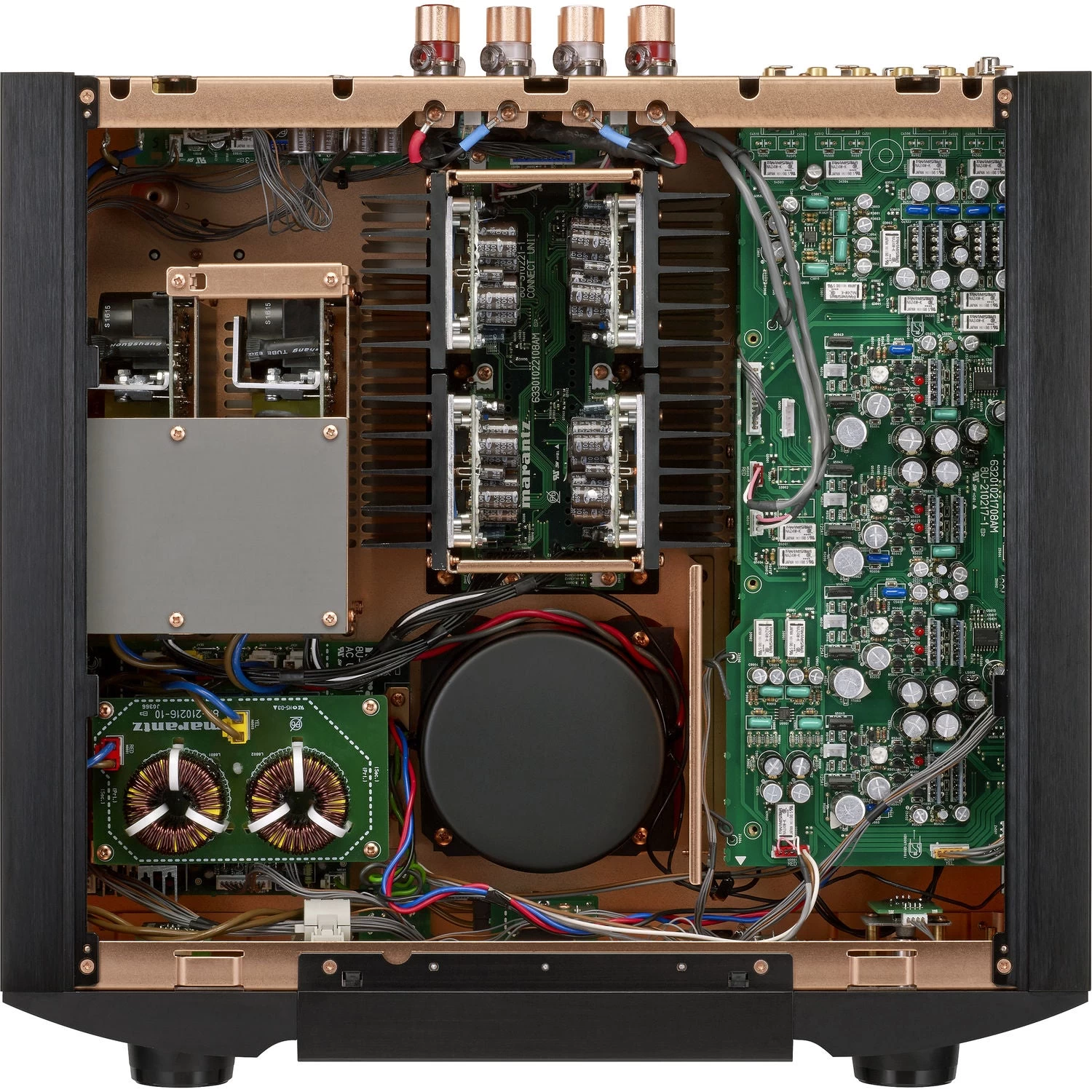

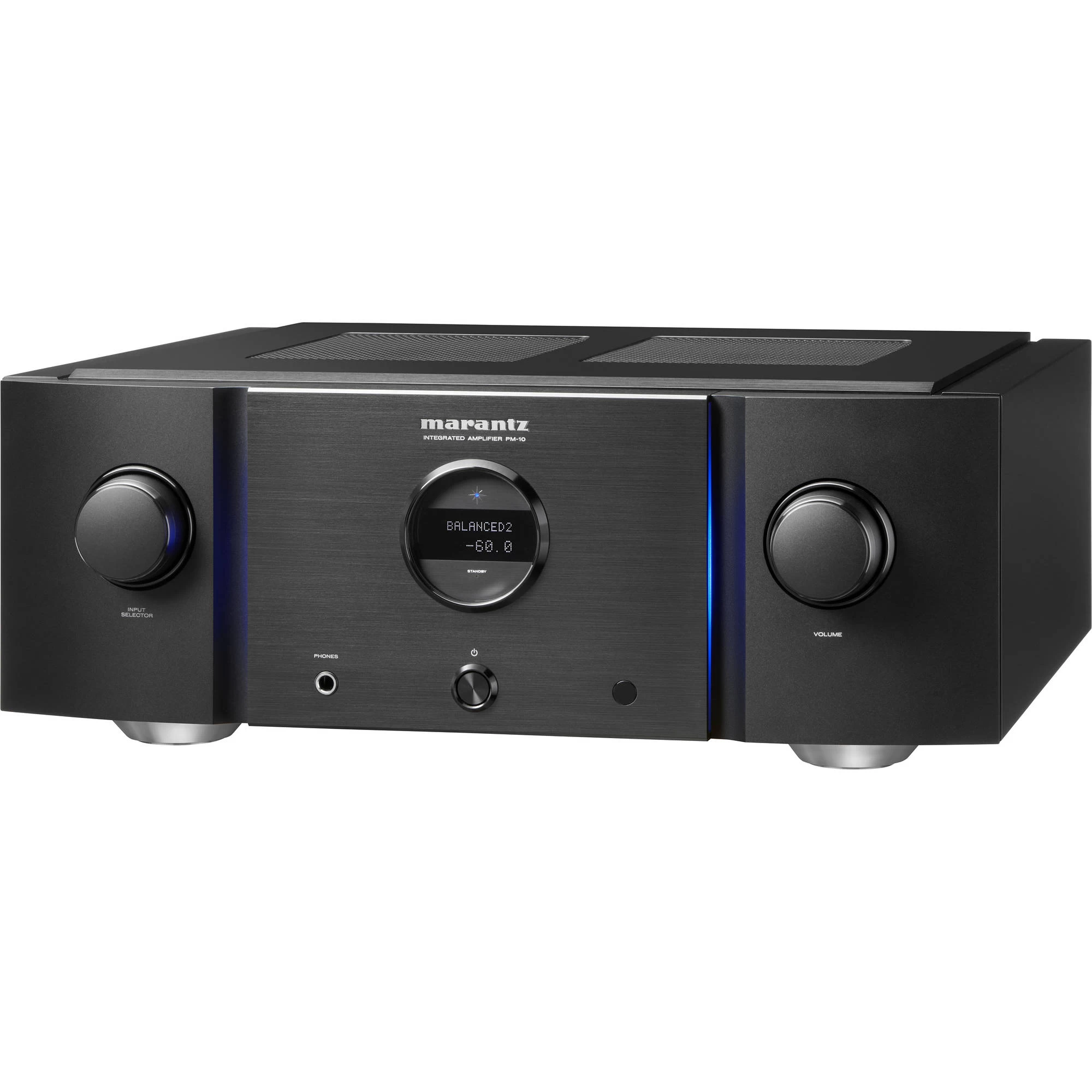

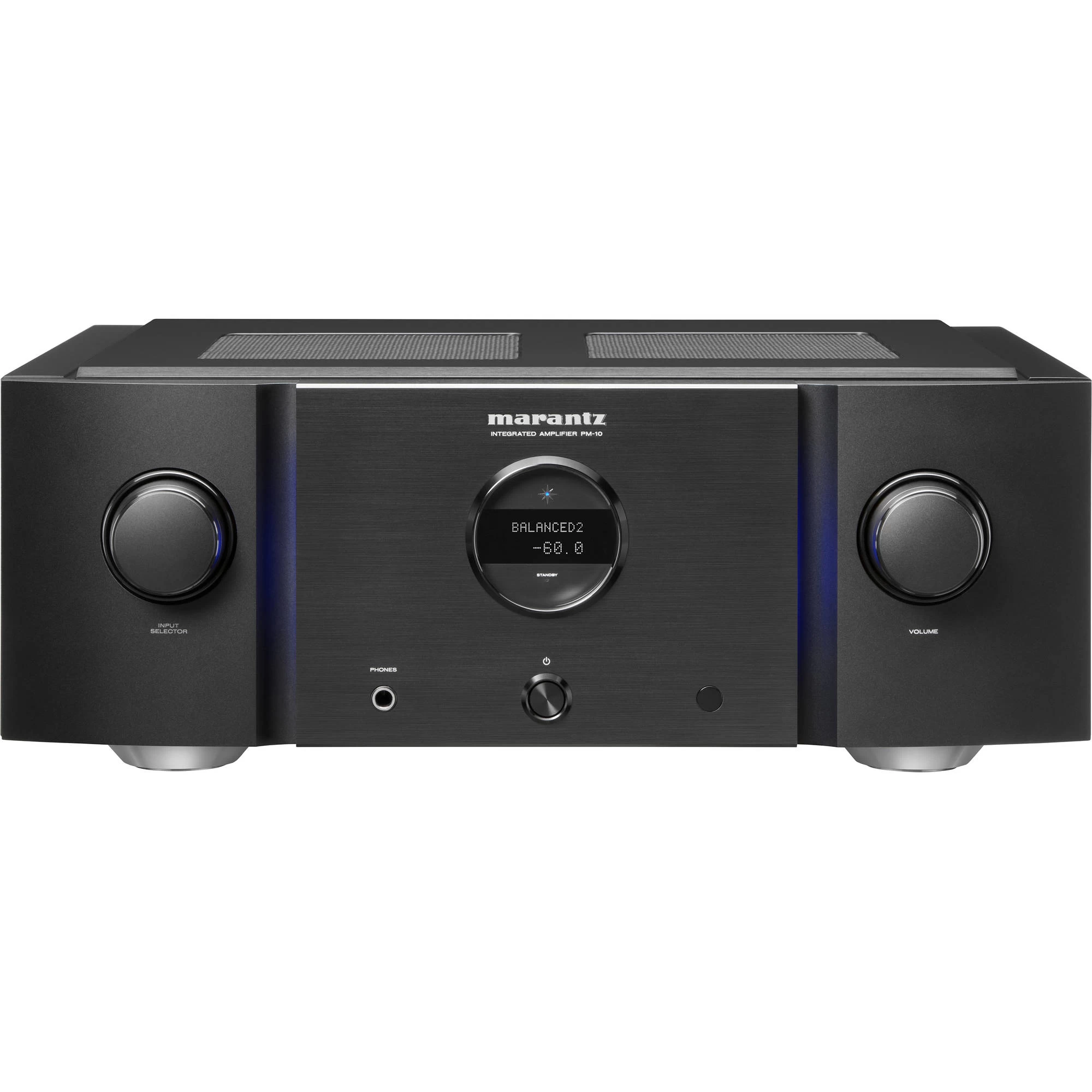

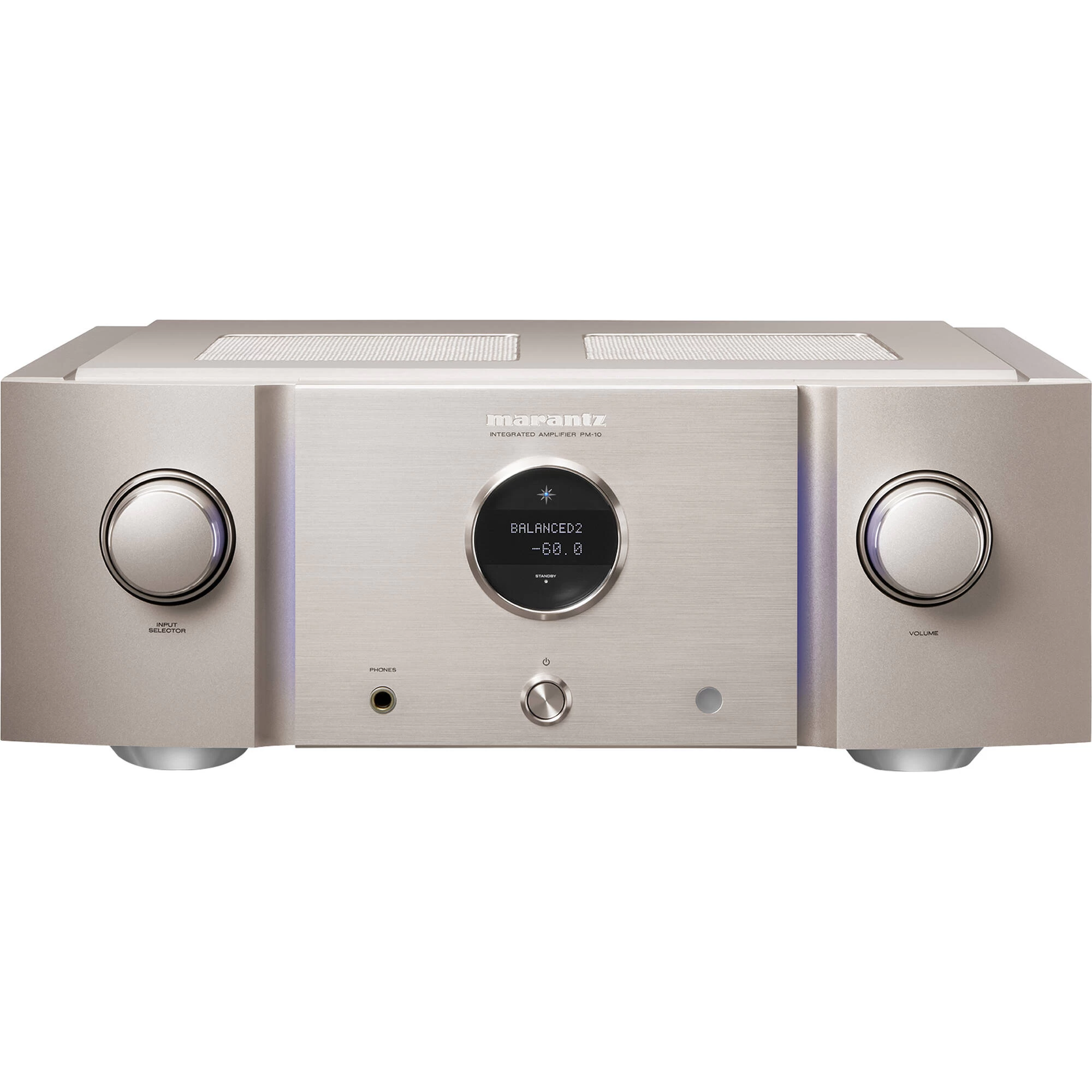

An optimized dual-mono design, Separate power supplies in the preamplifier and each of the power amplifier channels, dedicated preamp transformer, and supply for microprocessor controlling volume, inputs, etc. Pure Analog Design, Purest Mode: Deactivates circuits and ensures signal flow straight from the input section to the power stage as a pure power amplifier. Fully Balanced, Bridged Power Amplification from input to output stage. Available in Black or Gold (Champagne)

FEATURES

• 2-Channel Amplifier Configuration
• 200W per Channel Power Output at 8 Ohms
• 2 x Stereo XLR, 4 x Stereo RCA Inputs
• MM/MC Phono Input
• Push-Pull Amplification Design
• A/B Speaker Switching
• Symmetrical Topology
• Bi-Amping Capability

TECHNICAL SPECS

• Amplifier
• Amplifier Type Integrated Amplifier (Preamp/Power Amp Combo)
• Channels 2.0
• Power Output per Channel
• 200 W at 8 Ohms (RMS)
• 400 W at 4 Ohms (RMS)
• Frequency Response 5 Hz to 50 kHz
• THD 0%
• Damping Factor 500
• Connectivity

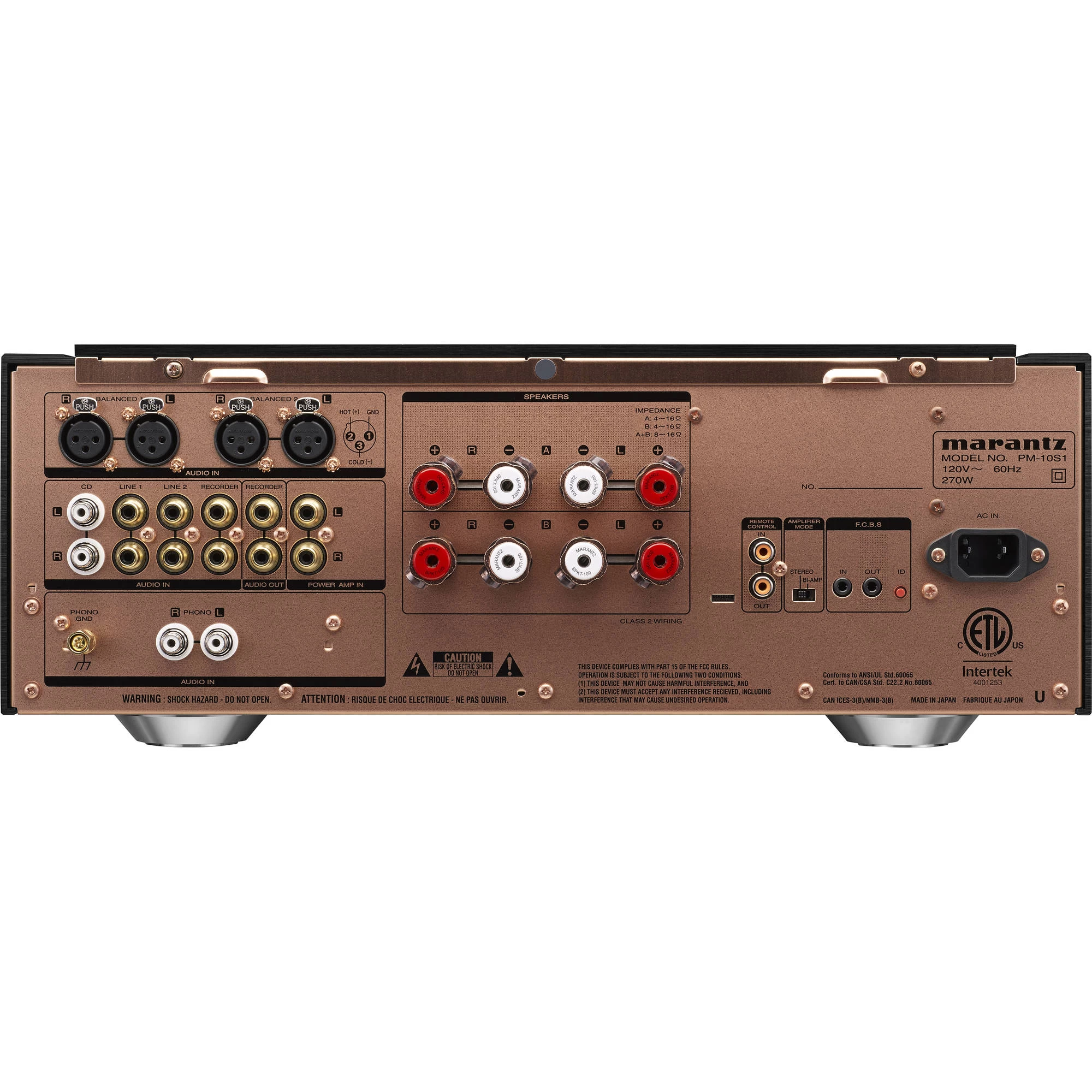

• Rear A/V Inputs
• 2 x Stereo XLR
• 1 x Stereo RCA (Phono) with Ground Screw
• 5 x Stereo RCA
• Rear A/V Outputs 1 x Stereo RCA
• Front I/O 1 x 1/4″ / 6.35 mm Headphone Output
• Other Rear I/O
• 1 x RCA (Remote) Input
• 1 x RCA (Remote) Output
• 1 x 1/8″ / 3.5 mm (Floating Control Bus) Input
• 1 x 1/8″ / 3.5 mm (Floating Control Bus) Output
• Speaker Connectors 4 x Binding Post Pair
• Input Impedance
• RCA: 20 Kilohms
• XLR: 40 Kilohms
• Phono (MM): 47 Kilohms
• Phono (MC):
• 33 Ohms (Low)
• 133 Ohms (High)
• Power Amp: 20 Kilohms
• Input Sensitivity
• RCA: 440 mV
• XLR: 880 mV
• Phono (MM): 2.6 mV
• Phono (MC): 280 µV (Low) / 280 µV (High)
• Power Amp Direct: 1.5 V
• Signal to Noise Ratio
• Phono (MM): 88 dB
• Phono (MC): 76 dB
• Power Amp Direct: 113 dB
• Line: 111 dB (2 V Input / Rated Output)
• Wireless Connectivity
• Wi-Fi None
• Bluetooth None
• Power
• AC Input Power 120 VAC, 60 Hz
• Power Consumption
• Active: 270 W
• Standby: 0.3 W
• Physical
• Dimensions (W x H x D) 17.3 x 6.6 x 17.8″ / 43.9 x 16.8 x 45.2 cm
• Weight 47.4 lb / 21.5 kg
• Packaging Info
• Package Weight 54.01 lb
• Box Dimensions (LxWxH) 22 x 21.25 x 9.8″
