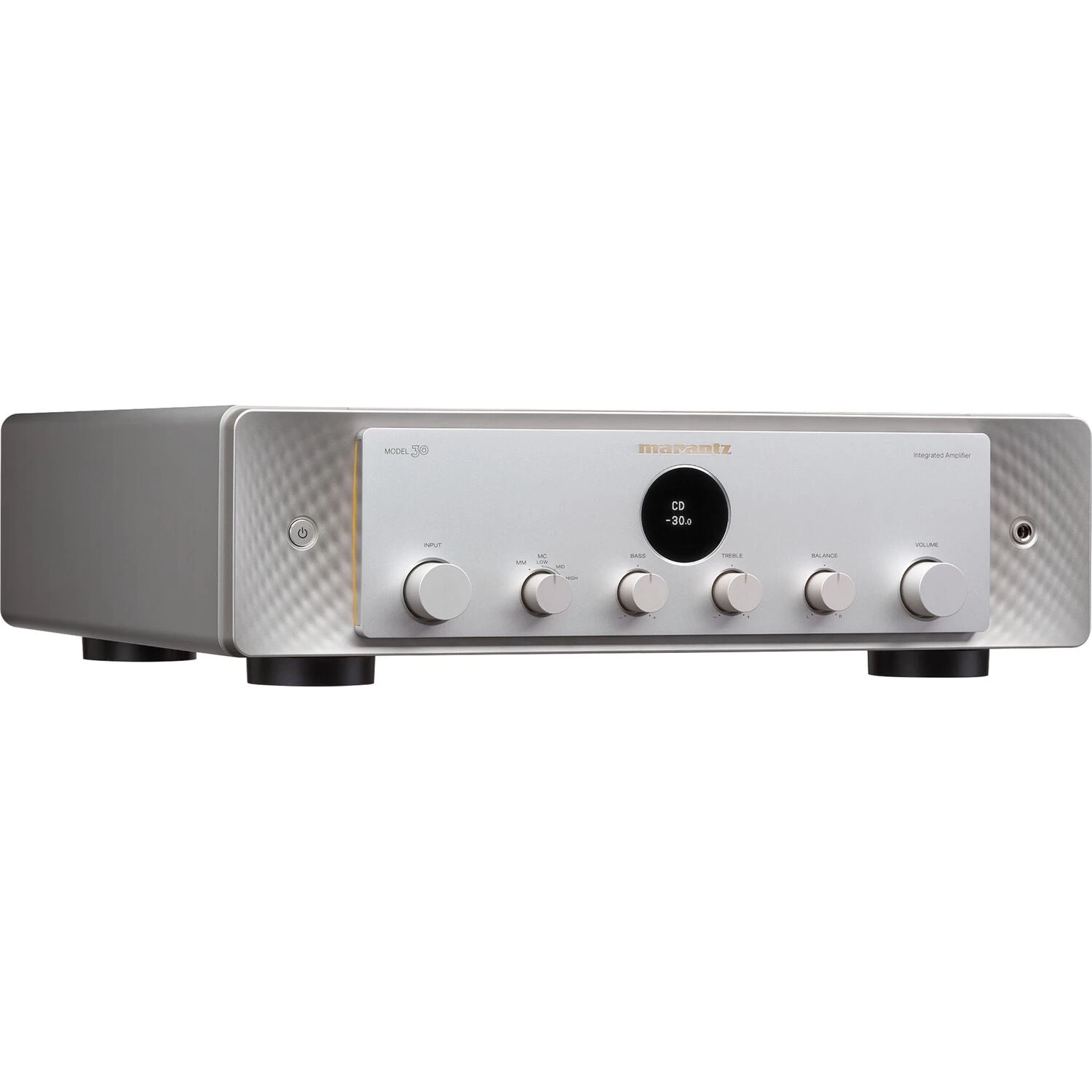

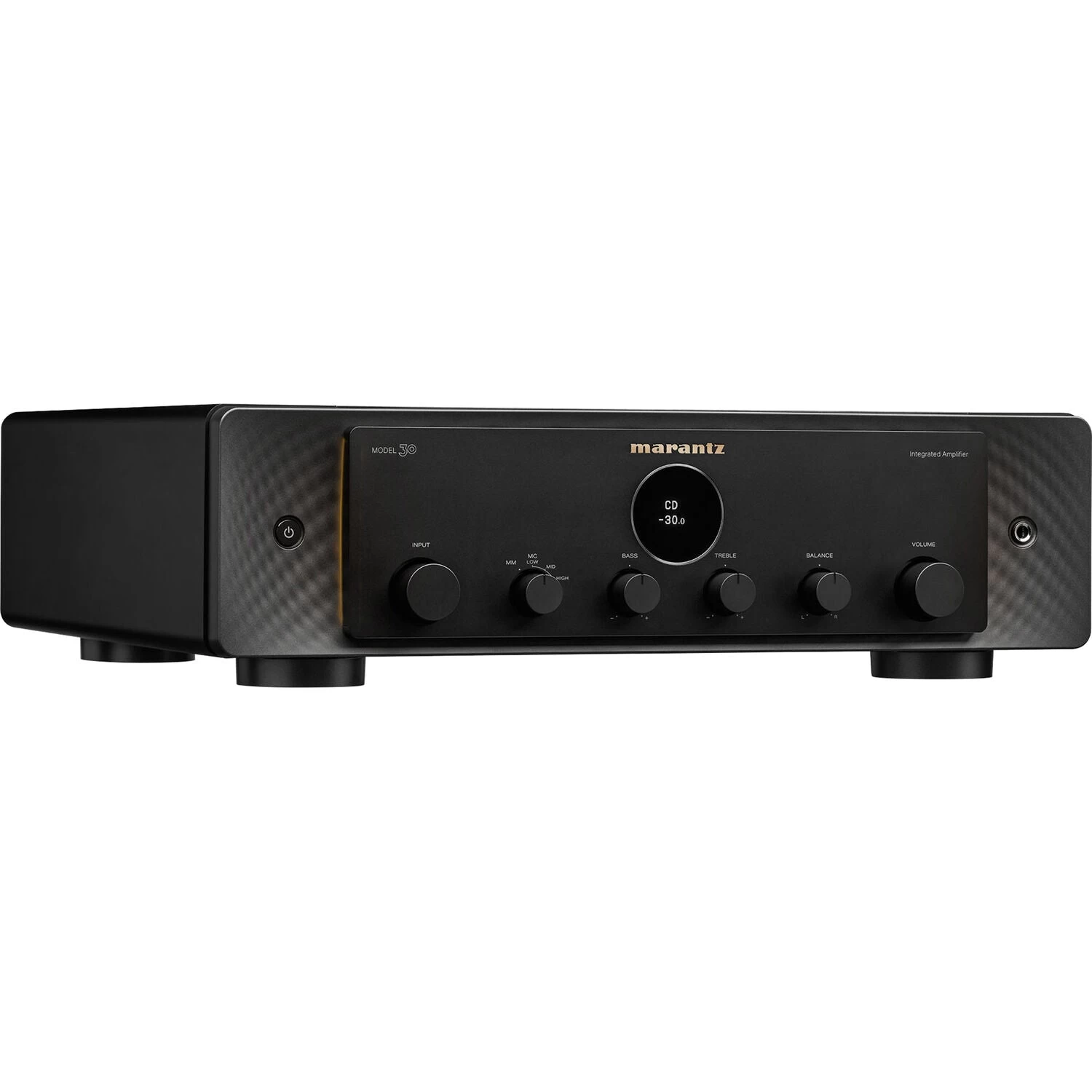

Model 30

Get the most musical sound possible from this Master-tuned integrated amplifier. Its custom-designed HDAM delivers exquisite detail and unforgettable musicality from any style of music.
Featuring a fully discrete, two-stage design for minimal interference, and unique Marantz HDAM technology for signal purity, MODEL 30 offers exceptional sound quality.

FEATURES

Tuned with passion: Hundreds of hours of thoughtful Sound Master tuning ensure the exquisite detail and musicality Marantz always delivers.
Designed to last: You see and feel it in the build quality and you hear it every time. No matter your musical passions, your music always sounds better with MODEL 30.
Fully discrete and accurate detailing: Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.
Extraordinary sensitivity: Designed to replicate the sensitivity and feel of a vintage analog amplifier even when simply adjusting the volume.

TECHNICAL SPECS

Rated Output Power:
- 100W + 100W (8ohm)
- 200W + 200W (4ohm)
Amplifier Circuit Switching Amp (Hypex NC500/SMPS600 by single)
Power Trans: Toroidal w/case
Volume: Electric
Bass / Treble / Balance Control
Source Direct
Wide Range 5Hz – 50kHz
Total Harmonic Distortion 0.005%
(1kHz, 8Ω)
Damping Factor 500
Input Sensitivity: Phono input MM: 2.3 mV / 39 kohm
MC: 250
Input Sensitivity: CD/LINE/RECORDER 220 mV / 13 kohm
Input Sensitivity: Power Amp input 1.1 V / 13 kohm
SN Ratio PHONO (MM): 88dB
PHONO (MC): 75dB
CD: 107dB
Phono Input yes (MM/MC)
Marantz Musical Premium Phono EQ
Ext. Pre Input (Power Amp Direct)
Preout
Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out 6/1
(PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER)
* [PHONO] and [CD] inputs = high grade terminals.
Speaker Terminal Marantz Original
SPKT-100+
Remote Control Bus Terminal yes (Cinch)
Display yes (Porthole, OLED)
App Control via Network Player
System Remote Controller
(New system remote controller to control SACD 30 and MODEL 30)
Unit (W x H x D mm) 443 x 130 x 432
Packaging Dimensions (W x H x D mm) 534 x 255 x 522
Net weight 14.8kg
Packaging gross weight 17.6kg
Power Consumption 130W
at Standby 0.2W
AC Inlet
Owner’s Manual Web Manual
Quick Start Guide Paper
Chassis Material SECC
Chassis Layer Triple
Foot: New
Panel Color SG / BK
Top cover Steel
Edge-lighting yes (Dimmer)
Volume Knob, Power button, Input Selector, Front Center Panel, Side cover: Aluminum
Bass/Treble/Balance/ REC Out Sel knobs REC Out-->PHONO (Aluminum)
Side screw Copper plated

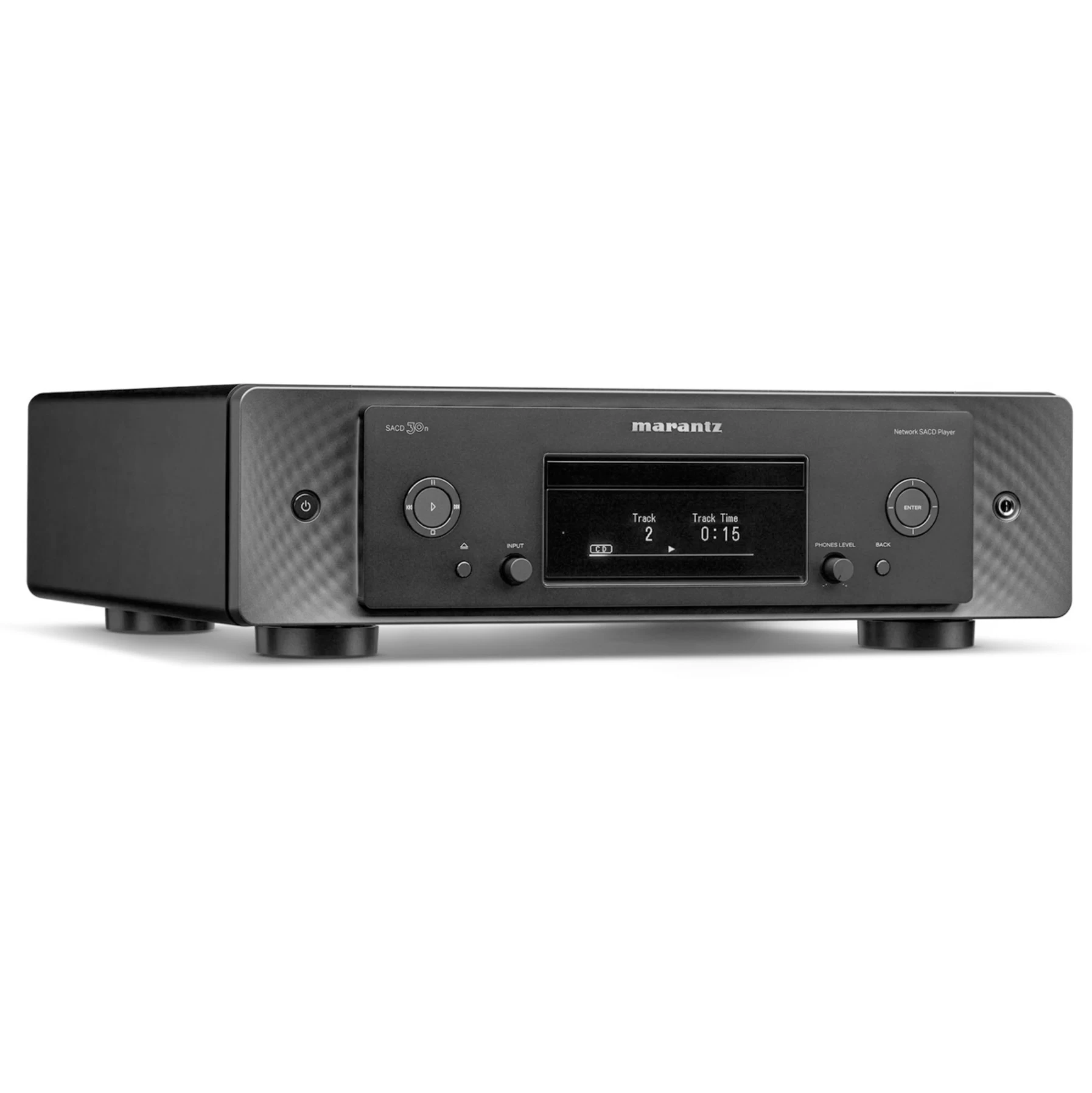

SACD 30n

The most musical digital source player for CDs, SACDs, and high-resolution files, plus multiple streaming services. Delivered through Marantz Musical Mastering processing and a crystal-clear pre-amplifier.

FEATURES

Best Marantz audio quality from any digital source.
Tuned with passion by the Marantz Sound Master.
Marantz CD/SACD transport mechanism reduces interference.
Marantz HDAM circuitry for clean, optimal dynamics.
DAC Mode, SACD/CD player, streamer and very low-noise pre-amplifier.
Marantz Musical Mastering for pure analog audio from any digital source.
Fixed level and independent variable output.
Multiple inputs and outputs for component flexibility.
HEOS® Built-in for whole-home integration and streaming options.
Controllable by the leading voice control services.
Designed to complement the MODEL 30 integrated amplifier.
Available in Black and Silver Gold

TECHNICAL SPECS

SPEC SHEET

Computer music file streaming WMA / MP3 / AAC

WAV192/24 / FLAC 192/24
ALAC 192/24
DSD 2.8/5.6

Gapless Playback Music ServerUSB A: (FLAC, WAV, AIFF, ALAC, DSD)
Internet radio: TuneIn
AirPlay 2: yes (2)
Cloud Music Service:

Spotify Connect,
Amazon Prime,
Deezer Premium+,
iHeart Radio,
Napster, Pandora, SiriusXM,
Sound Cloud, Tidal,
Mood Mix

Color	Black, Silver
