Marantz MM7025 2-Channel Power Amplifier

If you’re impressed by elegantly restrained industrial design, MM7025 is guaranteed to make a lasting—and very positive—impression. The subtly curved aluminum/glass resin front panel adds a sophisticated touch that complements any décor.  The central porthole display reflects iconic Marantz designs of the past while it brings you an “at a glance” view of the amplifier’s operating status.

FEATURES

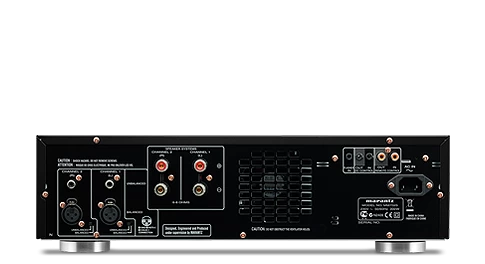

• Both single-ended RCA and balanced XLR inputs assure system compatibility regardless of your preamp or processor
• For maximum flexibility, you can choose inputs independently for each channel
• MM7025’s heavy duty, gold-plated, four-way binding posts accept virtually any choice of loudspeaker cable
• MM7025 encourages various system configurations: Use one for dedicated two-channel listening, or use two to as zone amplifiers to power speakers in different rooms
• Current feedback circuits insure the purest sonic reproduction regardless of source
• Control over difficult speakers to reproduce both dynamic musical peaks and whispered dialog without blemish
• High-capacity power supply begins with an oversized EI-core transformer feeding carefully chosen capacitors capable of storing 30,000 µF of energy to deliver peak power to all amplifier stages for distortion-free reproduction of the most complex sources
• Specially selected LAPT Hyper-Power output transistors, originally selected for Reference Series use, deliver fortissimo and pianissimo passages with equal aplomb
• Transistors are mounted on a forced-air “thermal tunnel” for operation at ideal temperatures
• Less than 14” deep from front panel to rear speaker terminals to let you place the amplifier almost anywhere—in a cabinet or on a shelf
• Detachable AC cord makes placement easy, even when there’s little room
• Rear panel connections for a “flasher” input that conveys On/Off commands from an infrared (IR) remote controller
• DC trigger input (and output) lets you “daisy chain” one or several MM7025s to turn on and off in synchronization with your preamplifer or surround processor

MANUALS

• User Guide
