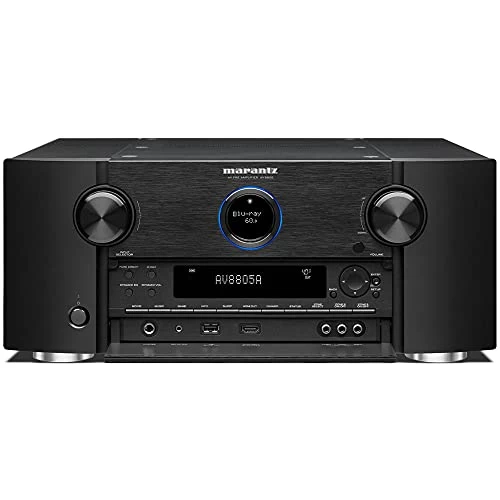

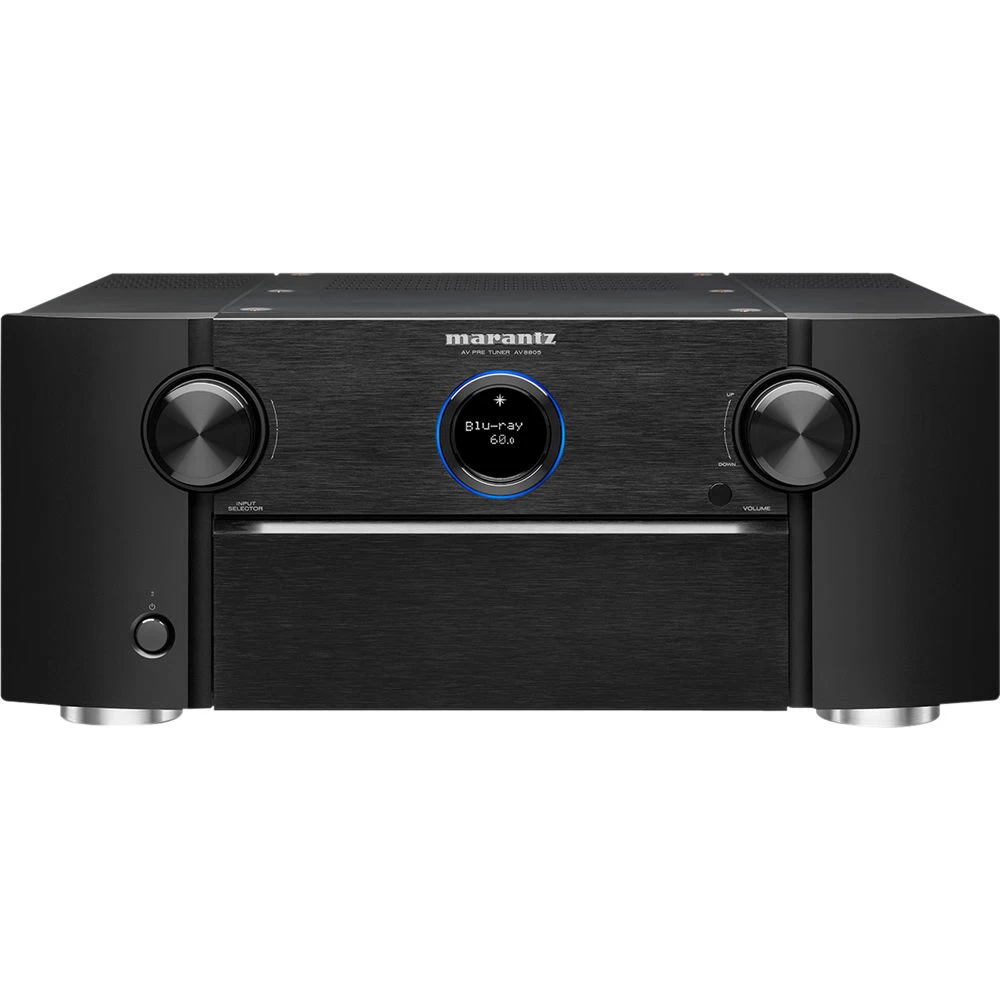

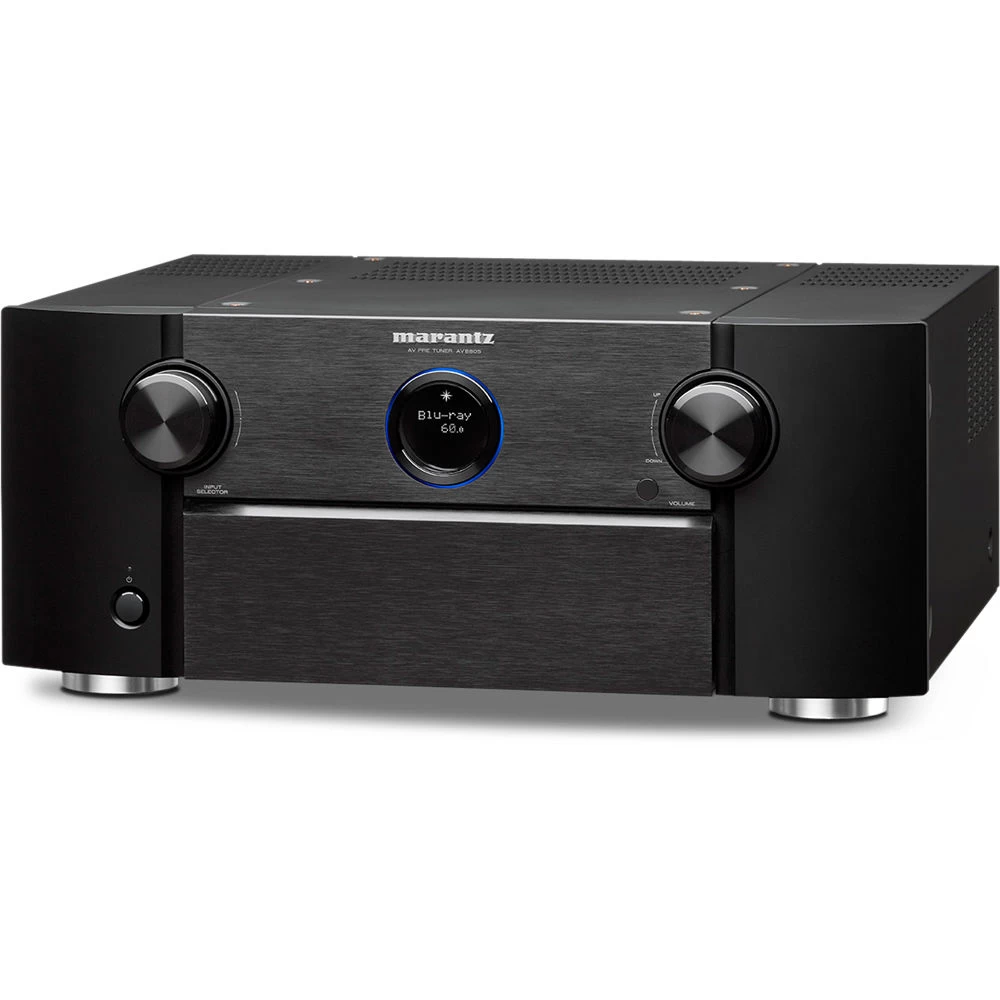

Marantz AV8805A 13.2Ch 8K UHD Pre-Amplifier With HEOS Built-in And Voice Control

Immerse yourself in three-dimensional audio with the 13.2 Channel 4K Ultra HD Network AV Surround Preamplifier with HEOS from Marantz. Designed for audiophile home cinema and music listening, this preamplifier offers 13.2-channel processing capability and supports most high-resolution, multi-channel audio formats including Dolby Atmos and DTS:X, with Auro-3D support scheduled via future firmware update. The AV8805 enables you to enjoy enhanced audio quality supported by proprietary current feedback and HDAM technology that passes signals through 15.2-channel XLR or RCA outputs. Moreover, it allows you to stream music throughout your home with HEOS multi-room listening and full wireless connectivity through the HEOS app or Amazon Alexa Voice Control, supported by Wi-Fi, Bluetooth, and Apple AirPlay. You can also voice-control the AV8805 via your Google Assistant, Siri, or Josh.ai ecosystem.

FEATURES

• Masterfully Engineered – Its high-resolution preamplifier uses in total 15 single Marantz HDAM boards for reference-setting audio performance.
• Breathtakingly Natural 3D Audio – Movie and TV sound moves around you in space, emulating the finest movie theaters and the real world.
• Maximum Flexibility – From high-resolution stereo to 13.2 channel surround sound, experience pure Marantz audio through any configuration you need.
• Tuned For Pure Enjoyment – No matter how you listen or what you watch, the AV8805A is extensively tuned to deliver the most enjoyable music and movie experiences you can imagine.

TECHNICAL SPECS

• Amplifier
• Amplifier Type Preamplifier
• Channels 13.2
• Frequency Response 10 Hz to 100 kHz +1/-3 dB (Direct Mode)
• THD+N 0.005% (20 Hz to 20 kHz, Direct Mode)
• Video
• Upscaling 4K UHD

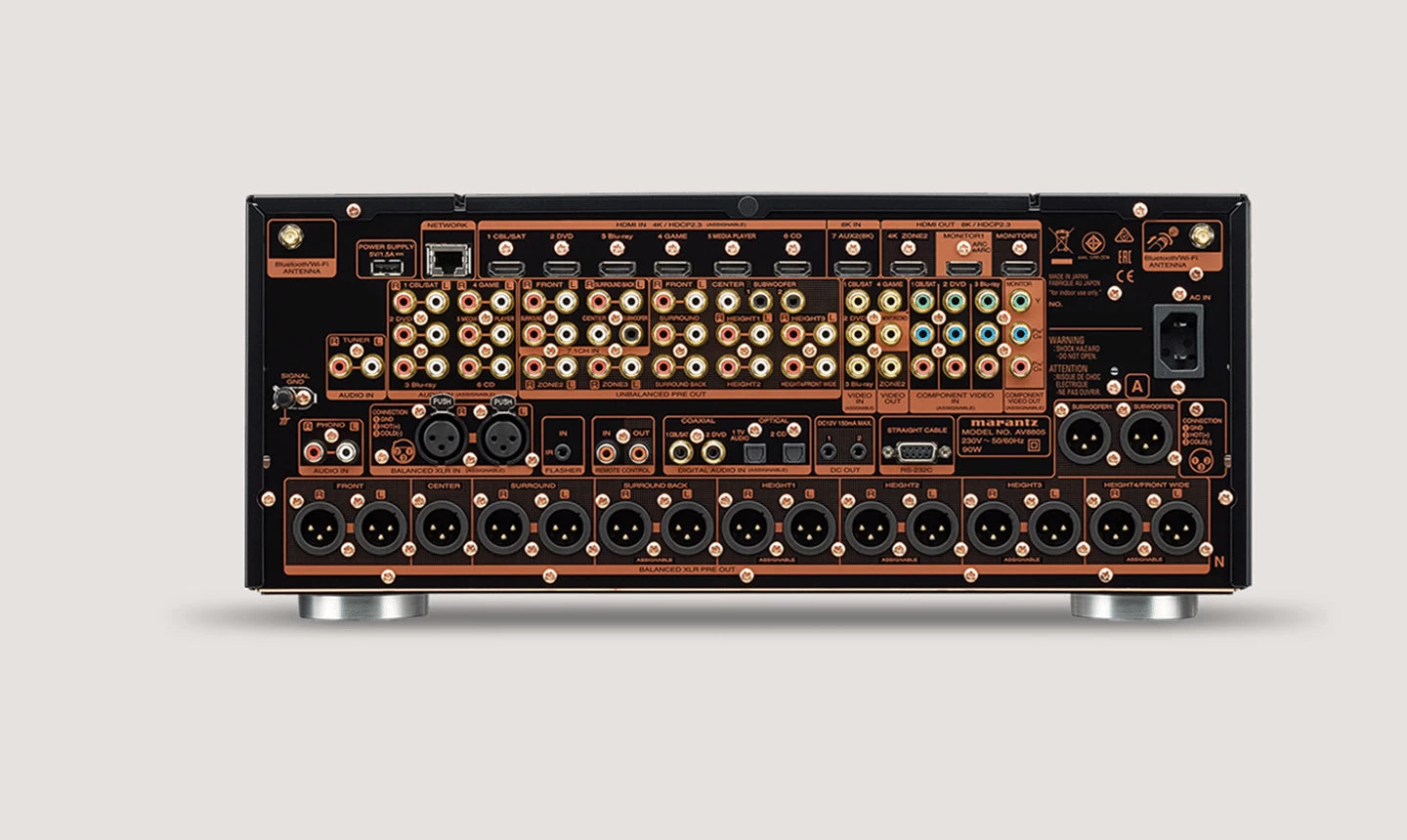

• Connectivity
• Rear A/V Inputs 7 x HDMI
• 3 x 3RCA Component
• 4 x RCA Composite
• 1 x Stereo XLR
• 6 x Stereo RCA
• 1 x Stereo RCA (Phono) with Ground Screw
• 2 x Digital Coaxial
• 2 x Optical TOSLINK
• 1 x 7.1-Channel RCA
• Rear A/V Outputs 3 x HDMI
• 1 x 3RCA Component
• 2 x RCA Composite
• 1 x 15.2-Channel XLR Pre-Out
• 1 x 15.2-Channel RCA Pre-Out
• 1 x Stereo RCA Zone 2 Pre-Out
• 1 x Stereo RCA Zone 3 Pre-Out
• Front I/O 1 x 1/4″ / 6.35 mm Headphone Output
• 1 x 1/8″ / 3.5 mm Setup Mic Input
• 1 x HDMI Input
• 1 x 3RCA Composite Input
• 1 x Stereo RCA Input
• Other Rear I/O 1 x RJ45 (Ethernet)
• 1 x USB Type-A (Power) Output
• 2 x Bluetooth/Wi-Fi Antenna Terminal
• 1 x FM Antenna Terminal
• 1 x AM Antenna Terminal
• 1 x 1/8″ / 3.5 mm (IR) Input
• 1 x RCA (Remote) Input
• 1 x RCA (Remote) Output
• 2 x 1/8″ / 3.5 mm (12 V Trigger) Outpu
• 1 x DE-9 (RS-232C)
• HDCP Support Version 2.2
• Input Sensitivity
• RCA: 200 mV
• XLR: 400 mV
• Phono RIAA EQ Deviation ±1 dB (20 Hz to 20 kHz)
• Rated Output / Impedance
• D/A Output: 2 V /
• RCA Pre-Out: 1.2 V /
• XLR Pre-Out: 2.4 V /
• Dynamic Range D/A Output: 100 dB
• Signal to Noise Ratio
• 105 dB (IHF-A / Direct Mode)
• 74 dB (IHF-A / 5 mV Input)
• D/A Output: 102 dB
• Total Harmonic Distortion (THD) D/A Output: 0.008% (1 kHz, at 0 dB)
• Wireless Connectivity
• Wi-Fi Wi-Fi 4 (802.11n)
• Wireless Security WEP 64, WEP 128, AES, TKIP
• Bluetooth 3.0 + EDR
• Bluetooth Profiles A2DP 1.2, AVRCP 1.5
• Supported Audio Codecs SBC
• Bluetooth Range 98.4′ / 30 m
• Tuner Section
• Radio Frequencies
• FM: 87.5 to 107.9 MHz
• AM: 520 to 1710 kHz>
• Sensitivity
• FM Effective: 1.2 µV / 12.8 dBf
• AM Effective: 18 µV
• Mono at 50 dB: 2.8 µV / 20.2 dBf
• Signal to Noise Ratio
• 70 dB (IHF-A / Direct Mode / Mono)
• 67 dB (IHF-A / Direct Mode / Stereo)
• Distortion
• Mono: 0.7% at 1 kHz
• Stereo: 1% at 1 kHz
• Power
• AC Input Power 120 VAC, 60 Hz
• Power Consumption
• Active: 90 W
• Standby: 0.2 W
• CEC Standby: 0.5 W
• Physical
• Dimensions (W x H x D) 17.3 x 7.3 x 16.1″ / 43.9 x 18.5 x 40.9 cm
• Weight 30.2 lb / 13.7 kg
• Packaging Info
• Package Weight 37.75 lb
• Box Dimensions (LxWxH) 21 x 19 x 12″
