Marantz AV 10 Reference 15.4 Channel Home Theater Pre-Amplifier/Processor

Reference 15.4 Channel Balanced Processor with Dolby Atmos, DTS:X Pro Auro 3D, IMAX Enhanced and 8K Ultra HD, and HEOS® Built-in streaming. AV 10 is a reference-level AV processor.

FEATURES

• Peerless Performance: Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
• Technology Leader: AV 10 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
• Exquisite Design: A modern expression of timeless design principles, AV 10 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

TECHNICAL SPECS

• Multichannel Surround
• DTS HD Master / DTS:X / DTS:X Pro: Yes / Yes / Yes
• DTS Neo:X / DTS Neural:X: No / Yes (15ch)
• DTS Virtual:X: Yes
• IMAX Enhanced: Yes
• Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music: Yes / Yes / Yes / Yes
• Dolby ProLogic Ilz / Dolby Surround: No / Yes
• Auro 3D: Yes
• 360 Reality Audio / MPEG H: Yes / Yes
• Multichannel Stereo: Yes
• Max Number of Processing (Preamp) Channels: 15.4
• Sound Enhancements

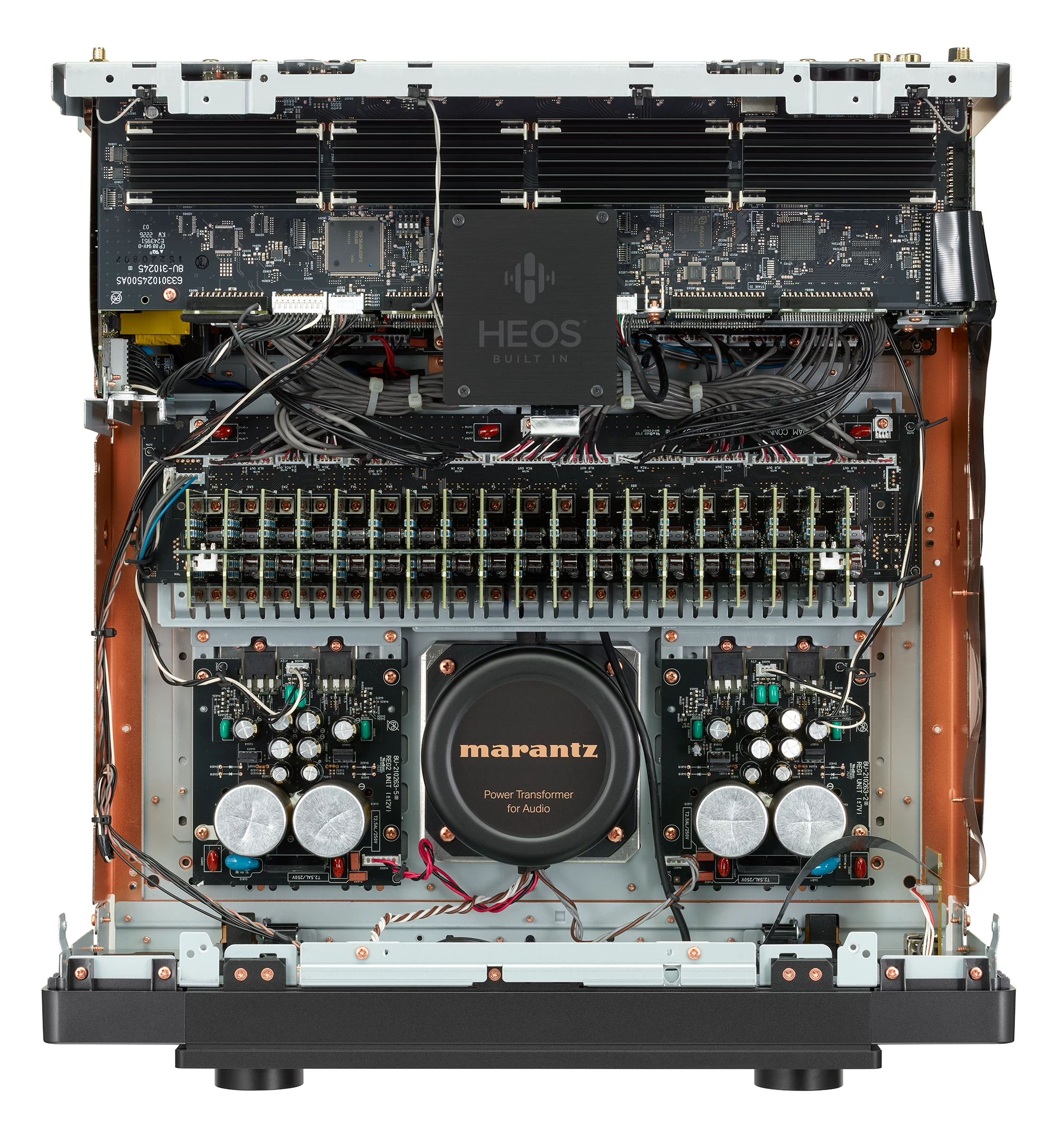

• Copper Plated Chassis: Yes
• Power Transformer: Toroidal / EI: Yes / No
• Current Feedback Topology: Yes
• Hyper Dynamic Amplifier Modules (HDAM): Yes
• Pure Direct: Yes
• Gold plated RCA terminals: Yes
• Clock Jitter Reducer: Yes
• Audyssey: MultEQ XT32
• Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
• Audyssey LFC: Yes
• Dirac Live upgradability: Yes
• Compressed Audio Enhancer: MDAX2: Yes
• Network
• HEOS Multi-room and Streaming: Yes
• Bluetooth Re-transmit for Bluetooth headphones: Yes
• Alexa / Google Voice Assistant / Apple HomePod: Yes / Yes / Yes
• Network Audio Sharing: Yes
• Lossy formats: MP3 / WMA / AAC: Yes / Yes / Yes
• Lossless formats: FLAC / ALAC / WAV: Yes / Yes / Yes
• Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
• DSD Audio Streaming: Yes (2.8/5.6MHz)
• HDMI
• HDMI Inputs: Back / Front: 7 / No
• HDCP2.3 support: Yes
• HDMI Outputs: Main / Zone: 2 / 1
• HDMI to HDMI Scaling: 1080P/4K to 8K
• GUI Overlay on HDMI: Yes
• HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
• 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 7 / 2 (up to 40Gbps)
• HDMI 2.0: 3D / 4K / CEC / ARC: Yes / Yes / Yes / Yes
• Enhanced ARC: Yes
• HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
• ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
• Variable Refresh Rate / Quick Frame Transport: Yes / Yes
• 3D Signal Pass-Through: Yes
• Multi-Room / CI
• HEOS Multi-Room Integrated: Yes
• HEOS Link Compatibility: IR/ IP: Yes / Yes
• Multi-Room Zones: 3
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
• Zone Audio Output: Speaker / Preout: No / Yes
• Zone HDMI Output from HDMI Source: Yes
• IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Output: 2
• HDMI Diagnostics: Yes
• Auto Speaker Setup by Microphone: Audyssey MultEQ XT32
• Dirac Live: (upgrade)

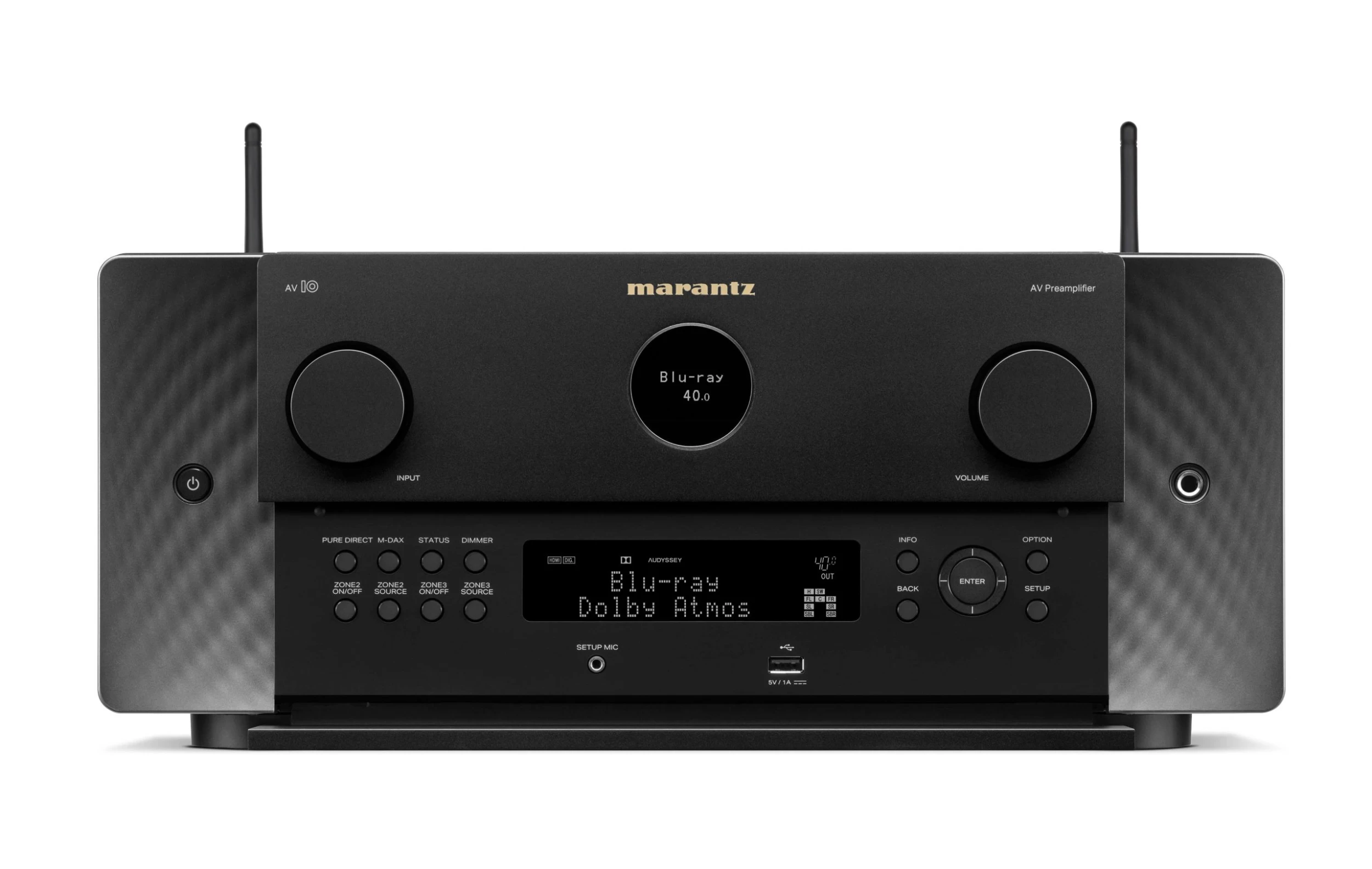

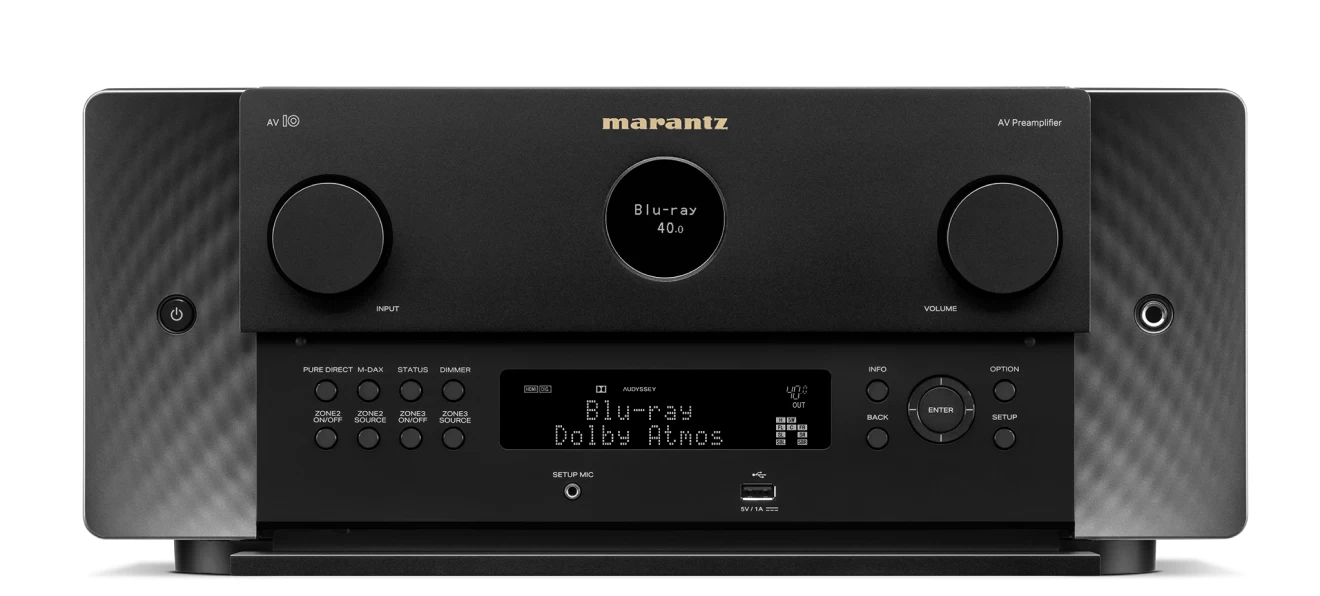

• Front Display: 2 line FLD + port hole OLED
• Graphic User Interface – GUI: Modern HD GUI
• GUI Languages: 3

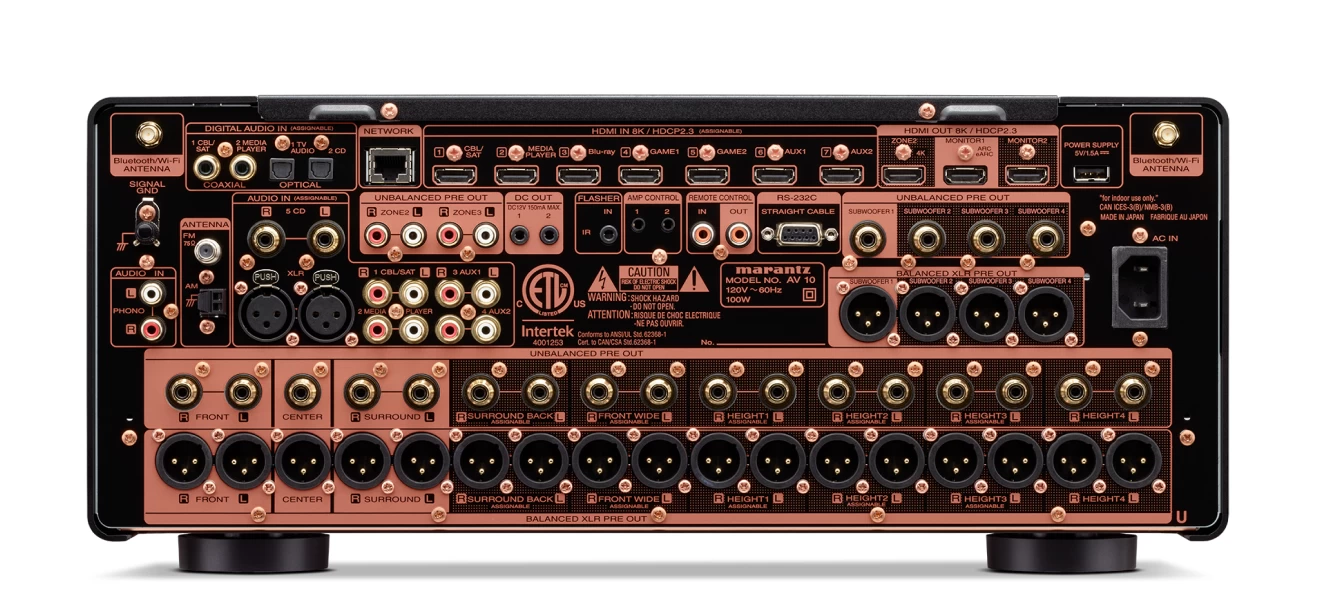

• Inputs/Outputs
• Composite In / Out: No / No
• Component In / Out: No / No
• HDMI In / Out: 7 / 3
• Multi-Room Video Out: Video / HDMI: No / Yes
• Analogue In / Out: 5 (1x XLR) / No
• Phono (MM): In Yes
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: analog / digital: 2 / No
• Multichannel Pre Out: Yes (17.4 RCA & 17.4 XLR)
• Subwoofer Out: 4 (independent)
• Speaker A / B: assignable pre out
• Bi-amp drive: assignable pre out
• Multi-Room Speaker Terminal: pre out
• System Remote Control RC047SR
• Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes
• Power Consumption in W 100
• Standby Consumption in W 0.2
• CEC Standby Consumption in W 0.5
• Network Standby Consumption in W Less than 2.0
• Maximum Dimensions: 17.4 x 19.8 x 7.4
• Weight in lbs.: 37.0
