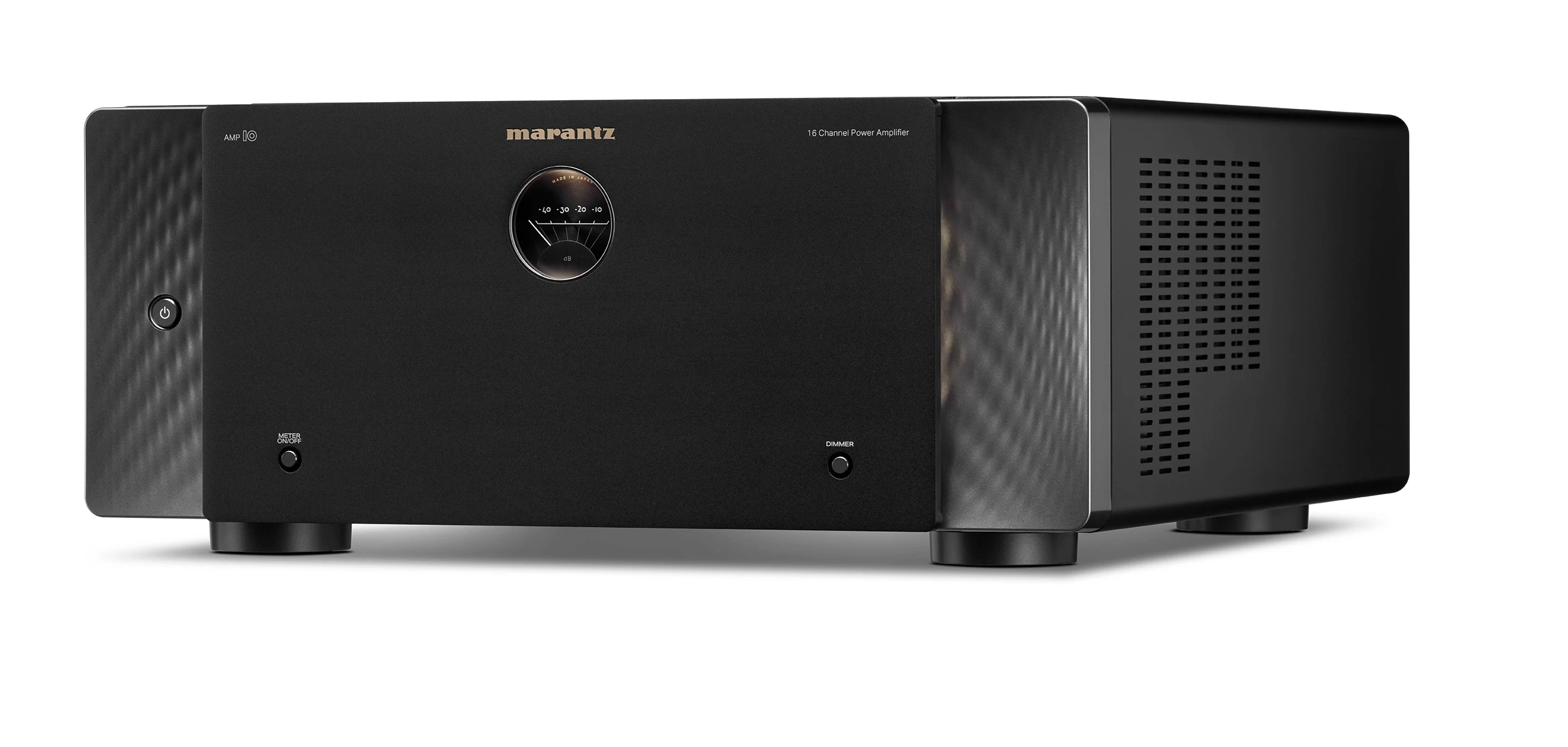

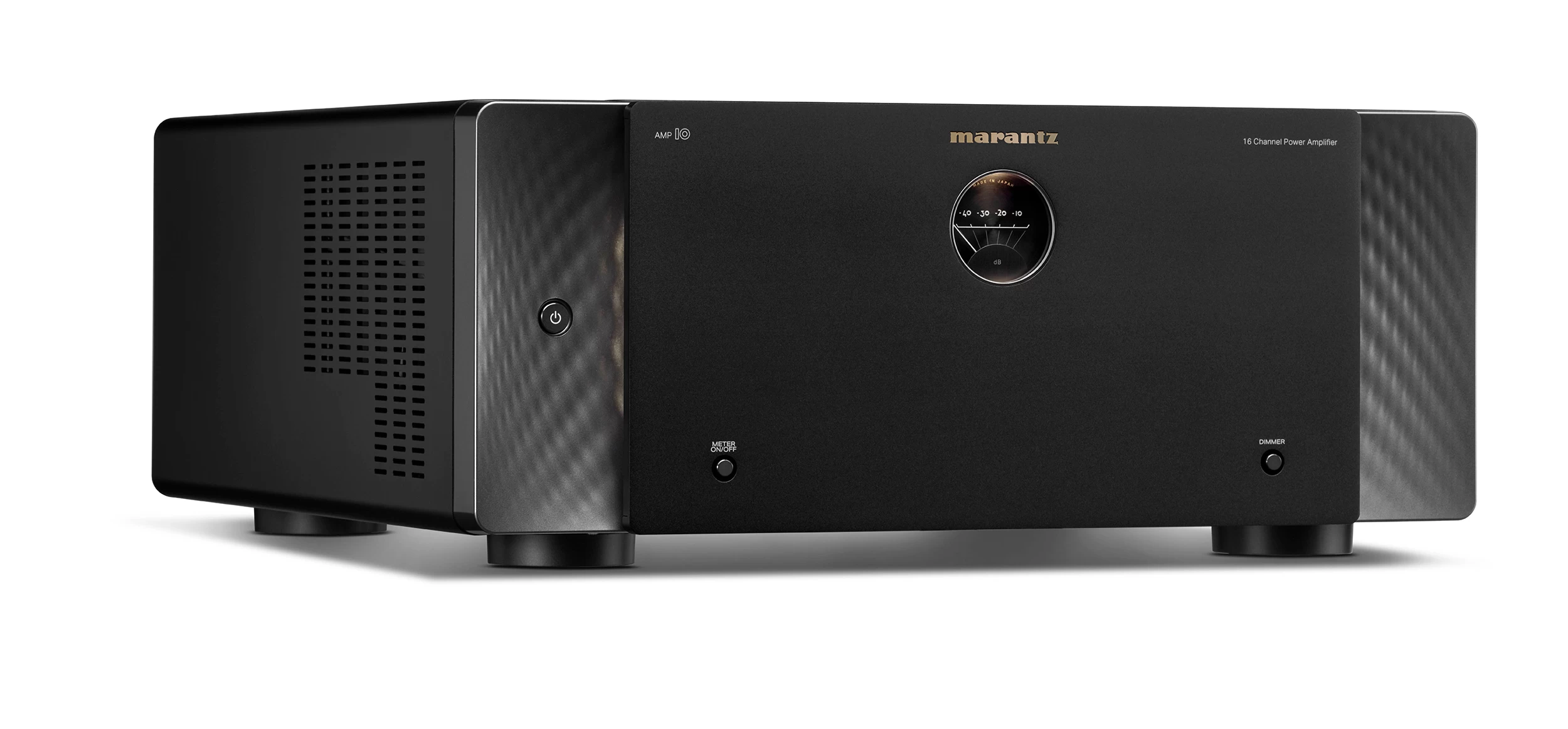

Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theater. Marantz HDAM, Current Feedback Amplification, and balanced line level input.

FEATURES:

Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
Technology Leader
AMP 10 is engineered using best-in-class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.
Exquisite Design

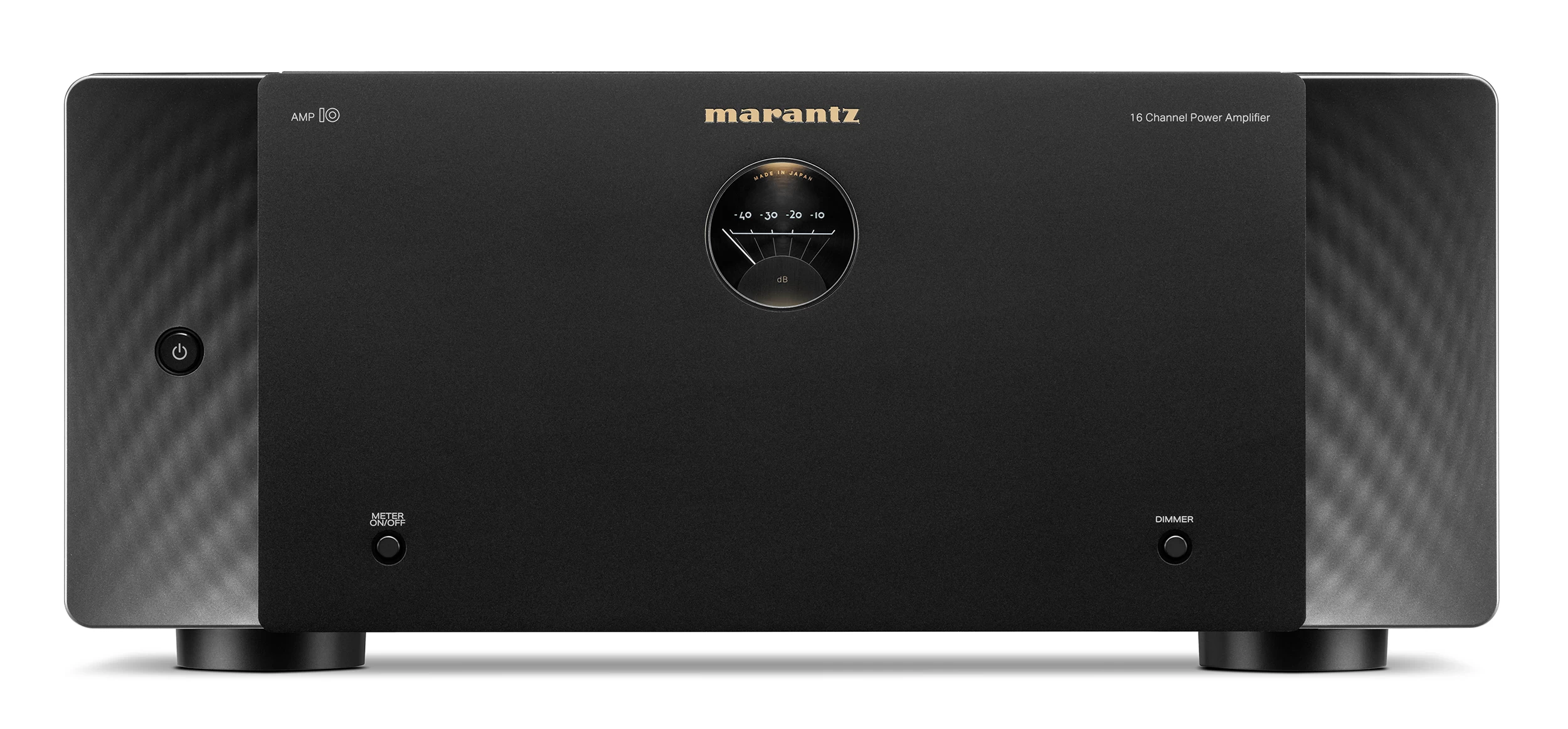

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.
Ultimate Performance

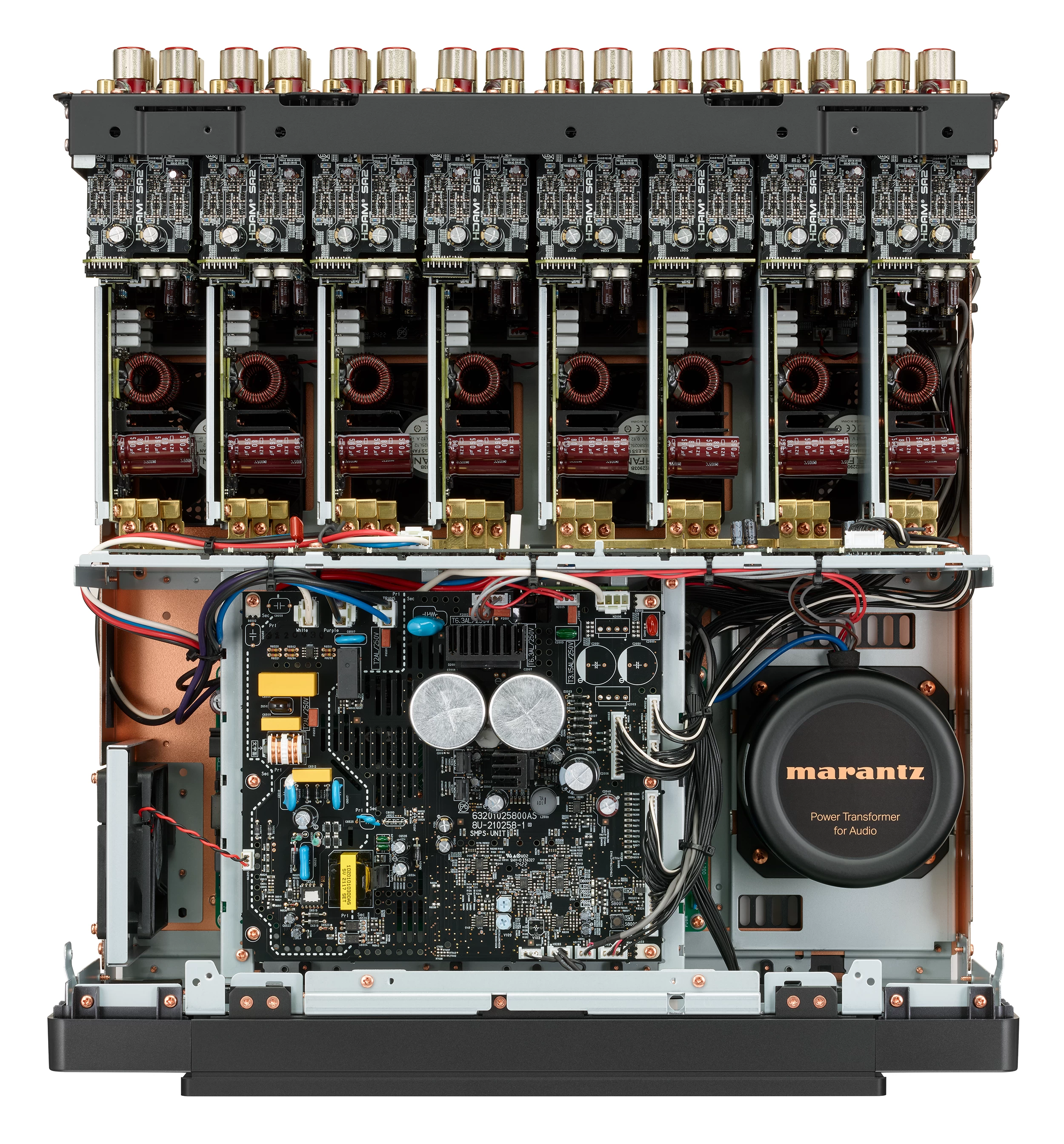

We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.
Style
Excellence is heard and seen. AMP 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.
Customizability
Thoughtfully curated connectivity options and selectable amplifier modes let you make AMP 10 your own.
Powerful
AMP 10 gives you 16 channels of commanding power, deftly nuanced.

SPECS:

Multi-Room / CI

IP Control / RS232 Control / Web Control / App Control	No / Yes / No / No
IR Flasher In	Yes
Marantz Remote Bus	Yes
DC Trigger Input/ Output	1 / 1

Others

Front Display	Level Meter
Firmware Update by Network / USB / RS232C	No / No / No
Auto Power off	Yes

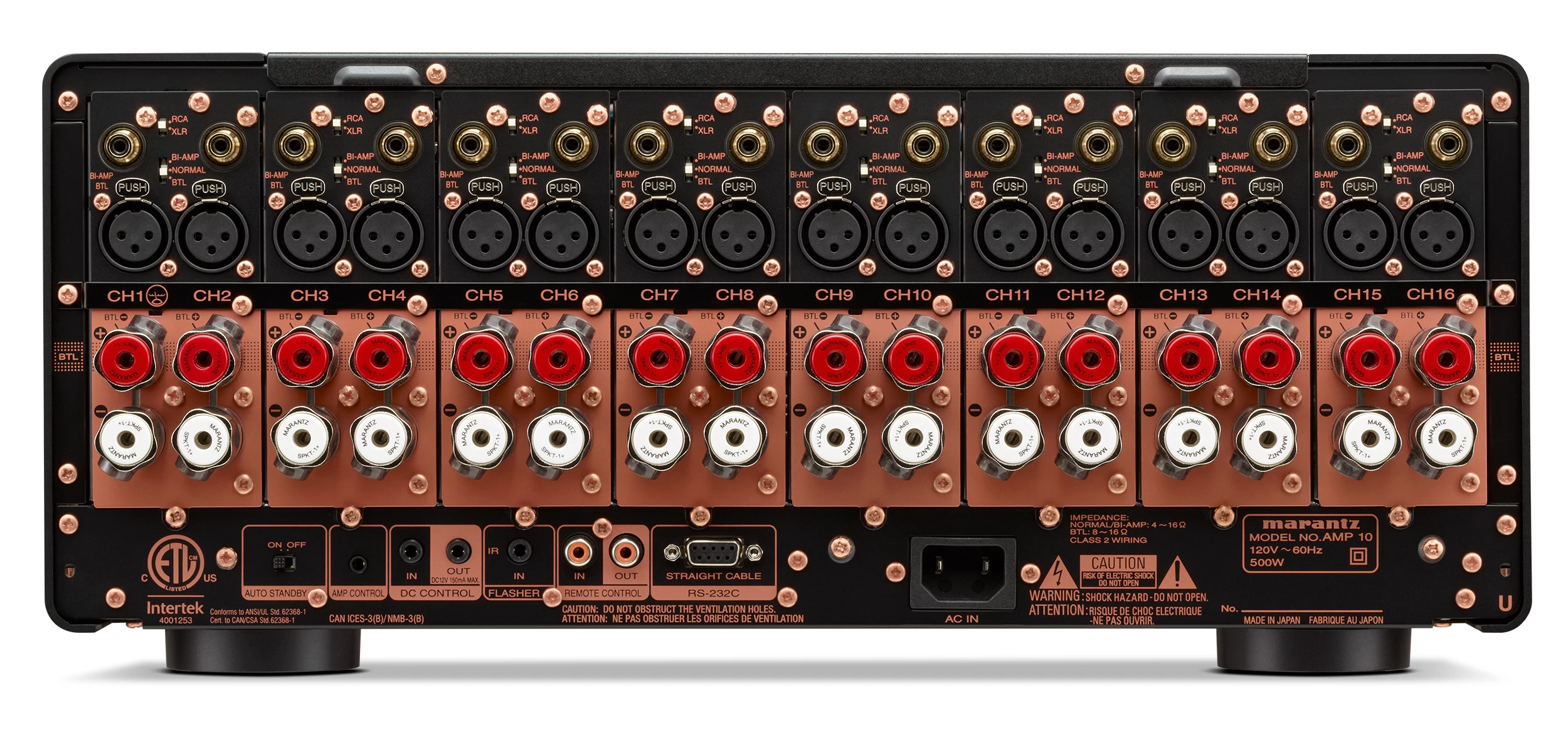

Inputs/Outputs

Main Amplifier in	Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker Terminal	SPKT-1+
Number of Speaker Terminals	16
Bi-Amp Drive /BTL Drive	Yes / Yes
Level Meter	Yes
Chasiss	Copper Plated

Specifications

Number of poweramps	16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL	200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal	400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal	200W
70% Guarantee(Normal/Bi-Amp/BTL)	Yes
100% Guarantee(Normal/Bi-Amp)	Yes

General

Metal Front Panel	Yes
Pre-Programmed / Learnable / LCD Display	No / No / No
Power Consumption in W	500
Power Consumption No-Sound in W	140W
Standby Consumption in W	0.2
Maximum Dimensions	【 17.4 x 19.2 x 7.4 】
Weight in lbs.	43.7
