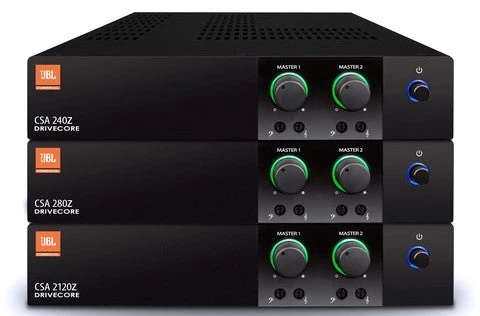

JBL Professional Commercial Series Two-Channel 40-Watt Power Amplifier

By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.

From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore™ Technology, we continue to set new standards in commercial power amplifier technology.

Simple to configure, the Commercial Series amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.

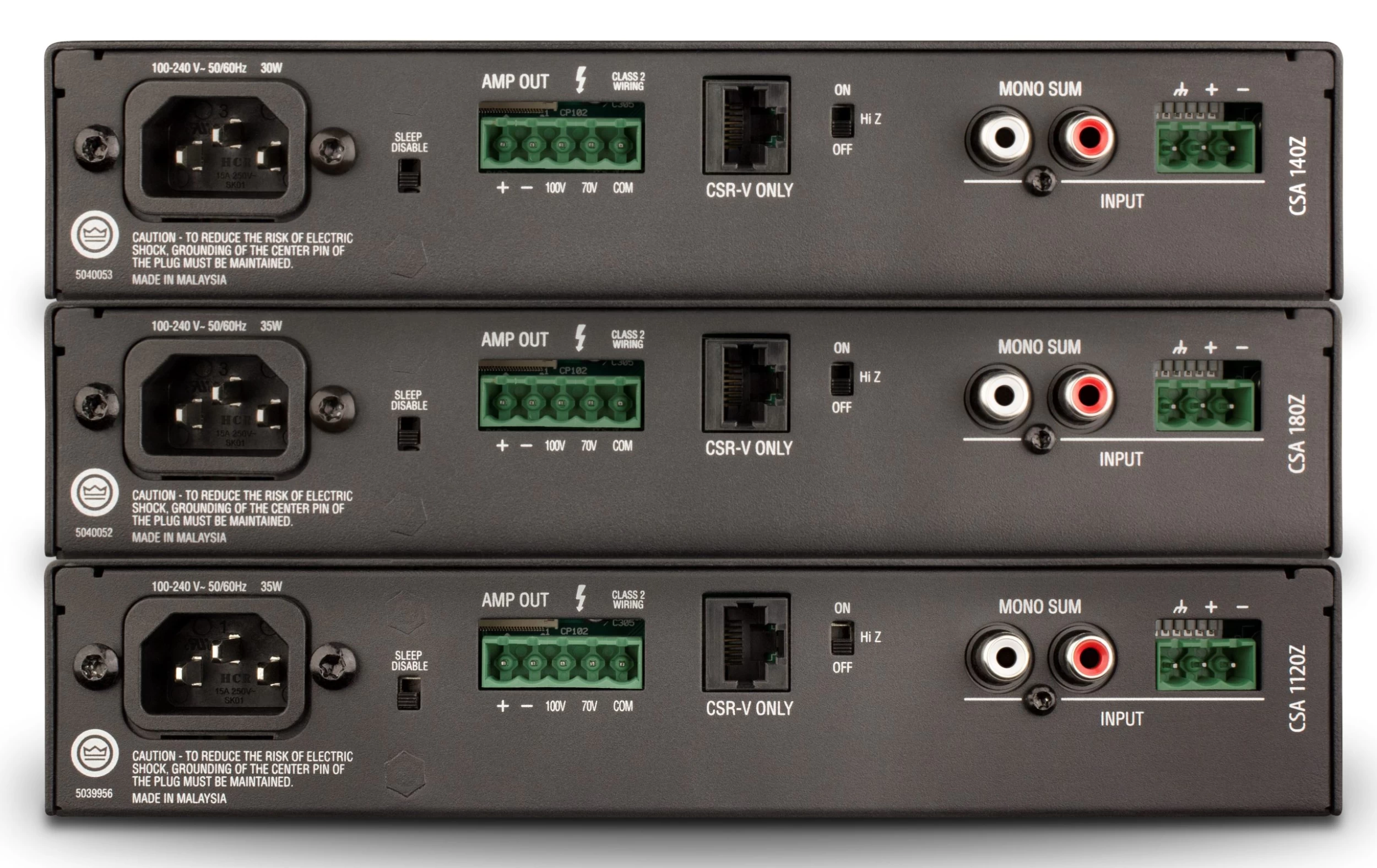

Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every Commercial Series amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz.

FEATURES

• 2 40W output channel
• Built-in 70V and 100V
• Fanless, space-saving 1U design
• Sleep mode disable function
• Energy-efficient amplifier
• Sleek industrial look with illuminated rings making knobs easy to see and use
• Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
• Universal power supply
• Energy Star® Certified

TECHNICAL SPECS

• Power Output: 40W
• Output Channels: 2
• Input Sensitivity: 1.4Vrms for 8-ohms
• Phantom Power: 27VDC
• AC Line Voltage: 100 – 240V, 50/60 Hz
• Input Impedance: 20K ohms/50K ohms
• Dimensions: 1.75” x 8.5” x 12” (44.45mm x 215.9mm x 304.8mm)
• Included Accessories: Rack mounting kit
