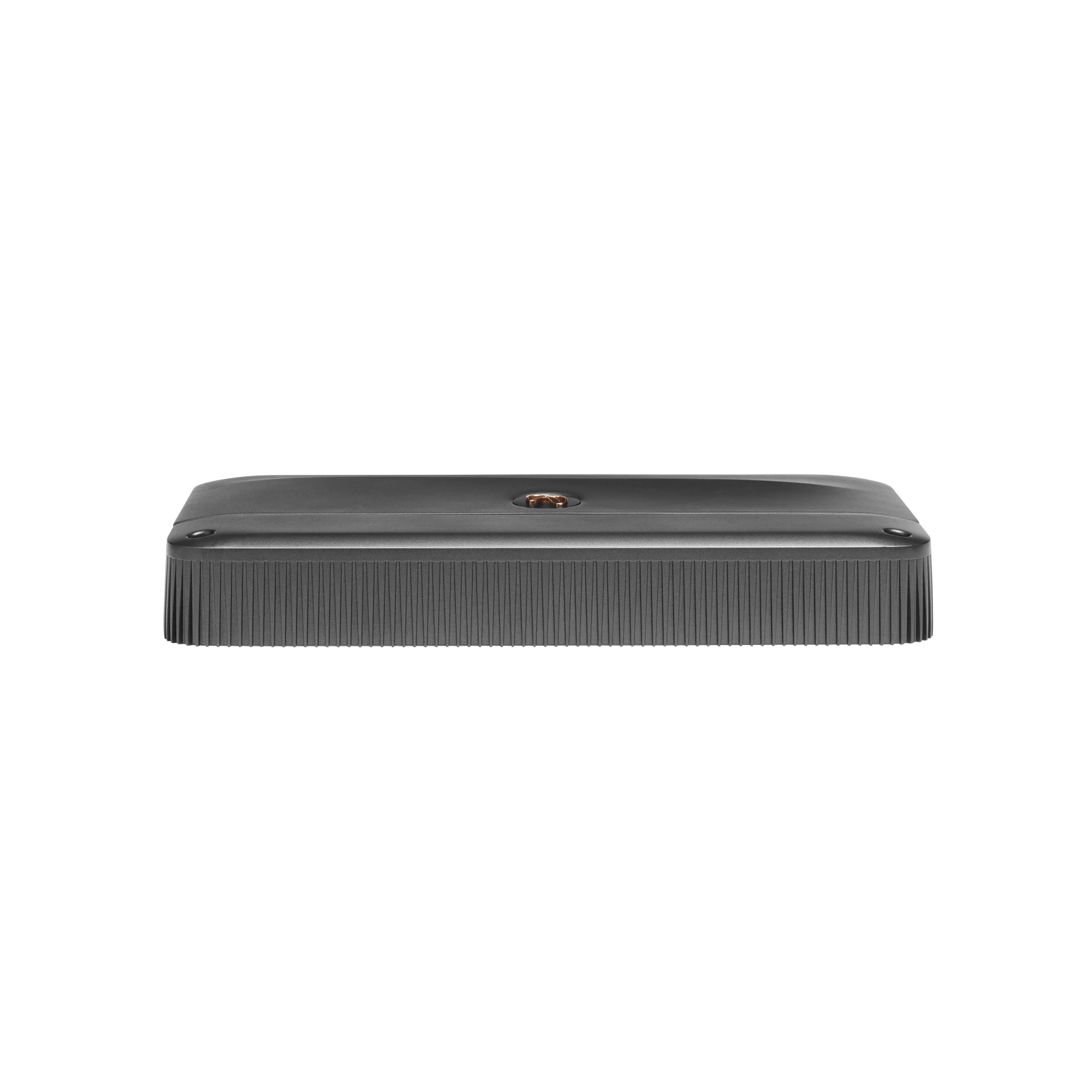

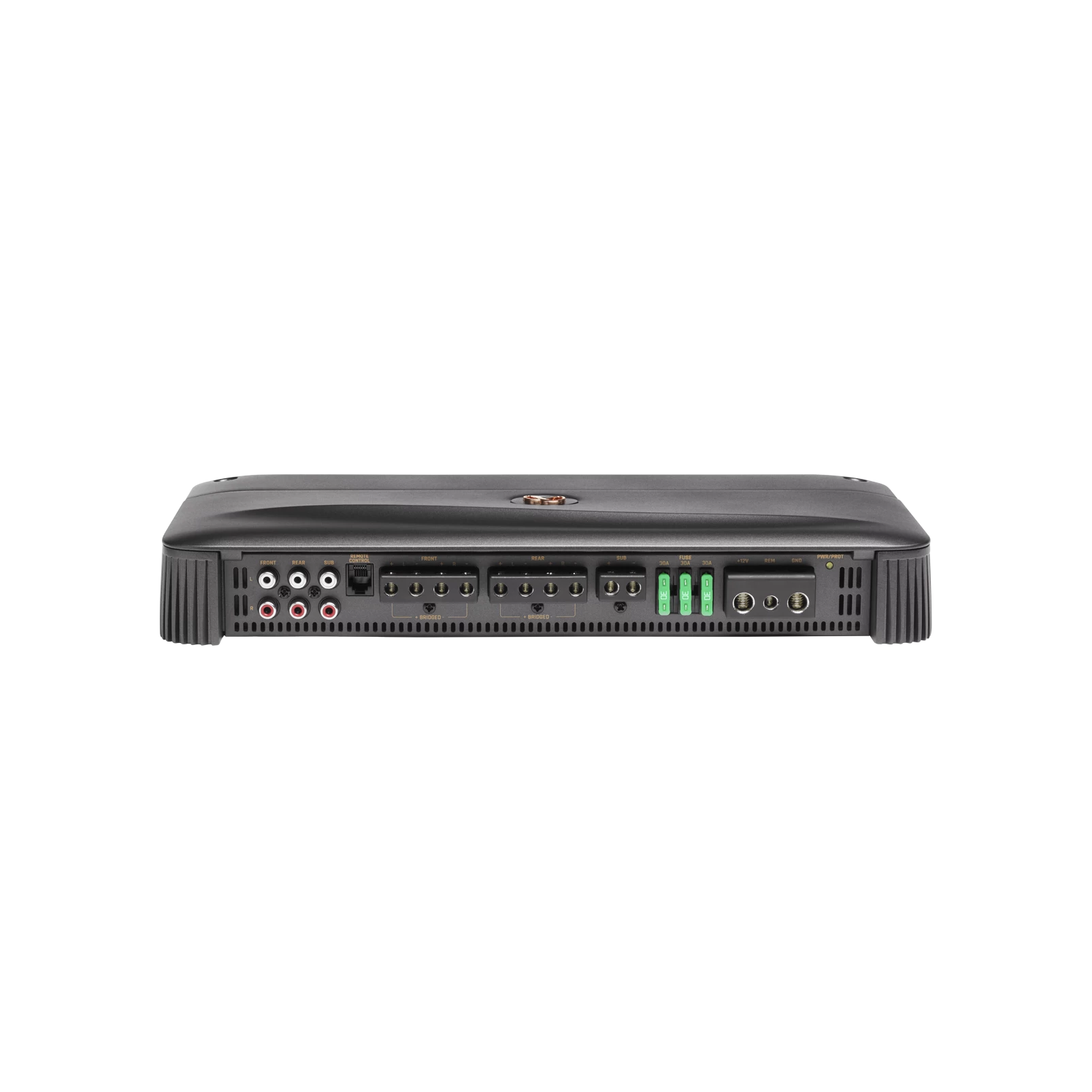

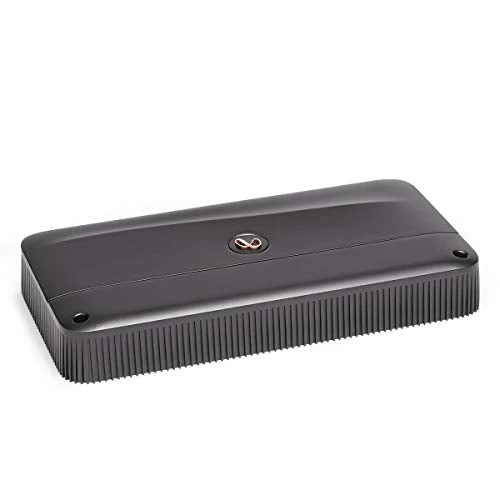

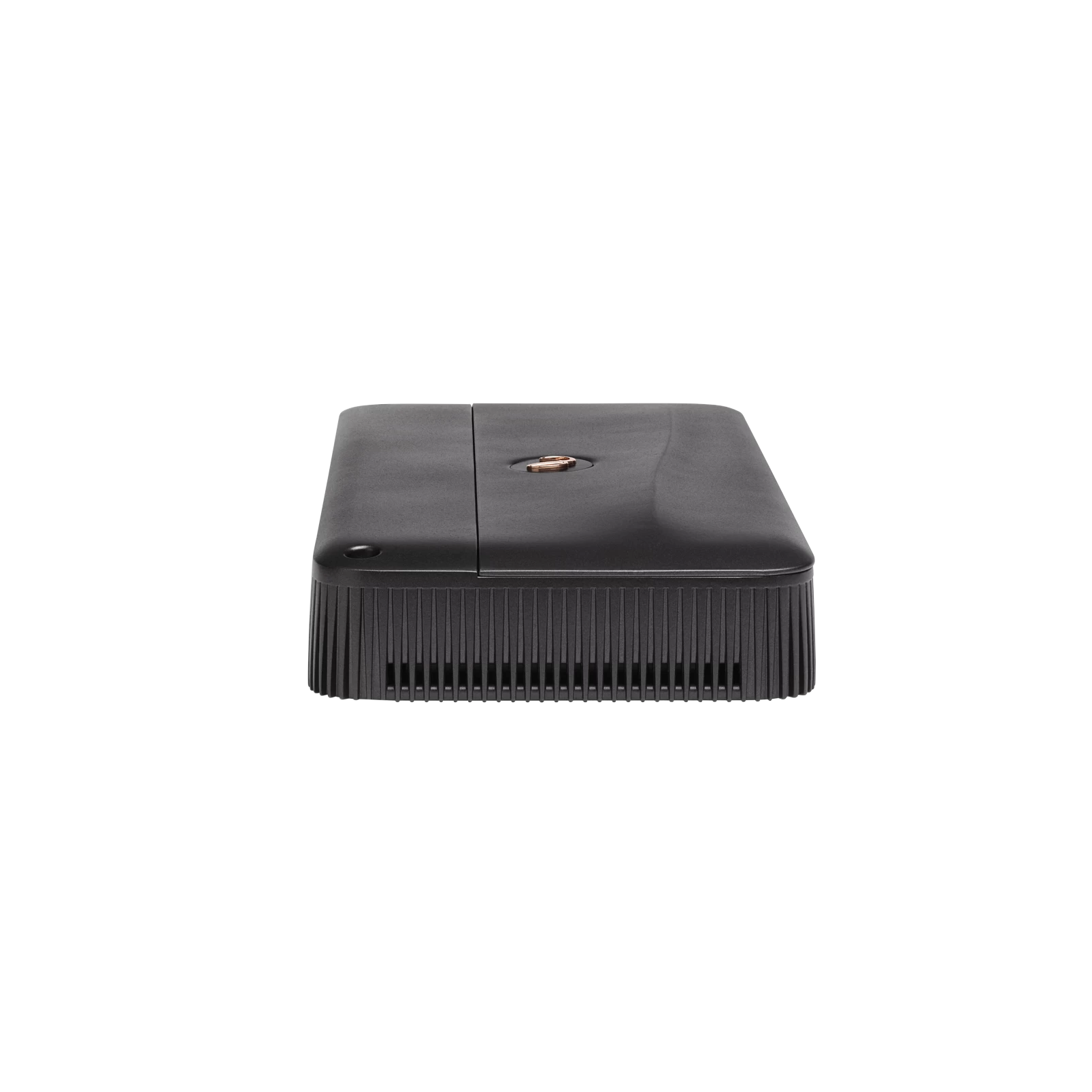

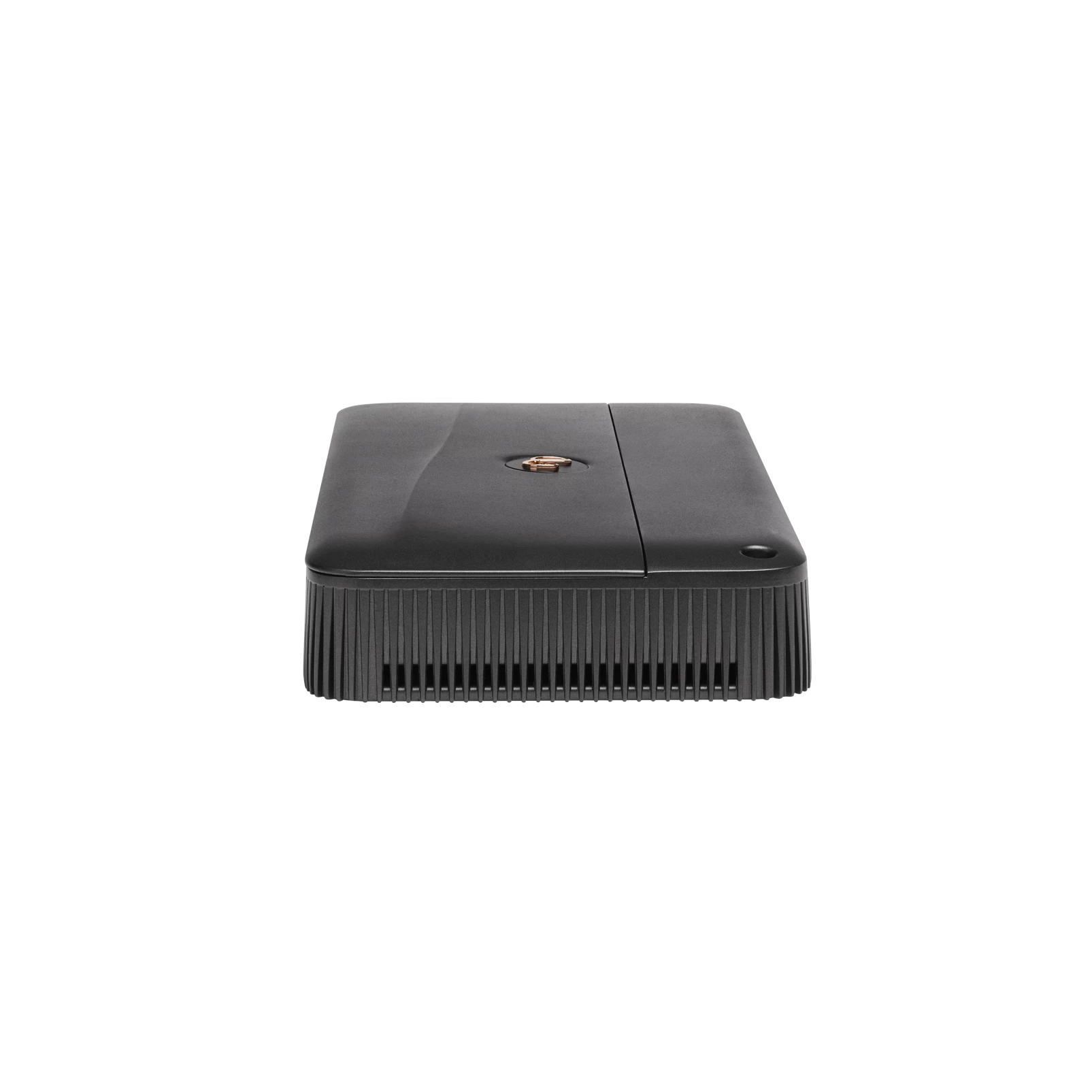

Infinity Reference 7005 – 5-Channel, 50w X 4, 500w X 1 Amplifier With Remote Level Control

Infinity’s Reference 7005A 5-channel amplifier provides a full system solutions without breaking a sweat, and it’ll look good doing it. It delivers 50-Watts RMS to each of the front and rear speakers, and a ground pounding 500-Watts RMS to the subwoofer channel — a much better balance of “speaker-to-sub” power than most of conventional 5-channel amplifiers on the market. For higher output, you can bridge the amp to 3-channel mode and power your front speakers with 140-Watts per channel, while still delivering 500-Watts to the subwoofer channel. Speaker-level inputs allow the Reference 7005A to work in almost any system, even if you’re keeping your factory radio. Separate high-pass and low-pass crossovers on the front and rear channels and dedicated low-pass crossover, bass boost, and phase switch for the subwoofer channel provides an incredible amount of control and tuning capability. The Reference 7005A is truly a total system solution in one easy to install chassis.

FEATURES

• Compact size
• High and low level input
• Variable crossover and bass boost
• Low noise and distortion
• Input Level Control
• Full on-board protection
• Phase Switch
• RBC wired remote
• Class AB+D amp technology
• Turn-on mode

TECHNICAL SPECS

• 5 channel car amplifier
• 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
• 65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
• 140 watts RMS x 2 bridged at 4 ohms + 500 watts
• RMS x 1 at 2 ohms
• Variable high- and low-pass filters (32–320Hz, 12dB/octave) on front and rear channels
• Low-pass filter (32–320Hz, 12dB/octave) on subwoofer channel
• Bass boost on subwoofer channel (0-12dB at 45Hz)
• Phase switch on subwoofer channel (0, 180 degrees)
• Preamp and speaker-level inputs
• Fuse rating: 30A x 3
• 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• W x H x D = 360mm x 55.5mm x 180mm
• W x H x D = 14-3/16″ x 2-3/16″ x 7-1/8″

WHAT’S IN THE BOX?

• One Reference 7005A five channel amplifier
• 4 Bare wire-to-RCA adapters
• Six 30A ATO fuses (3 installed, 3 spare)
• Remote bass control module
• 16.5′ Remote control cable (RJ-25 plugs on both ends)
• 2 Self-tapping screws for remote (M3 x 15mm)
• 4 Mounting screws (M4 x 53mm)
• Owner’s Manual
• 2 Infinity decals
• 1 logo badage
