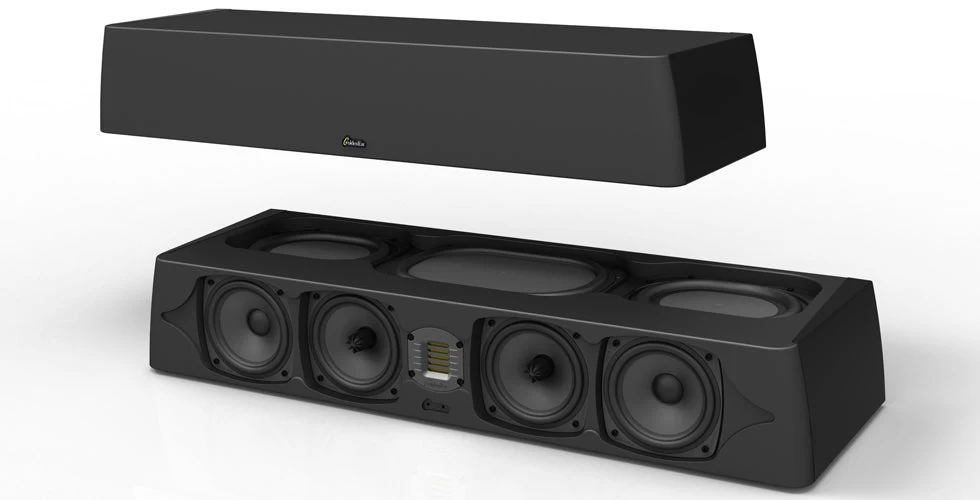

The top of the SuperCenter lineup is the reference-performance SuperCenter Reference, the perfect match for large GoldenEar home theater systems. Only 35” wide, it includes four 5-1/4″ drivers utilizing the focused-field magnet structure developed for the Triton Reference, the GoldenEar Reference high-gauss High Velocity Folded Ribbon tweeter and three planar passive radiators. Our unique linear-phase crossover network employs a fully balanced topology which reduces stray capacitances for dramatically improved clarity. It utilizes precision film capacitors and special internal wiring to perfectly blend the drivers for a seamless homogeneous sound.

FEATURES

Three separate driver chambers for enhanced performance
Precision film capacitors and special internal wiring to perfectly blend the drivers for a seamless sound
Includes four 5-1/4″ drivers utilizing the focused-field magnet structure developed for the Triton Reference
Unique linear-phase crossover network

TECHNICAL SPECS

Dimensions:35˝ (88.9 cm) W x 5-3⁄4˝ (14.6 cm) H x 11˝ (28 cm) D
Weight: Product: 31 lbs (14 kg) / Shipping: 38 lbs (17.2 kg)
Frequency Response: 33 Hz – 35 kHz
Efficiency: 91DB
Nominal Impedance: 8 Ohms
Drivers:

Four – 5-1/4˝ Cast-Basket Mid/Bass Drivers
One – High-Gauss Reference HVFR™ High-Velocity Folded
Ribbon High-Frequency Radiator
Two – 6-3/4˝ x 8˝ Quadratic Planar
Low-Frequency Radiators
One – 7˝ x 10˝ Quadratic Planar
Low-Frequency Radiator
