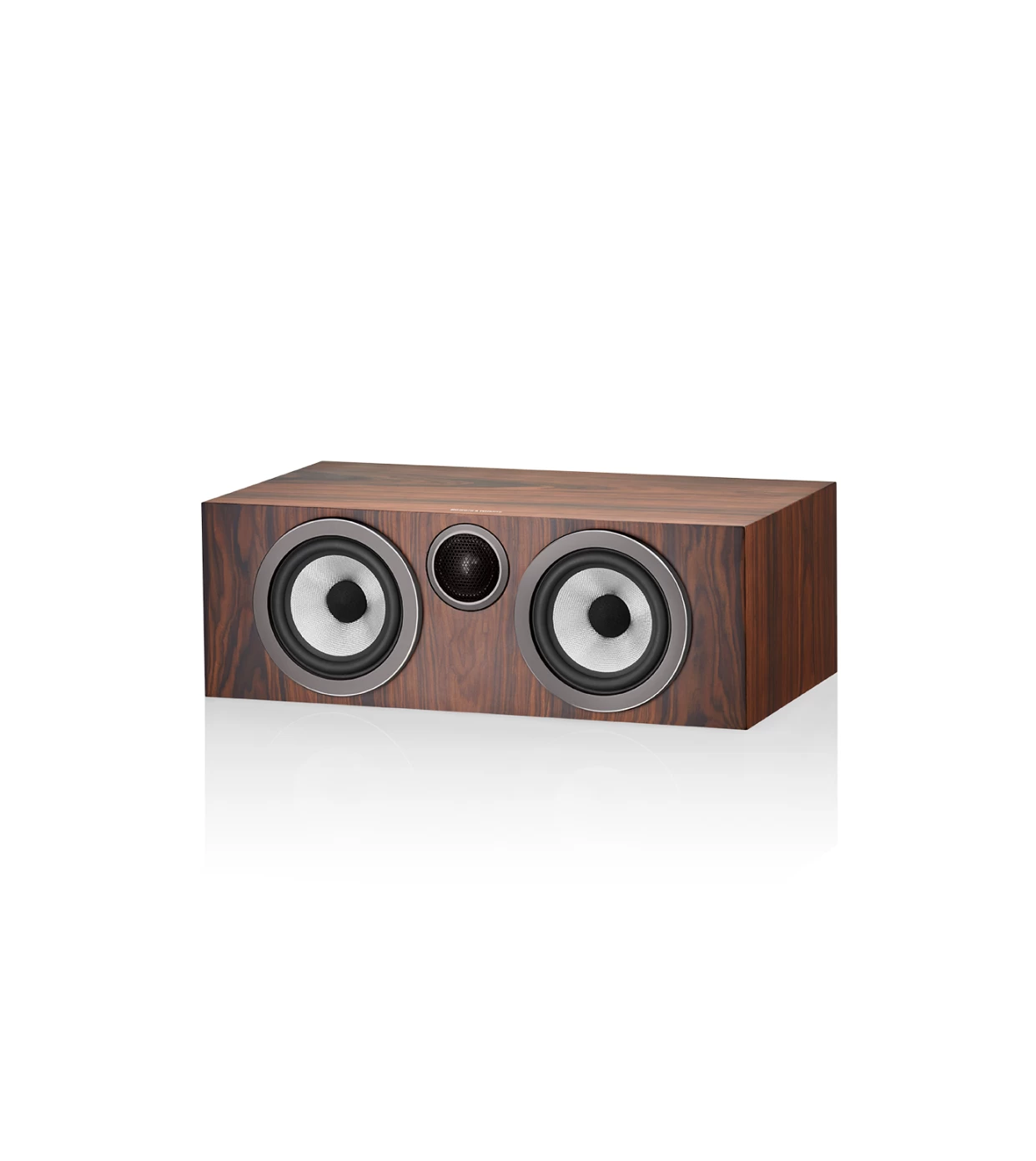

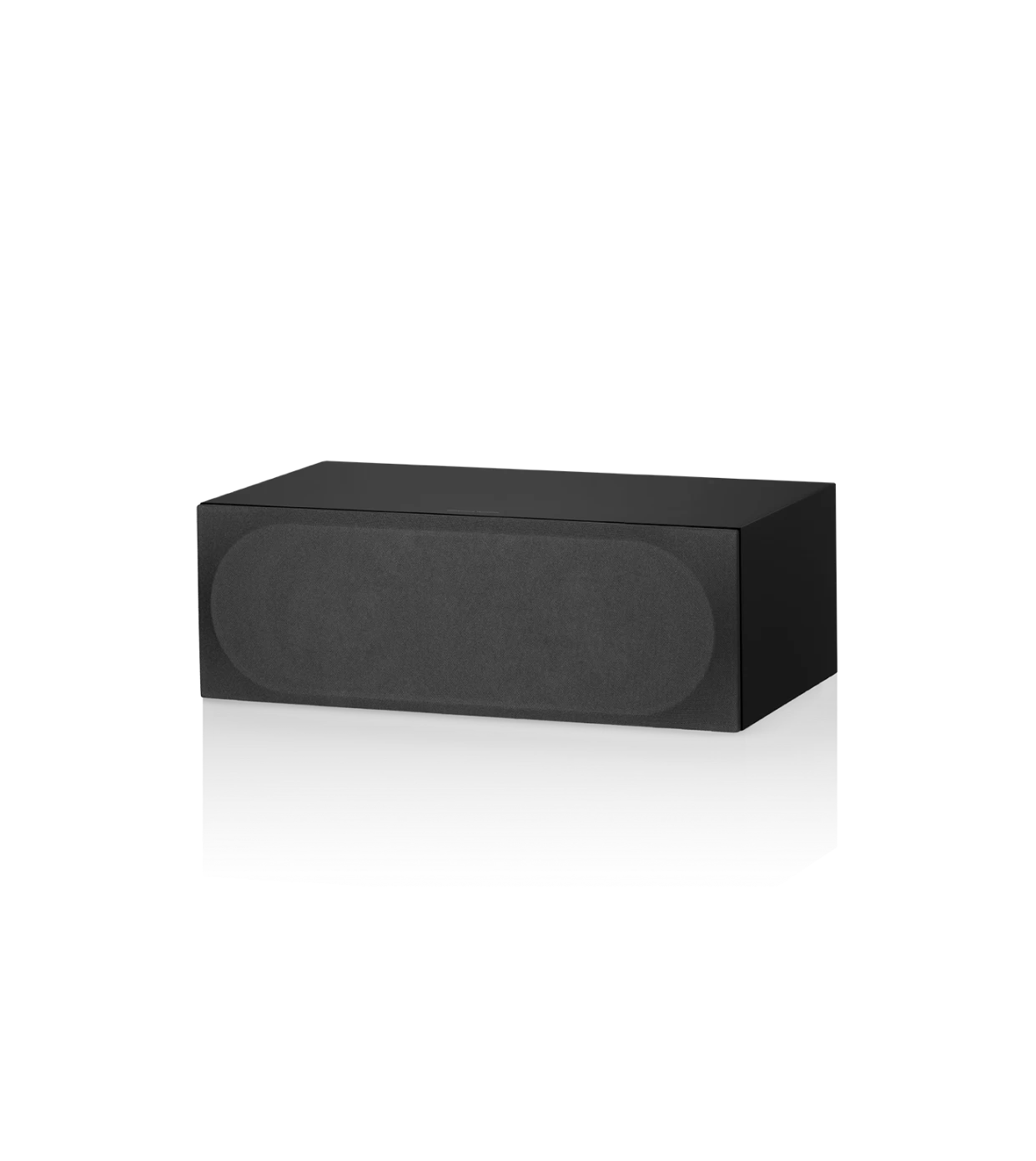

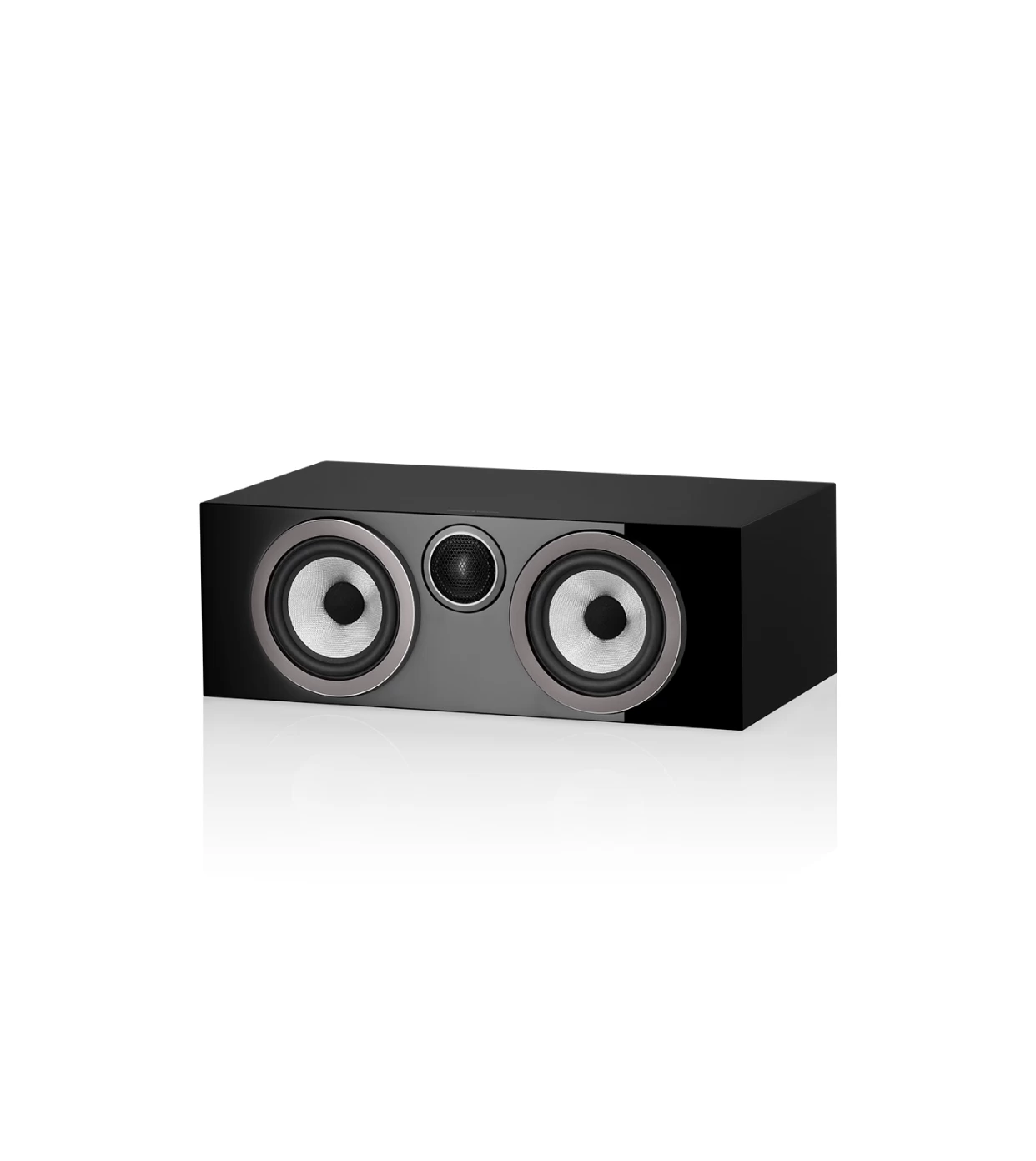

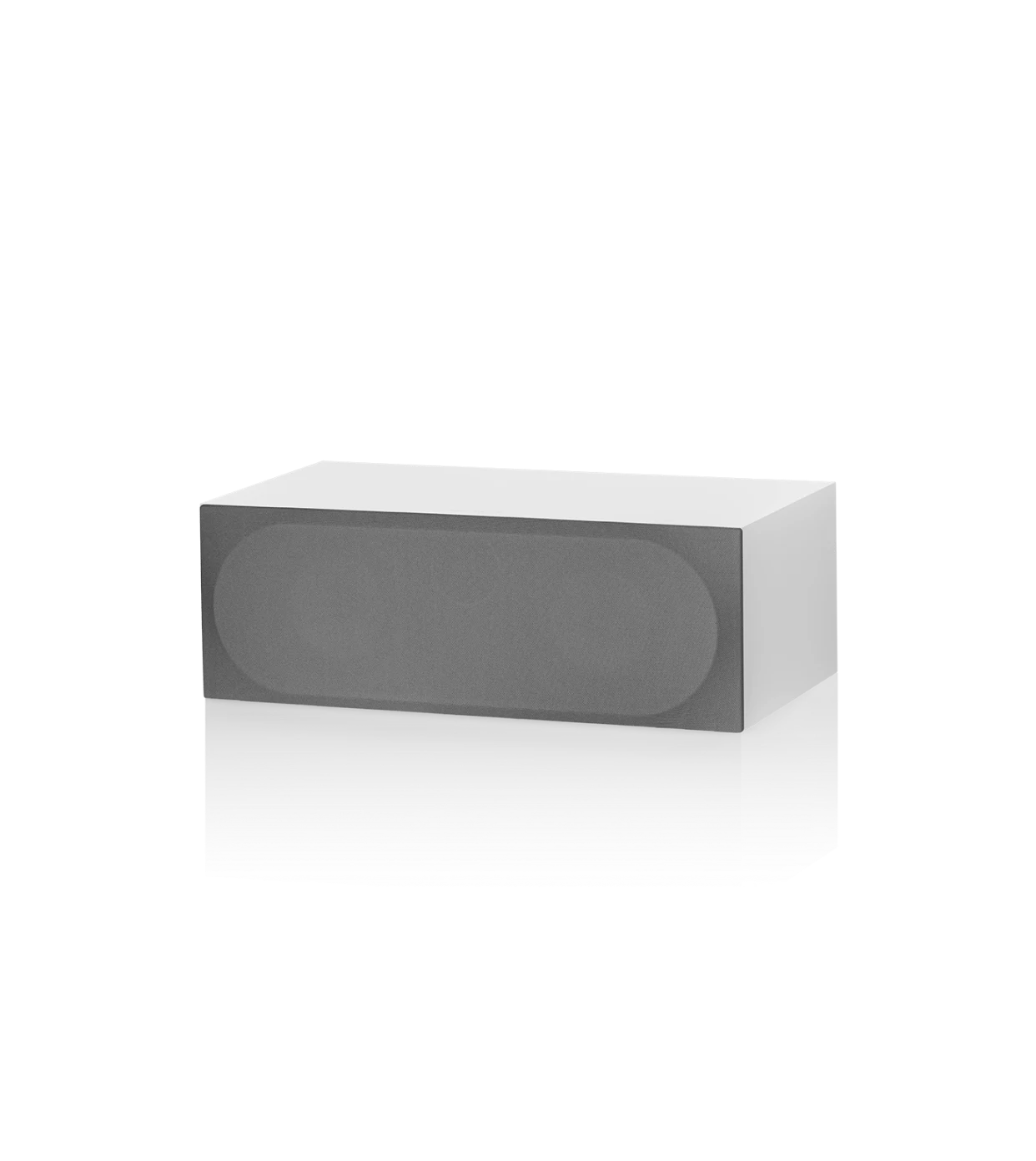

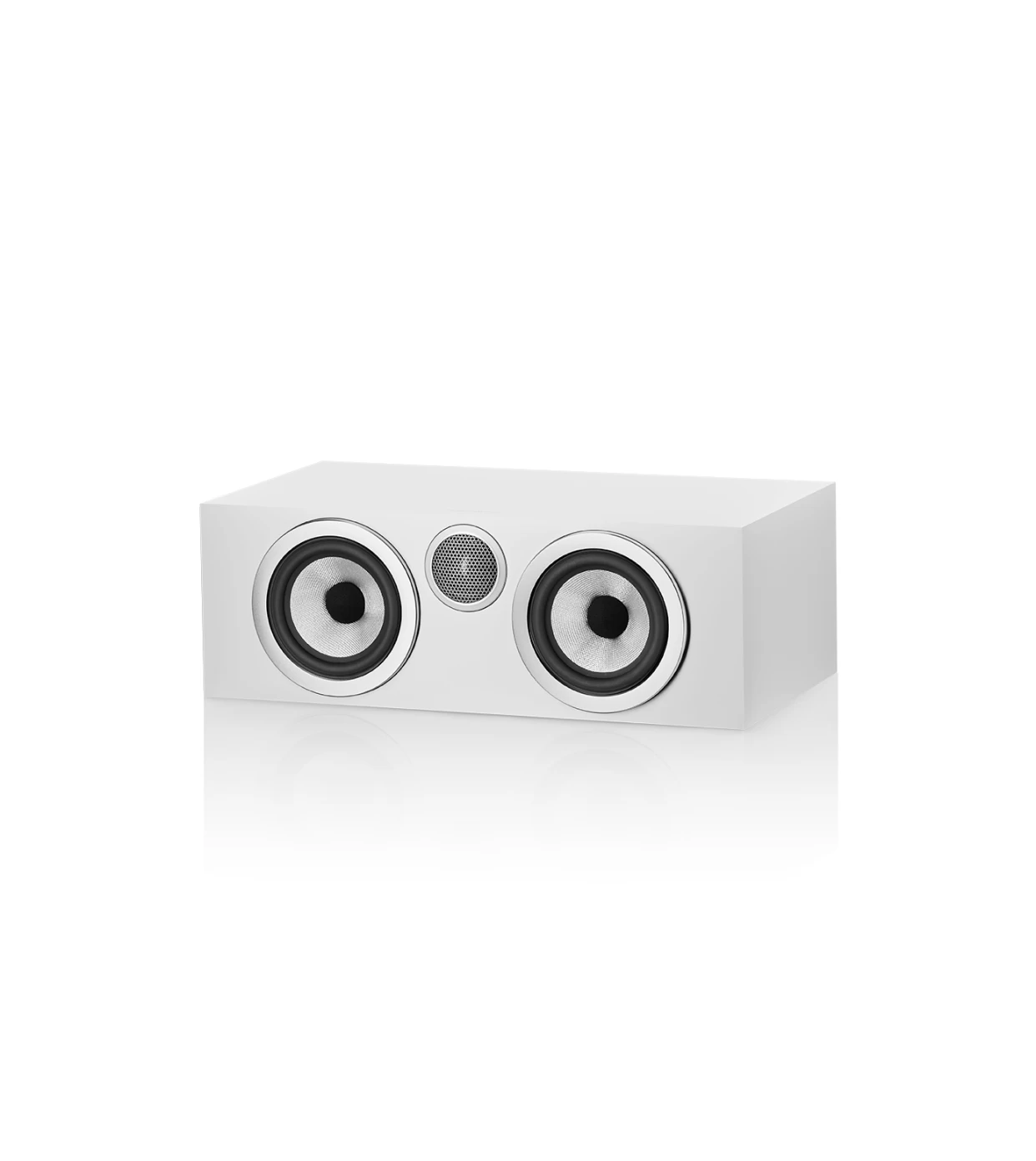

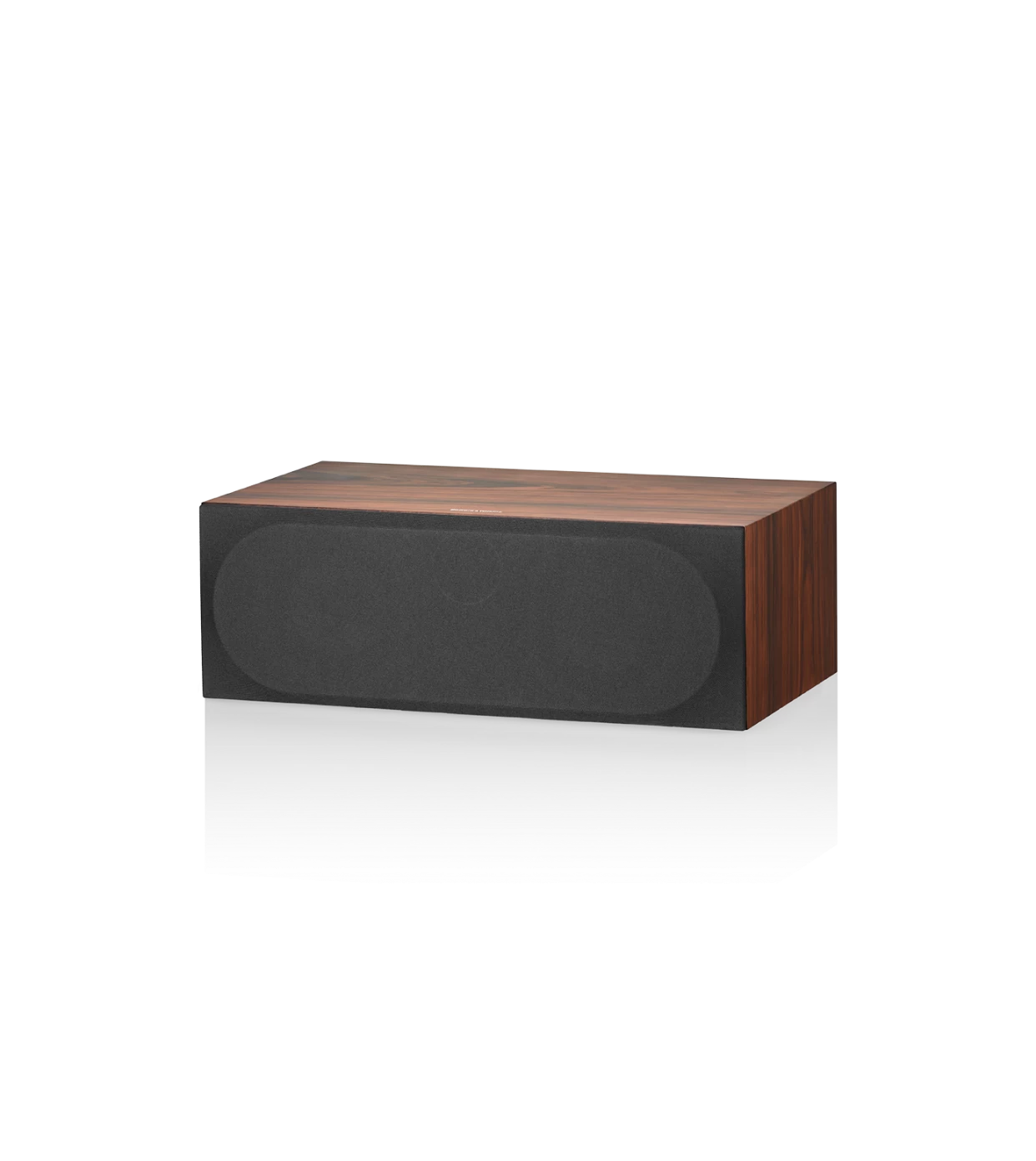

HTM72 S3 is the more compact center-channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. It’s the perfect partner for a home theater system based around the 704 S3, 706 S3 or 707 S3.

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

FEATURES

Decoupled Carbon Dome tweeter
Continuum™ cone bass / midrange
Flowport™

TECHNICAL SPECS

Drive units

1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
2x ø130mm (5 in) Continuum cone bass / midrange

Frequency range: 48Hz and 33kHz
Frequency response: 70Hz – 28kHz ±3dB
Sensitivity: 87dB spl (2.83Vrms, 1m)
Harmonic distortion

2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz – 22kHz
<0.5% 200Hz – 22kHz

Nominal impedance: 8Ω (minimum 4.3Ω)
Recommended amplifier power: 30W – 120W into 8Ω on unclipped programme
Max recommended cable impedance: 0.1Ω
Dimensions

Height: 165 mm (6.5 in) cabinet only
Width: 477 mm (18.8 in) Cabinet only
Depth: 266 mm (10.5 in) Cabinet only, 302 mm (11.9 in) including grille and terminals
