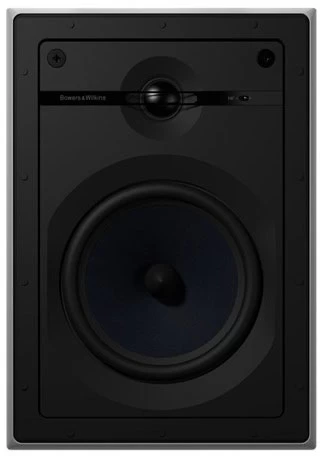

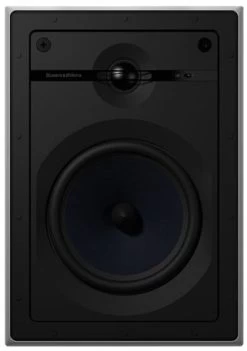

Bowers & Wilkins CWM 663 In-Wall Speaker (Each)

The CWM663 features a blue Aramid fiber bass/midrange driver housed in a die-cast chassis which provides the extra rigidity to provide a cleaner, faster bass. It’s aluminum tweeter also incorporates a Nautilus™ tube to absorb unwanted sonic radiation. The CWM663 also utilizes a three-position high-frequency switch to fine-tune the sound. The speaker is incredibly easy to install incorporating QuickDogs™ and plug-and-play functionality.

TECHNICAL SPECS

• Description: 2-way in-wall system
• Drive units:
• 1x ø25mm (1in) Nautilus™ tube loaded aluminium dome tweeter
• 1x ø150mm (6in) blue aramid fiber cone bass/midrange
• Frequency Range (-6dB): 45Hz – 50kHz
• Recommended Amp Power: 25 – 150w
• Sensitivity SPL (2.83V, 1m): 88dB
• Impedance Nominal (min): 8 Ohm (4.5 Ohm)
• Frame Height: 12.4″
• Frame Width: 8.7″
• Cut-out Height: 11″
• Cut-out Width: 7.2″
• Depth Behind Surface: 3.7″
• Protrusion: 0.2″
