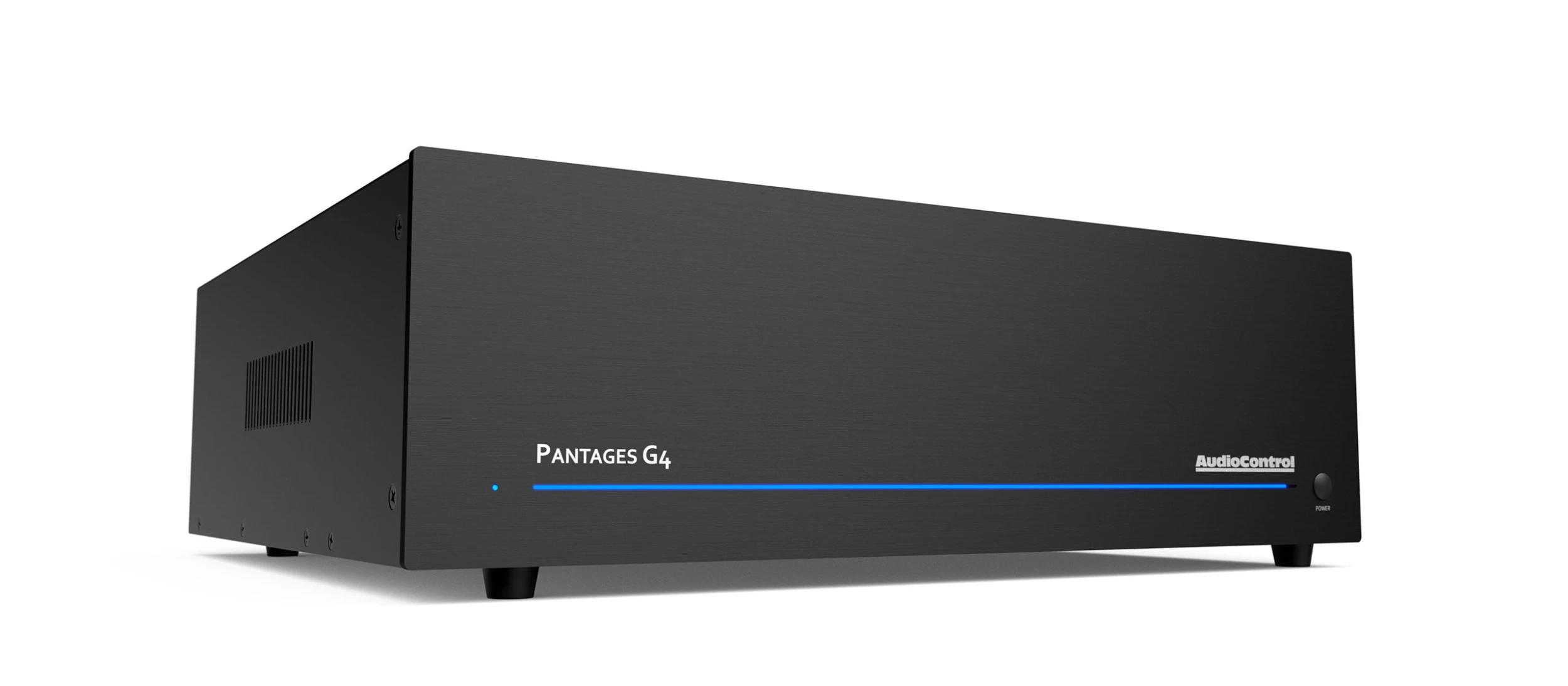

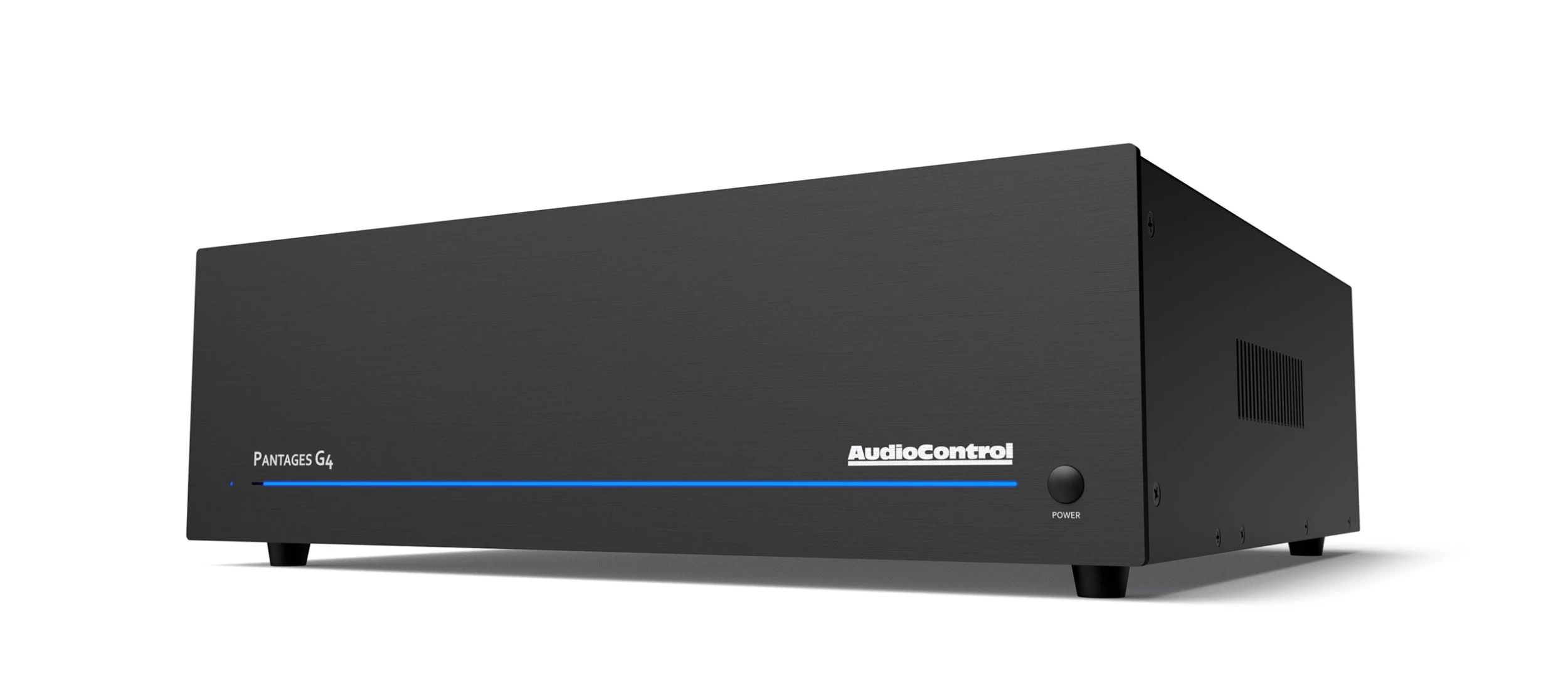

AudioControl Pantages G4 5 Channel Power Amplifier

Built from a legacy of respected premium power amplifiers, AudioControl’s G4 series amplifiers offer effortless power and efficiency, delivering impressively dynamic and detailed audio across all channels.

Incorporating AudioControl’s unique, highly efficient, and cool-running Class H design, the Pantages G4 power amplifier achieves 230 watts per channel at 8 ohms and 300 watts per channel at 4 ohms, all channels driven. The Pantages G4 can also be configured for 600 watts at 8 ohms bridged on select channels to facilitate flexible configurations well beyond powering surround channels. AudioControl’s LightDrive™ built-in anti-clipping protection circuit safely eliminates any possibility of speaker-damaging clipping and distortion, even in extreme conditions.

FEATURES

• Five channel home theater amplifier
• Multi-mode operation: 5 channel, 3.1 channel, 3 channel
• 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
• 600 watts at 8 ohms bridged on select channels
• Stable into low impedances
• Stereo/mono operation
• Unparalleled Energy Efficiency
• High Definition BiMOS Outputs
• Cool Running Class H Operation
• LightDrive Anti-Clipping Protection Circuitry
• 5-way Binding Posts
• Unbalanced RCA inputs with pass through
• Balanced XLR Inputs
• Bullet-Proof Reliability
• Remote 12 volt Trigger

TECHINCAL SPECS

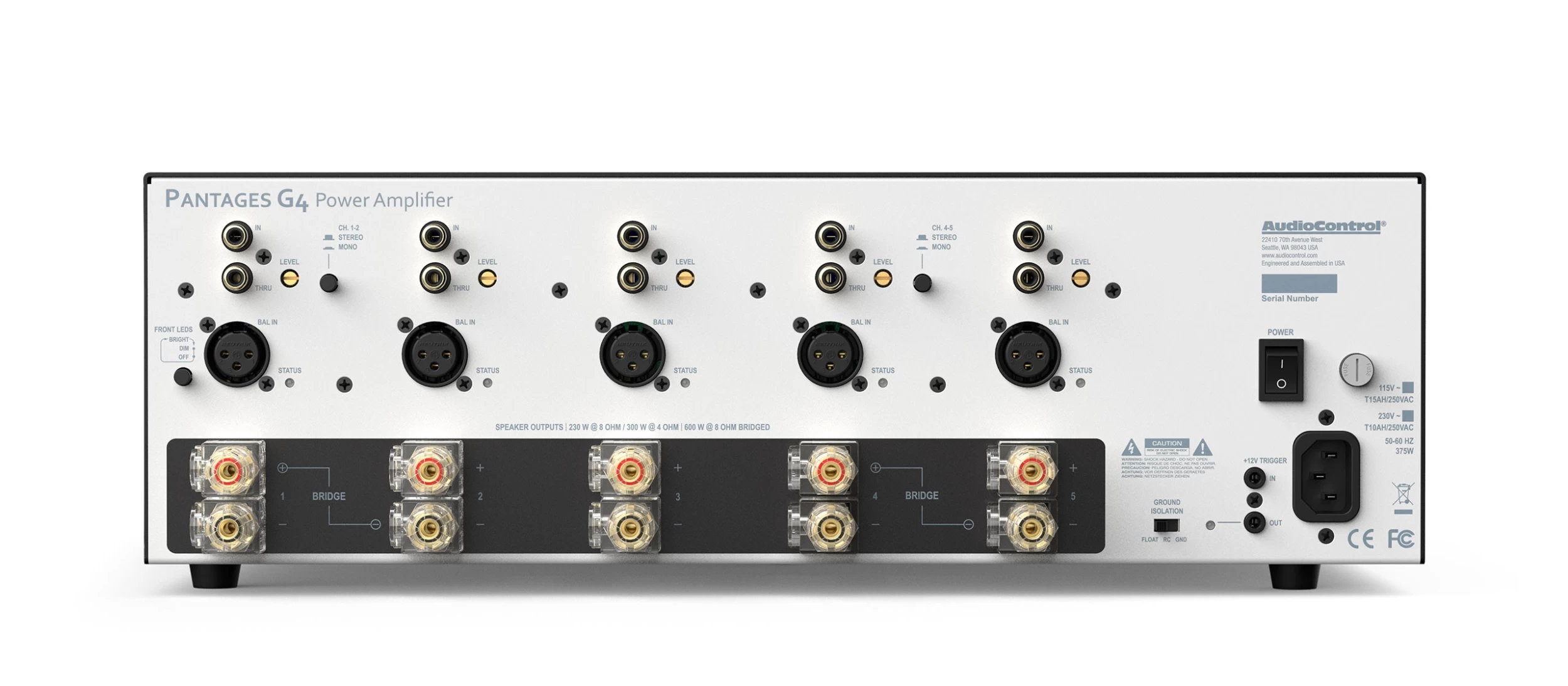

• Inputs
• Inputs: 5 RCA Unbalanced, 5 XLR Balanced
• Input Sensitivity: 1.42 Vrms for full output
• Maximum Input Voltage: 2.7 Vrms
• Input Impedance: 100 kΩ
• Outputs
• Amplifier Channels: 5
• Power Output (8Ω): 230 watts per channel
• Power Output (4Ω): 300 watts per channel
• Power Ouput (8Ω Bridged Mono): 600 watts
• Minimum Speaker Load: 4Ω
• Performance
• Damping Factor: >450
• Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz)
• Signal to Noise: >102dB, A-wtd ref Full Output
• Frequency Response: 10 Hz -20 kHz, ±1 dB
• Remote Power Trigger: +12 VDC or Dry Contact Closure
• Power Consumption (Standby): < 2W
• Power Consumption (Idle): 38W
• Power Consumption (loud listening level): 263W
• Power Consumption (maximum): 1500W
• BTU/Hour Output (Standby): 5.6 BTU/hr
• BTU/Hour Output (Idle): 129 BTU/hr
• BTU/Hour Output (1/8th power, loud listening level): 313 BTU/hr
• BTU/Hour Output (maximum): 1791 BTU/hr
• Protection: clipping, short circuit, thermal, DC offset
• Dimensions: 17”W x 16.5”D x 5.25”H (3U)
• Weight: 41.0 lbs (18.6 kg)
